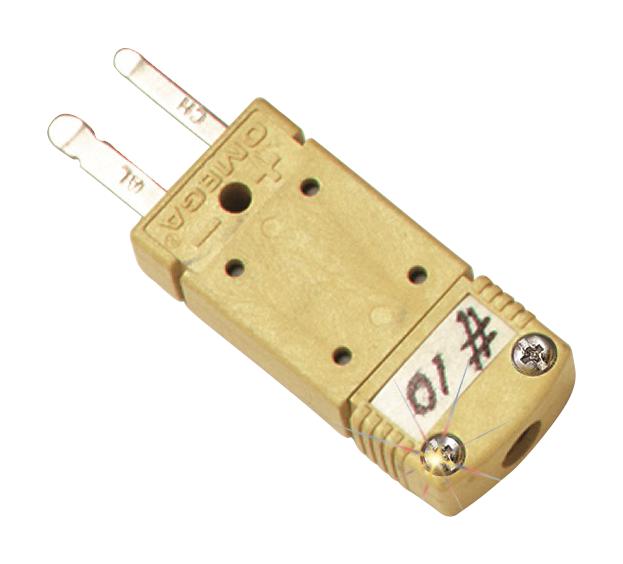

OMEGA HMPWKM Thermocouple Connector
The HMPW series liquid crystal polymer thermocouple connector is designed for connecting temperature sensors to instrumentation, controllers, or process automation panels. It features a compact 2-pin flat design, Type K male connector with a yellow shell, captive cover screws, and can accept stranded or solid wires up to 20 AWG. Equipped with quick connect contact washers and an internal wire divider, it supports service temperatures up to 260°C, ensuring durability in high-temperature industrial environments. Its environmentally friendly construction and removable/reversible write-on window facilitate easy installation and identification.
OMEGA HMPWKM Thermocouple Connector Specifications:
- Service Temperature: -29 to 260°C (-20 to 500°F)
- Material: Liquid Crystal Polymer
- Connector Type: Type K male, yellow shell
- Wire Range: Up to 20 AWG (stranded or solid wire)
- Construction: Heavy duty, mini size, flat 2-pin design
- Features: Captive cover screws, quick connect contact washers, internal wire divider
- Environmental: High temperature resistance, environmentally friendly
- Additional: Reversible write-on window at no extra charge
- Dimensions: Compact size, actual size matching miniature connectors
- Certifications: Suitable for industrial temperature sensing applications
Buy the OMEGA HMPWKM – Reliable Thermocouple Connector for Industrial Applications
Order the high-performance thermocouple connector online today and ensure precise temperature measurement with durability in tough industrial environments. Designed for Type K sensors, it accepts wires up to 20 AWG and supports temperatures up to 260°C. With heavy-duty construction, captive cover screws, quick connect contact washers, and a reversible write-on window, this compact connector simplifies installation and identification. Perfect for instrumentation, process control, and automation panels. Get yours now for reliable, long-lasting temperature sensing solutions.
Buy OMEGA HMPWKM now and experience unmatched reliability and performance in high-temperature industrial temperature sensing.
Frequently Asked Questions
Where can I buy OMEGA HMPWKM?
You can click on the BUY or RFQ button to purchase HMPWKM from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part HMPWKM?
You can download the HMPWKM datasheet or visit the OMEGA website for support.
Who is the manufacturer of HMPWKM?
OMEGA
