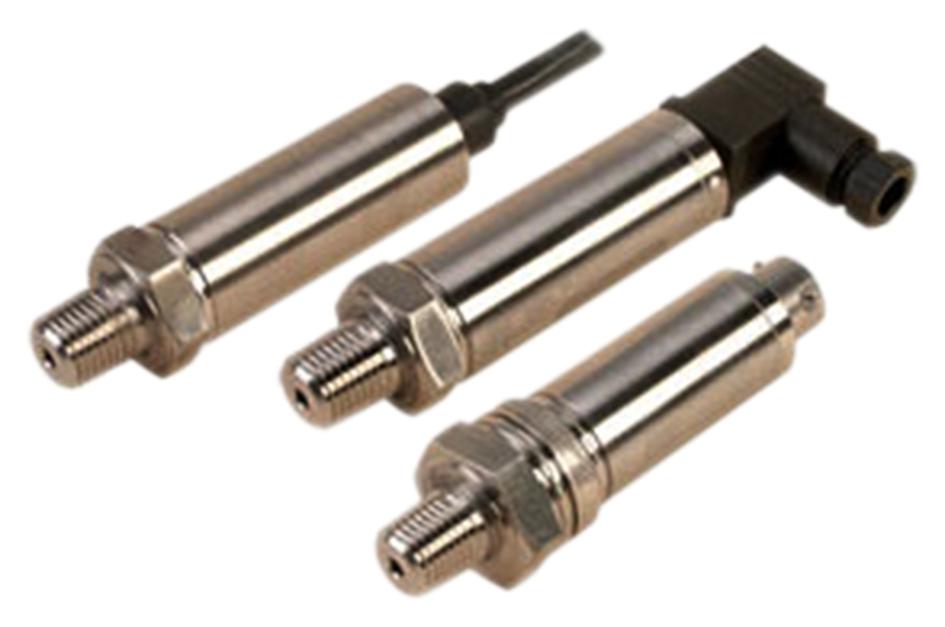

OMEGA PX409150GVXL Pressure Transducer
High accuracy stainless steel pressure transducer offering bi-directional measurement of positive and negative gage pressure across multiple ranges. Features include 0.08% maximum combined linearity, hysteresis, and repeatability, with broad temperature compensation from -29°C to 85°C, andSpan accuracy of +0.5% FS. Suitable for tough industrial environments with fast <1 ms response time, IP67 or IP65 ratings, and 400% proof pressure. Options include various electrical terminations like integral cable, mini DIN, twist-lock, and M12 connectors, with calibration and external accessories available.
OMEGA PX409150GVXL Pressure Transducer Specifications:
- Output options: 0-10 mV/V, 0-5 Vdc, 4-20 mA
- Power requirements: 5-30 Vdc, 9-30 Vdc, 10-30 Vdc depending on output
- Accuracy: +0.08% BSL max, zero balance +0.5% FS, span setting +0.5% FS
- Operating temperature: -45 to 121°C, -45 to 115°C for voltage/current outputs
- Temperature compensation: -29 to 85°C for >5 psi ranges, -17 to 85°C for <5 psi ranges
- Proof pressure: 10 inHg to 6 times full scale, burst 1000-3000 psi depending on range
- Environmental protection: IP67 or IP65, stainless steel wetted parts, pressure port 1-18 NPT
- Response time: less than 1 ms, vibration: 5-2000 Hz, shock: 50 g, 11 ms
- Weight: 115 to 200 grams depending on model, calibration included
Buy the High Accuracy Series Pressure Transducer: PX409150GVXL
Order the high accuracy stainless steel pressure transducer PX409150GVXL online today for reliable, industrial-grade pressure measurement. Designed with bi-directional capabilities, fast response time, and broad temperature compensation, this transducer offers precise readings in tough environments. Perfect for applications requiring ±0.08% accuracy, IP67 or IP65 protection, and various output options including mV/V, Vdc, and 4-20 mA. With calibrated certification and stainless steel wetted parts, it ensures stability and durability for your industrial needs. Purchase now for quick delivery and excellent performance.
Get High Accuracy Series Pressure Transducer PX409150GVXL today—built for precision and long-lasting durability.
