OMEGA LC20125 Tension Compression Load Cell
The LC201 Series subminiature load cells are ideal for industrial automation and robotic applications, featuring a 19 mm diameter, all stainless steel construction, and a compact design. They provide high accuracy with +1.0% FSO linearity, hysteresis, and repeatability, and include a 5-point calibration for tension measurements from 0-25 Ib to 0-300 Ib, or 0-100 to 0-500 N. Designed with dual mounting studs, they are protected to IP54, operate in temperatures from -54°C to 121°C, and are supplied with NIST traceable calibration data, making them reliable in demanding environments.
OMEGA LC20125 Tension Compression Load Cell Specifications:
- Diameter: 19 mm (0.75")
- Material: Stainless steel
- Excitation: 10 Vdc, 15 Vdc max
- Output: 2 mV/V nominal
- Accuracy: +1.0% FSO linearity, hysteresis, repeatability
- Calibration: 5-point in tension (0%, 50%, 100%, 50%, 0%)
- Zero Balance: +2% FSO
- Operating Temp Range: -54 to 121°C (-65 to 250°F)
- Compensated Temp Range: 16 to 71°C (60 to 160°F)
- Protection Class: IP54
- Thermal Zero and Span Effects: 0.018% FSO/°C
- Overload Capacity: 150% of capacity, Ultimate Overload: 300%
- Input Resistance: ≥360 Ω
- Output Resistance: ~350 Ω
- Cable Length: 1.5 m (5 ft), 4-conductor shielded
- Dimensions: Approx. 14.28 mm UNF thread (TYP.), 4.5 m cable
- Includes: NIST traceable calibration and shunt data

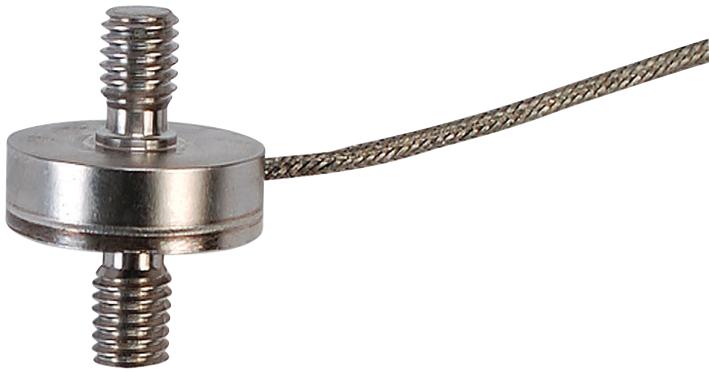

Buy the Omega Series L€201/LEM201 Tension/Compression Load Cells: LC20125
Experience reliable and precise force measurement with Omega's compact stainless steel tension and compression load cells. Designed for industrial automation and robotics, they offer high accuracy (+1.0% FSO), durable IP54 protection, and easy installation with dual mounting studs. Each load cell comes with traceable calibration and temperature compensation features, enabling consistent performance in harsh environments from -54°C to 121°C. Ideal for small-space applications, these load cells ensure dependable operation for long-term use in demanding industrial and robotic settings.
Get Omega Series L€201/LEM201 tension and compression load cells today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA LC20125?
You can click on the BUY or RFQ button to purchase LC20125 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC20125?
You can download the LC20125 datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC20125?
OMEGA
