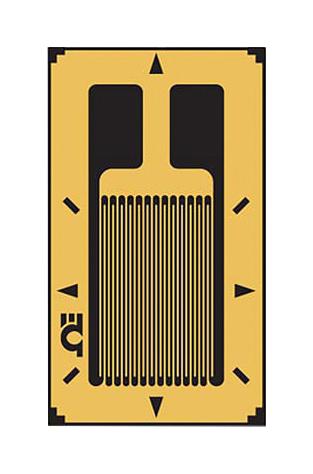

OMEGA SGD3350LY11 Precision Strain Gage
The SGD Series precision linear strain gages are designed for static and dynamic stress measurement, offering high flexibility and mechanical strength with small bending radius. Constructed with etched constantan foil sealed in polyimide, these gages include linear patterns in various sizes and styles, suitable for measuring in high-gradient or stress concentration areas. They feature ribbon leads or solder pads, clear alignment marks, and are compatible with cold or hot curing adhesives, making them ideal for experimental stress analysis and inhomogeneous materials.
OMEGA SGD3350LY11 Precision Strain Gage Specifications:
- Pattern: Linear, various sizes (3.00 mm to 50.00 mm grid length)
- Material: Etched constantan foil sealed in polyimide carrier
- Temperature Range: Broad temperature performance (specific range not provided)
- Termination: Ribbon leads or solder pads
- Alignment Marks: Clear for accurate placement
- Maximum Bridge Voltage: 120 Vrms to 1000 Vrms (depending on model)
- Carrier Dimensions: Varying from 3.00 mm to 50.00 mm grid length, specific carrier sizes included
- Compensation: Steel (ST), Aluminum (AL), Uncompensated (UNC)
- Wiring: Various pattern styles, suitable for static and dynamic applications
- Sealing: Fully sealed for rugged, high-accuracy measurement
- Applications: Stress analysis, high gradient areas, experimental stress testing
Buy the Buy Omega SGD Precision Strain Gages Part Number SGD3350LY11 Online
Purchase the Omega SGD Series precision linear strain gage SGD3350LY11 online now to benefit from advanced stress measurement technology. Designed for static and dynamic applications, these gages feature flexible construction with small bending radius, ensuring accurate data in high-gradient and stress-concentrated zones. Their sealed constantan foil grid, available with ribbon leads or solder pads, provides reliable performance across broad temperature ranges. Ideal for experimental stress analysis, inhomogeneous materials, and high-accuracy static or dynamic measurement needs, these durable gages support efficient industrial and laboratory projects.
Order your Omega Series SGD strain gage SGD3350LY11 today and ensure highly accurate stress measurement with flexible, rugged design for static and dynamic testing.
Frequently Asked Questions
Where can I buy OMEGA SGD3350LY11?
You can click on the BUY or RFQ button to purchase SGD3350LY11 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SGD3350LY11?
You can download the SGD3350LY11 datasheet or visit the OMEGA website for support.
Who is the manufacturer of SGD3350LY11?
OMEGA
