OMEGA HTTG1CU312S100 High-Temperature Heater Wire

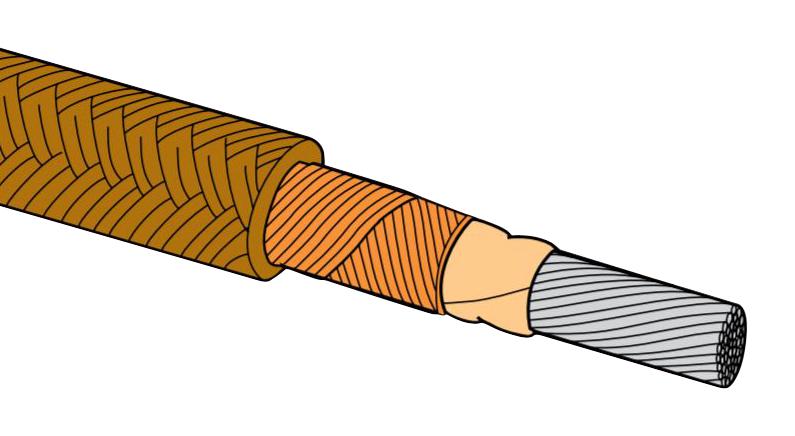

The HTTG series glass insulated high-temperature heater hook-up wire is designed for demanding electrical and heating applications. Rated for up to 250°C (482°F), it features UL and CSA certification, with a single-stranded nickel-plated copper conductor protected by PFA tape, glass insulation, and a PFA-treated glass overbraid. The wire demonstrates excellent mechanical toughness, flexibility, and moisture resistance, making it suitable for ovens, kilns, heaters, and similar equipment. Its robust construction ensures durability, chemical inertness, and reliable electrical performance in high-temperature environments.
OMEGA HTTG1CU312S100 High-Temperature Heater Wire Specifications:
- Conductor Material: Nickel-Plated Copper
- Insulation: PFA Tape and Glass, with PFA Treated Glass Overbraid
- Temperature Rating: 250°C (482°F)
- Voltage Rating: 300V or 600V depending on model
- Gage Sizes: 16, 18, 20, 22, 10, 12, 14, 8 AWG
- Nominal Outer Diameter: 2.0 mm to 5.8 mm (0.08 to 0.23 inches)
- Weight per 300 meters: 3.4kg to 32.9kg
- Certification: UL Listed, CSA Certified
- Color: Natural (Tan)
- Application: Heating equipment, ovens, kilns, band, strip and cartridge heaters
- Features: Excellent flexibility, mechanical toughness, moisture resistant, chemically inert, heat stable
Buy the Buy OMEGA HTTG Series Heater Hook-Up Wire Part Number HTTG1CU312S Online
Purchase OMEGA high-temperature heater wire online today for reliable performance in demanding environments. Crafted with glass insulation and PFA coating, this certified wire withstands temperatures up to 250°C. Its robust construction ensures durability, flexibility, and resistance to moisture and chemicals, making it ideal for ovens, kilns, and heating appliances. Choose from various gauges to meet your specific needs, and enjoy fast, secure online ordering. Ensure optimal operation and safety with OMEGA's quality heater hook-up wire—available for quick delivery now.
Get OMEGA HTTG series heater hook-up wire today—designed for high-temperature environments, offering durability, flexibility, and certified safety.
Frequently Asked Questions
Where can I buy OMEGA HTTG1CU312S100?
You can click on the BUY or RFQ button to purchase HTTG1CU312S100 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part HTTG1CU312S100?
You can download the HTTG1CU312S100 datasheet or visit the OMEGA website for support.
Who is the manufacturer of HTTG1CU312S100?
OMEGA
