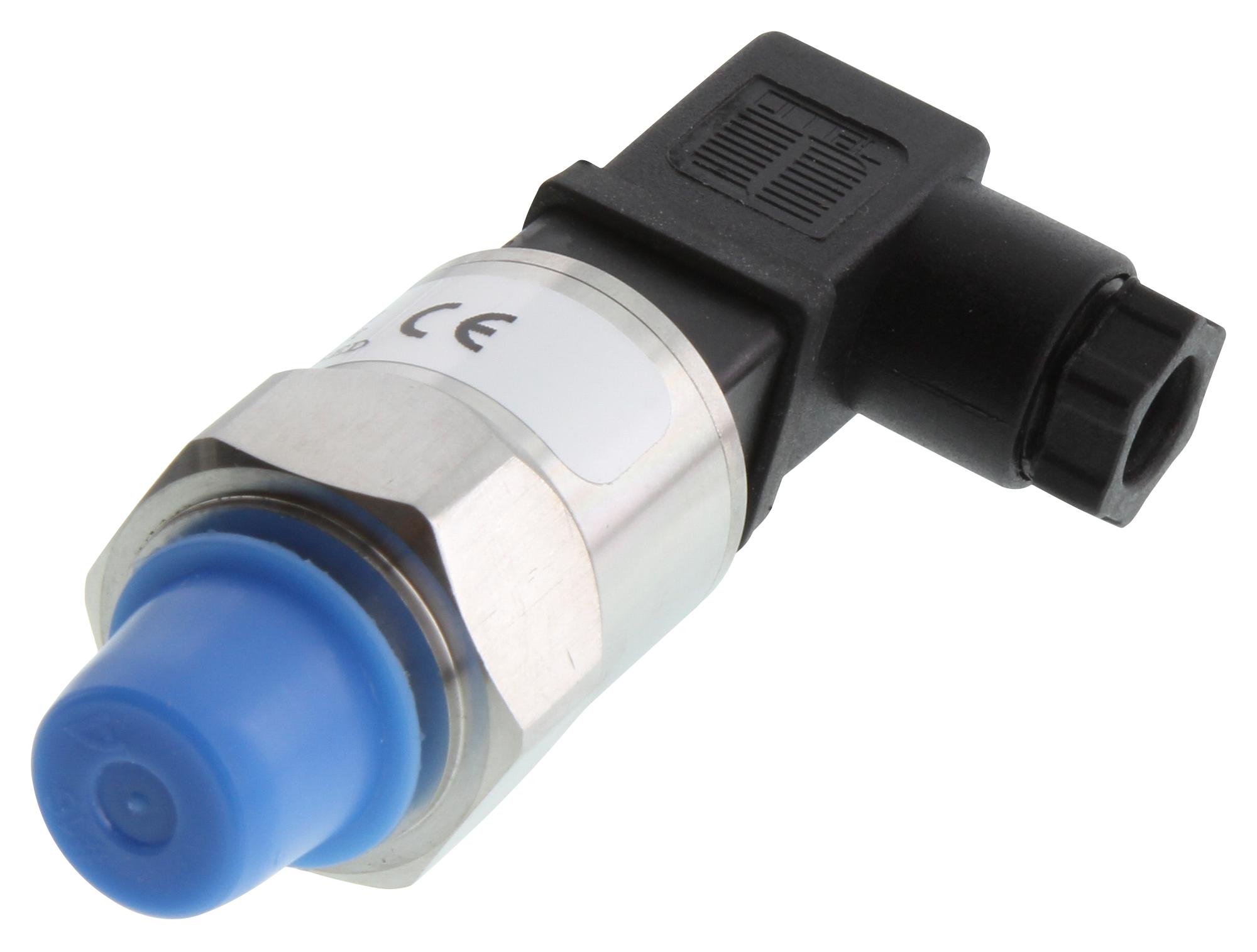

OMEGA PX119150AI Pressure Transmitter
The PX119 series pressure transmitters are compact, rugged devices designed to measure pressure from 15 to 5000 psi (345 bar). Crafted from stainless steel, they provide high accuracy of 0.50% BFSL, with a built-in piezoresistive ceramic sensor and ASIC signal conditioning. Suitable for industrial, mobile, and material handling applications, these transmitters feature a small size for space-constrained environments, with a DIN connector, IP65 ingress protection, and a 1 ms response time. They operate from 4 to 20 mA output, with long-term drift under 0.3% FS at 25°C, ensuring precise, reliable measurement in demanding conditions.
OMEGA PX119150AI Pressure Transmitter Specifications:
- Pressure Range: 15 to 5000 psi (345 bar)
- Output: 4 to 20 mA
- Body Material: All Stainless Steel
- Accuracy: 0.50% BFSL
- Response Time: 1 ms
- Ingress Protection: IP65
- Operating Temperature: -40°C to 135°C (-40°F to 257°F)
- Vibration Resistance: Suitable for industrial environments
- Electrical Connection: Mini DIN connector, DIN 43650
- Construction: Machined from a single piece of stainless steel
- Long Term Drift: <0.3% FS at 25°C
- Thermal Error: Oto 15 psi 0.01% FS/°F, 100 psi > 400 psi 0.009% FS/°F
- Weight: 70 g (0.15 lb)
Buy the Buy OMEGA Pressure Transmitters Part Number PX119150AI Online
Purchase the OMEGA pressure transmitter PX119150AI online and experience reliable, high-accuracy pressure measurement for industrial, mobile, and material handling applications. Featuring a compact stainless steel body and a 4-20 mA output, this device ensures precise readings and durability under harsh conditions. Easy to install with DIN connection and IP65 rating, it is ideal for space-constrained environments requiring robust performance. Order now for fast delivery and enhance your measurement system’s reliability and accuracy today.
Get OMEGA PX119150AI today—built for precision and long-lasting durability in demanding measurement environments.
Frequently Asked Questions
Where can I buy OMEGA PX119150AI?
You can click on the BUY or RFQ button to purchase PX119150AI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX119150AI?
You can download the PX119150AI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX119150AI?
OMEGA
