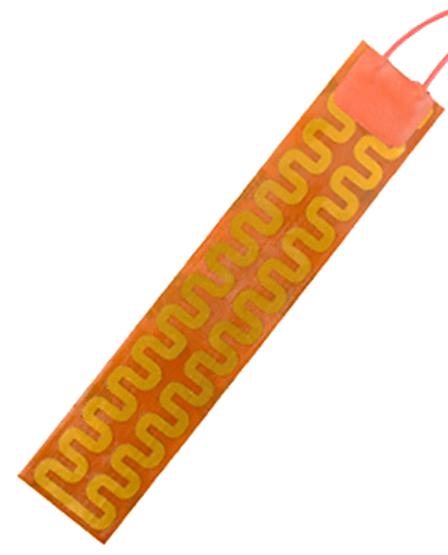

OMEGA KHLVA10510 Polyimide Heater
The KHLVA Series flexible polyimide film heater features a maximum thickness of 0.010 inches, offering high chemical resistance and excellent conformability for various industrial applications. Designed for efficient heat transfer with watt densities of 2.5, 5, or 10 W/in² at voltages of 115, 230, or 28 V, these heaters operate reliably between -40°C to 149°C (with PSA). Equipped with etched foil design and optional pressure-sensitive adhesive, they are suitable for precise heating where flexibility and durability are essential.
OMEGA KHLVA10510 Polyimide Heater Specifications:
- Maximum Thickness: 0.010 inches
- Operating Temperature: -40°C to 149°C (with PSA), -57°C to 150°C (without PSA)
- Watt Density: 2.5, 5, or 10 W/in²
- Voltage Ratings: 115 V, 230 V, 28 V
- Dielectric Strength: 1250 Vac for 1 second
- Bending Radius: 0.032 inches
- Material: Polyimide film with etched foil resistive element
- Chemical Resistance: High
- Conformability: Flexible and easily adaptable to surfaces
- Construction: Encasing Inconel 600 foil element within polyimide film
Buy the Omega Series Polyimide Flexible Heaters: KHLVA10510
Order the Omega Polyimide Heater KHLVA10510 online now to experience superior flexibility, chemical resistance, and efficient heat transfer. Perfect for industrial applications requiring reliable and adaptable heating solutions. This heater features a maximum thickness of 0.010 inches, watt densities of 2.5, 5, or 10 W/in² at voltages of 115, 230, and 28 V. It operates efficiently between -40°C and 149°C, equipped with optional pressure-sensitive adhesive for easy installation. Invest in quality and durability—buy online today.
Get Omega KHLVA10510 today—built for precision and long-lasting durability in industrial heating applications.
Frequently Asked Questions
Where can I buy OMEGA KHLVA10510?
You can click on the BUY or RFQ button to purchase KHLVA10510 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part KHLVA10510?
You can download the KHLVA10510 datasheet or visit the OMEGA website for support.
Who is the manufacturer of KHLVA10510?
OMEGA
