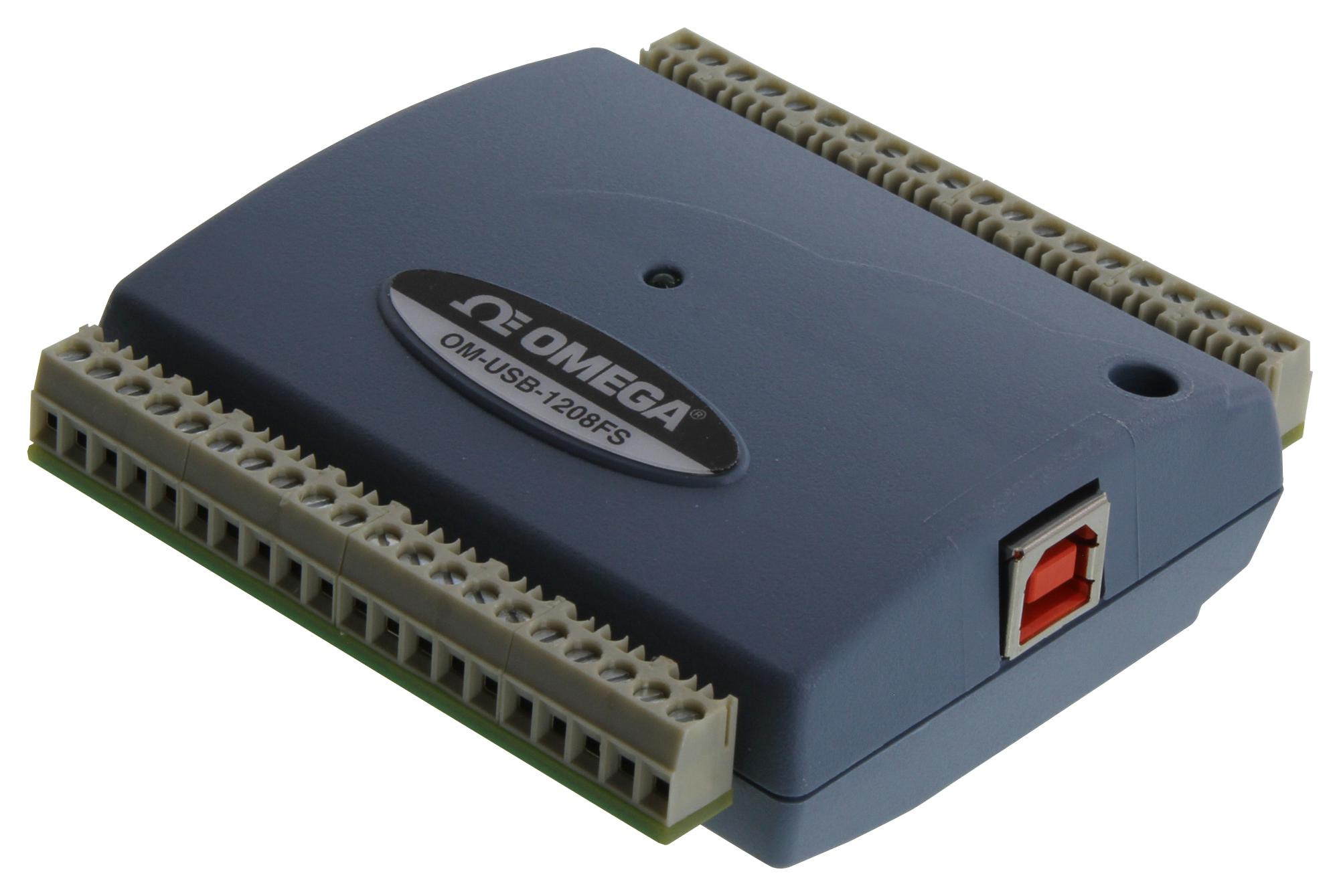

OMEGA OMUSB1208FS Data Acquisition Module
This 12-bit voltage input USB data acquisition module features four differential and eight single-ended analog input channels, sixteen digital I/O lines, and one counter. It includes two 12-bit analog output channels and a 32-bit counter. The device operates without an external power supply. The package contains the data acquisition module, a 1.8-meter (6-foot) USB cable, software, and a user manual on CD.
OMEGA OMUSB1208FS Data Acquisition Module Specifications:
- Analog Input Channels: 8 single-ended or 4 differential, software programmable
- Input Voltage Range: +1V to +20V differential, +10V single-ended, using software selection
- Analog Input Resolution: 12 bits
- Sampling Rate: Max 50 kS/s
- Analog Outputs: 2 channels, 12-bit resolution, OV to 4.096V output range
- Output Update Rate: 10 kS/s for single output, 5 kS/s each for dual outputs
- Digital I/O Lines: 16 TTL-level digital lines, configurable as input or output
- Counter: 32-bit TTL-level, supports up to 1 MHz input frequency
- Power: No external power required, powered via USB 2.0
- Operating Temperature: 0 to 70°C
- Dimensions: 79 mm L x 82 mm W x 27 mm H
- Connector Type: Screw terminal for I/O
- Memory: 1024 bytes EEPROM
- Compatibility: Windows XP, Vista, 7, 8
Buy the Omega Series OM-USB-1208FS: 12-bit Voltage Input USB Data Acquisition Module
Purchase the Omega Series OM-USB-1208FS online today and enhance your measurement projects with this versatile, high-performance USB data acquisition module. Featuring 8 single-ended or 4 differential analog inputs, 16 digital I/O lines, and 2 analog outputs, it offers a maximum sampling rate of 50 kS/s without external power supply. Its compact design, wide input voltage range, and compatibility with Windows operating systems make it ideal for various industrial and laboratory applications. Simplify your data gathering process now.
Order your Omega Series OM-USB-1208FS today and equip your measurement systems with reliable, high-speed data acquisition capabilities.
