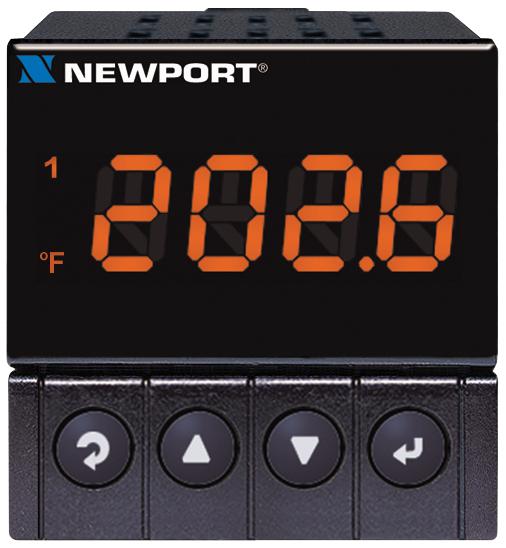

OMEGA CNI1644C24DC DIN Controller
The CNi16 Series DIN temperature, process, and strain controllers offer high-precision, fully programmable devices designed for industrial automation. Featuring color displays, embedded Ethernet connectivity, serial communications, and multiple control and alarm outputs, these controllers provide versatile integration with industrial networks. The units support various input types including thermocouples, RTDs, analog voltage, and current, ensuring accurate temperature and process monitoring. With NEMA 4 (IP65) front bezels, remote access via web servers, and comprehensive configuration software, they enable reliable, real-time process control for demanding environments.
OMEGA CNI1644C24DC DIN Controller Specifications:
- Display: 4-digit 9-segment LED with programmable color indicators
- Inputs: Thermocouple, RTD, analog voltage, analog current, strain gauge
- Thermocouple Types: J, K, T, E, R, S, B, C, N, L
- RTD: 100/500/1000 Ω, 2-, 3-, 4-wire, 0.00385/0.00392 curve
- Voltage Input: 0-100 mV, 0-1 V, 0-10 V with 10 MΩ impedance
- Current Input: 0-20 mA, unipolar, single-ended
- Control: Manual or auto PID, on/off, proportional, ramp, soak
- Outputs: Relay (3 A resistive), SSR (0.05-0.5 A), DC pulse, analog voltage/current
- Communication: Ethernet (IEEE 802.3), RS232, RS485/422 with MODBUS and ASCII
- Power: 90-240 Vac ±10%, 50-400 Hz; optional low voltage 24 Vac or 12-36 Vdc
- Environmental: Operating from 0°C to 55°C (32°F to 131°F), 90% RH non-condensing
- Certifications: UL, C-UL, CE, FM (temperature units only)
- Enclosure: NEMA 4X/IP65 front bezel, modular electronics
- Dimensions: 48 H x 96 W x 127 mm D (i/8 Series), panel cutouts 45 x 92 mm
- Isolation: Power to Input/Output 2300 Vac, relay to relay 2300 Vac
Buy the Buy Omega DIN Temperature Process Controller Part Number CNI1644C24DC Online
Purchase the Omega DIN Controller CNI1644C24DC online today to ensure precise temperature and process management in industrial systems. Featuring full programmability, multiple input options, Ethernet connectivity, and robust NEMA 4X/IP65 protection, this controller simplifies integration into critical applications. Its advanced digital filters, comprehensive communications—including Ethernet, RS232, and RS485—ensure seamless data acquisition and remote control. Ideal for automation, it delivers high accuracy, user-friendly setup, and durable construction, making it the perfect solution for reliable, real-time industrial process control.
Order your Omega Series CNI1644C24DC temperature and process controller today and experience reliable industrial control for demanding environments.
Frequently Asked Questions
Where can I buy OMEGA CNI1644C24DC?
You can click on the BUY or RFQ button to purchase CNI1644C24DC from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CNI1644C24DC?
You can download the CNI1644C24DC datasheet or visit the OMEGA website for support.
Who is the manufacturer of CNI1644C24DC?
OMEGA
