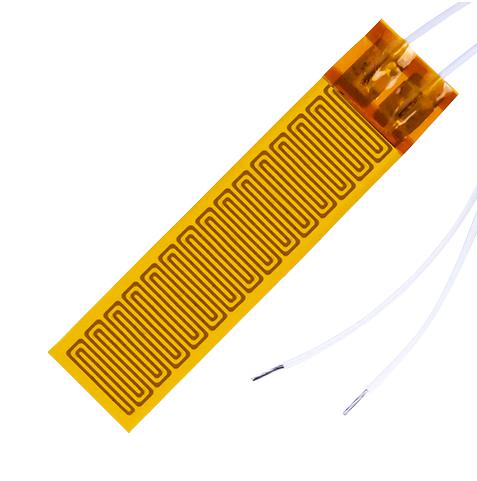

OMEGA PLMLV1035 Polyimide Heater
The PLM-Series polyimide flexible heaters are versatile heating solutions designed for smooth installation on curved surfaces. These heaters feature chemically resistant polyimide insulation, ensuring durability across various applications. They are available in self-adhesive or non-adhesive forms, with watt densities of 2.5, 5, or 10 W/in², and operate within temperature ranges from -57°C to 232°C depending on configuration. Models support voltages of 28V, 115V, or 230V, with leads made of 22 AWG PTFE insulated wire, and come with optional strain relief for enhanced performance.
OMEGA PLMLV1035 Polyimide Heater Specifications:
- Operating Temperature: -57 to 232°C (-71 to 450°F) without adhesive, -40 to 149°C (-40 to 300°F) with adhesive
- Maximum Thickness: 0.01 inches, up to 0.08 inches at strain relief
- Watt Density: 2.5 W/in², 5 W/in², 10 W/in²
- Leads: 22 AWG PTFE insulated wire, 12 inches with +0.4 inch tolerance
- Dielectric Strength: 1250 VAC
- Minimum Bending Radius: 0.032 inches
- Maximum Operating Voltage: 28V, 115V, or 230V
- Model Widths: 0.5 inches to 10 inches
- Model Lengths: 1 inch to 12 inches
- Adhesive Options: Optional pressure-sensitive adhesive models available
Buy the Cz OMEGA Series PLM Polyimide Heater: PLMLV1035
Order the Cz OMEGA PLM Series polyimide flexible heater today for reliable, chemical-resistant, and easy-to-install heating solutions. Designed to fit on curved surfaces with optional adhesive backing, these heaters operate within a temperature range of -57°C to 232°C and support voltages of 28V, 115V, or 230V. With watt densities of 2.5, 5, or 10 W/in², they deliver precise heat where needed. Made with durable polyimide insulation, they are ideal for applications requiring flexibility and high thermal performance, available now for quick online purchase.
Get Cz OMEGA PLM polyimide heater today—built for flexible, durable, and precise heating on curved surfaces.
Frequently Asked Questions
Where can I buy OMEGA PLMLV1035?
You can click on the BUY or RFQ button to purchase PLMLV1035 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PLMLV1035?
You can download the PLMLV1035 datasheet or visit the OMEGA website for support.
Who is the manufacturer of PLMLV1035?
OMEGA
