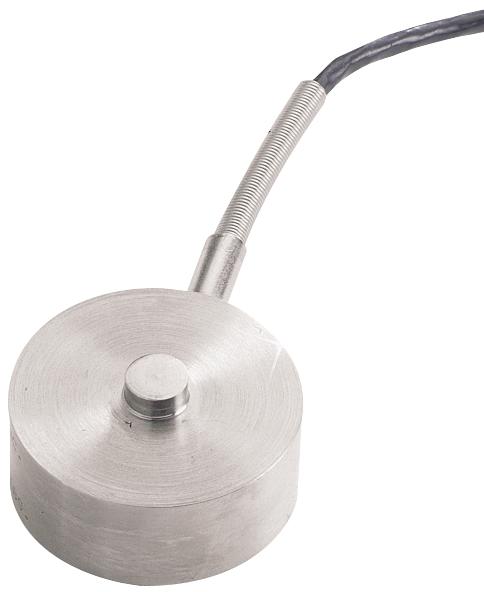

OMEGA LCGD30K miniature compression load cell
The LCGD-30K from Omega is a high-capacity, miniature, low-profile compression load cell from the LCGD series. Made of stainless steel, it provides excellent long-term stability and durability in demanding industrial environments. Designed for mounting on flat surfaces, it features an integral load button for reliable measurement. With a capacity of 30,000 pounds, it operates on 10 VDC excitation and delivers a nominal output of 2 mV/V. The device offers high linearity of ±0.25% FSO, hysteresis of ±0.20% FSO, and repeatability of ±0.10% FSO, with a zero balance of ±2% FSO. It functions effectively within a temperature range from -54°C to 121°C, with a recommended compensated range of 16°C to 71°C. The load cell can safely withstand overloads up to 150% of capacity and ultimate overloads of 300%. It features a minimum bridge resistance of 350 ohms, deflects 0.076mm (0.003 inches), and has an IP65 protection rating. The package includes a 1.5-meter shielded cable and is compatible with DPiS, DP41-S, and DP25B-S measurement meters.
OMEGA LCGD30K miniature compression load cell Specifications:
- Material: Stainless steel
- Capacity: 30,000 lb (13,608 kg)
- Excitation: 10 VDC
- Output: 2 mV/V nominal
- Linearity: ±0.25% FSO
- Hysteresis: ±0.20% FSO
- Repeatability: ±0.10% FSO
- Zero Balance: ±2% FSO
- Operating Temperature Range: -54°C to 121°C
- Compensated Temperature Range: 16°C to 71°C
- Bridge Resistance: Minimum 350 ohms
- Deflection: 0.076 mm (0.003 inches)
- Overload Capacity: Safe overload 150%, ultimate overload 300%
- Protection Class: IP65
- Cable: 1.5 meters shielded cable
- Mounting: Flat surface with integral load button
Buy the Omega LCGD30K – Reliable Compression Load Cell for Industrial Applications
Order the Omega LCGD-30K miniature compression load cell online now to ensure precise force measurement in industrial applications. This stainless steel device offers high stability, robust construction, and excellent long-term reliability. Designed for mounting on flat surfaces with an integral load button, it supports capacities up to 30,000 pounds. Operating on 10 VDC excitation, it provides a nominal 2 mV/V output, with high accuracy, low hysteresis, and a wide temperature range from -54°C to 121°C. Compatible with measurement meters like DPiS, DP41-S, and DP25B-S, it’s ideal for demanding environments requiring reliable, high-capacity load measurement.
Get Omega LCGD-30K today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA LCGD30K?
You can click on the BUY or RFQ button to purchase LCGD30K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LCGD30K?
You can download the LCGD30K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LCGD30K?
OMEGA
