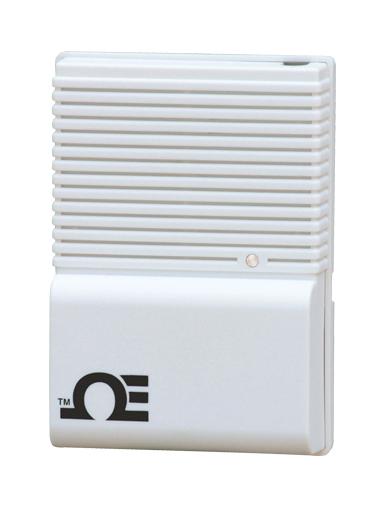

OMEGA ZWCMBTH Wireless Environmental Sensor
The ZW-CM is a compact wireless environmental sensor providing reliable monitoring of temperature, humidity, and barometric pressure. Operating wirelessly via IEEE 802.15.4 at 2.4 GHz, it transmits data up to 1000 meters to a ZW-REC coordinator connected to Ethernet, enabling web-based data visualization, alarming, and logging. Powered by two alkaline AA batteries, it offers up to 5 years of life, ideal for residential, industrial, and commercial environments. It supports easy web configuration, encryption, and integration with enterprise systems via OPC-UA/DA and MQTT protocols. Certified CE and FCC.
OMEGA ZWCMBTH Wireless Environmental Sensor Specifications:
- Integrated Sensors: Temperature, Relative Humidity, Barometric Pressure
- Operating Environment: -18 to 55°C, 90% RH non-condensing
- Enclosure Material: Polycarbonate
- Enclosure Dimensions: 135.9 L x 82 W x 39 mm D (5.35 x 3.23 x 1.56 inches)
- Wireless Standard: IEEE 802.15.4, DSSS
- Frequency: 2.4 GHz (2400-2483.5 MHz), 16 channels
- Range: Up to 300 m (1000 ft) line-of-sight
- Power: Two AA alkaline batteries, 1.5V each
- Battery Life: Up to 5 years with 1-minute transmission interval
- Temperature Accuracy: ±0.5°C (10 to 55°C), ±1°C (-18 to 10°C)
- Temperature Resolution: 0.1°C
- Humidity Accuracy: 3% (20-80%), 5% (5-95%)
- Humidity Resolution: 0.1% RH
- Barometric Pressure Accuracy: ±4 mbar
- Barometric Resolution: 0.1 mbar
Buy the Omega Series Wireless Environmental Sensor: ZWCMBTH
Shop now for the Omega Series wireless environmental sensor ZWCMBTH, designed for accurate temperature, humidity, and pressure monitoring. Its long-lasting battery life of up to 5 years, easy web-based setup, and robust wireless range make it ideal for residential, industrial, and commercial environments. Seamlessly integrate with enterprise systems via OPC-UA and MQTT protocols, ensuring real-time data access and management. Optimize your environmental monitoring with this reliable, compact device that supports web configuration, encryption, and remote logging for enhanced operational efficiency.
Order your Omega Series ZWCMBTH wireless environmental sensor today and ensure reliable monitoring of temperature, humidity, and pressure in your facility.
