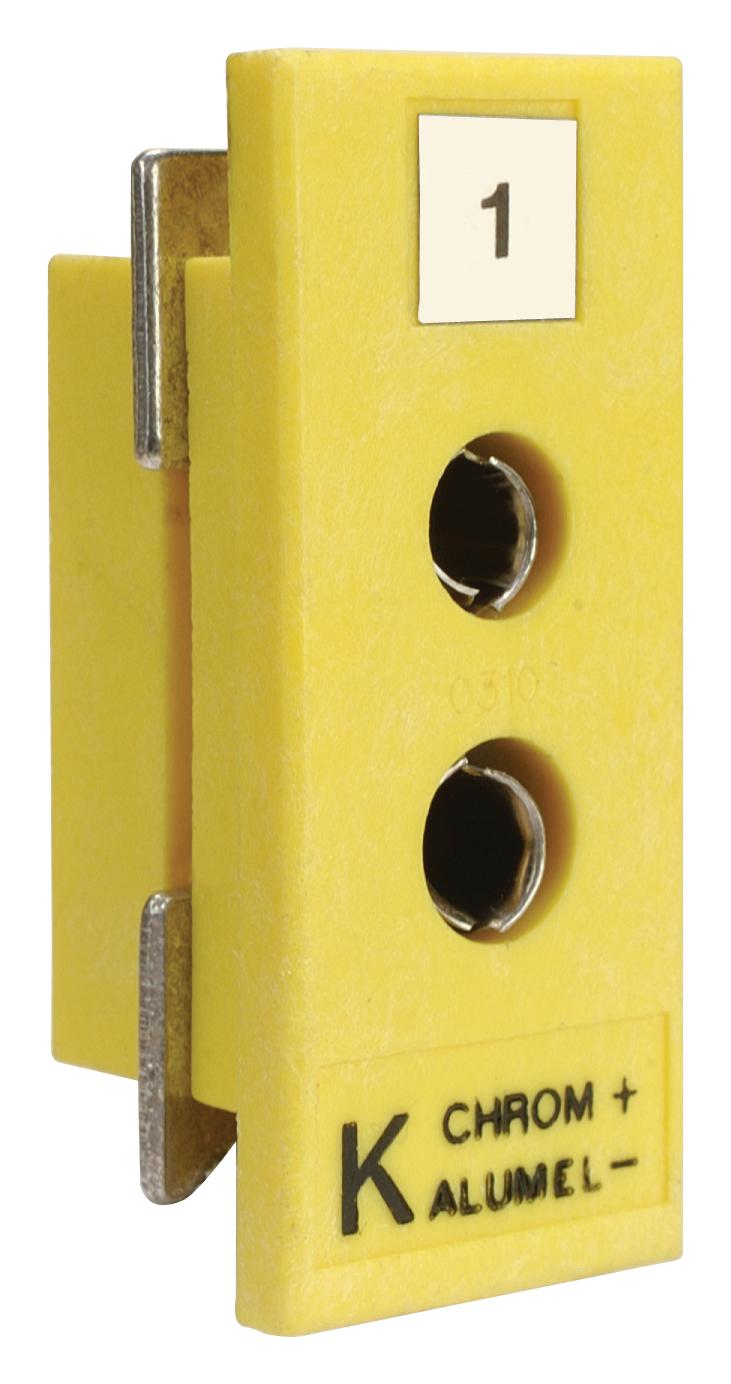

OMEGA JPKF Thermocouple Panel Jack
OMEGA’s panel jacks are color-coded, easy to install, and rugged, featuring collet-type, spring-loaded female connectors compatible with standard thermocouple connectors. Made from high-impact, glass-filled nylon, they operate from -29 to 180°C, with minor discoloration between 150°C and 180°C not affecting electrical properties. Suitable for control panels and instrument cases, these jacks accept solid or stranded wire up to 14 AWG. Includes mounting hardware, securing clips, and adaptable mounting plates for quick, secure installation in various industrial environments. Designed for precise thermocouple connections with ANSI-grade calibrations.
OMEGA JPKF Thermocouple Panel Jack Specifications:
- Material: Glass-filled nylon
- Operating Temperature: -29°C to 180°C
- Color Coding: Yes (Yellow, Blue, Black, Green, Red, White, Orange)
- Connector Type: Female, collet-type, spring-loaded
- Wire Range: Up to 14 AWG (solid or stranded wire)
- Panel Mounting: Includes mounting hardware and secure clips
- Panel Cut-Out Size: 16.3 mm (0.64 inch)
- Dimensions: Overall size approx. 30.4 mm (1.2 inch) diameter
- Discoloration: Minor at 150°C to 180°C, electrical properties unaffected
- Certifications: ANSI thermocouple grade calibrations
- Compatibility: Thermocouple types U, K, J, E, R, B, N, and W
- Includes: Screws, mounting hardware, and secure clips
Buy the Omega Series JP Thermocouple Panel Jack: JPKF
Order the Omega thermocouple panel jack today for high-quality, color-coded, and easy-to-mount thermocouple connections. Crafted from durable glass-filled nylon, it operates efficiently from -29°C to 180°C, with minor discoloration at higher temperatures that doesn’t affect electrical performance. Suitable for control panels and instrumentation, it accepts solid or stranded wires up to 14 AWG. Comes with mounting hardware and secure clips for fast installation. Perfect for precise thermocouple calibration and industrial environment applications, ensuring reliable temperature measurements.
Get Omega JP JPKF today—built for reliable thermocouple connections in control panels and industrial instruments.
Frequently Asked Questions
Where can I buy OMEGA JPKF?
You can click on the BUY or RFQ button to purchase JPKF from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part JPKF?
You can download the JPKF datasheet or visit the OMEGA website for support.
Who is the manufacturer of JPKF?
OMEGA
