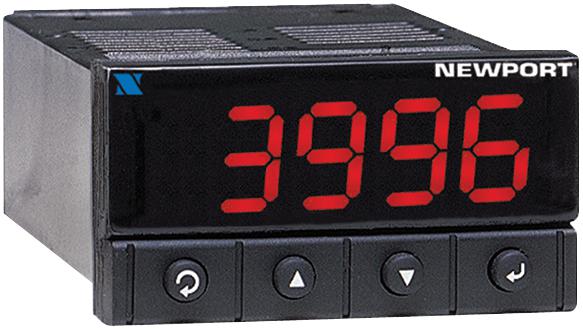

OMEGA CNI3233 Temperature and Process Controller
The CNi32 Series controller is a compact, high-accuracy device designed for precise temperature, process, and strain measurements. It features universal inputs including thermocouples, RTDs, voltage, current, and strain gauges, with built-in excitation for transducers. Its full-color programmable display and 9-segment LEDs enhance readability, while dual relay outputs and serial communication options support flexible control architectures. Ideal for industrial automation, it offers excellent temperature stability, digital filtering, and easy configuration via free software, making it suitable for demanding manufacturing and calibration applications.
OMEGA CNI3233 Temperature and Process Controller Specifications:
- Accuracy: +0.5°C temperature; 0.03% reading
- Resolution: 1°/0.1°, 10 uV process
- Temperature Stability: RTD 0.04°C/°C, TC 0.05°C/°C @ 25°C
- Inputs: Thermocouple, RTD, analog voltage, current, strain
- Power supply: 90 to 240 Vac or 12 to 36 Vdc (low voltage option)
- Display: 4-digit 9-segment LED, programmable color (green, amber, red)
- Communications: RS232, RS485, Ethernet TCP/IP
- Control outputs: 2 SPDT relays, SSR, DC pulse, and analog outputs
- Dimensions: 25.4 mm high x 48 mm wide x 127 mm deep (0.886 x 1.772 x 5 inches)
- Panel cutout: 22.5 x 45 mm (0.886 x 1.772 inches)
- Operating temperature: 0 to 55°C (32 to 131°F), humidity up to 90%
- Protection: NEMA 4X/IP65 front bezel, UL, CE, C-UL approved
Buy the Omega Series CNi32 Temperature and Process Controller: CNI3233
Purchase the Omega CNi32 temperature and process controller online now to ensure reliable performance, seamless integration, and precise control in your industrial applications. Featuring universal inputs, programmable color display, dual relay outputs, serial communication, and robust build quality, this controller is ideal for automation, calibration, and manufacturing processes. Simplify your setup with easy configuration and innovative features that enhance productivity and accuracy. Order today for fast delivery and guaranteed quality.
Get Omega CNi32 temperature and process controller today—built for precision and long-lasting durability with versatile inputs and communication options.
Frequently Asked Questions
Where can I buy OMEGA CNI3233?
You can click on the BUY or RFQ button to purchase CNI3233 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CNI3233?
You can download the CNI3233 datasheet or visit the OMEGA website for support.
Who is the manufacturer of CNI3233?
OMEGA
