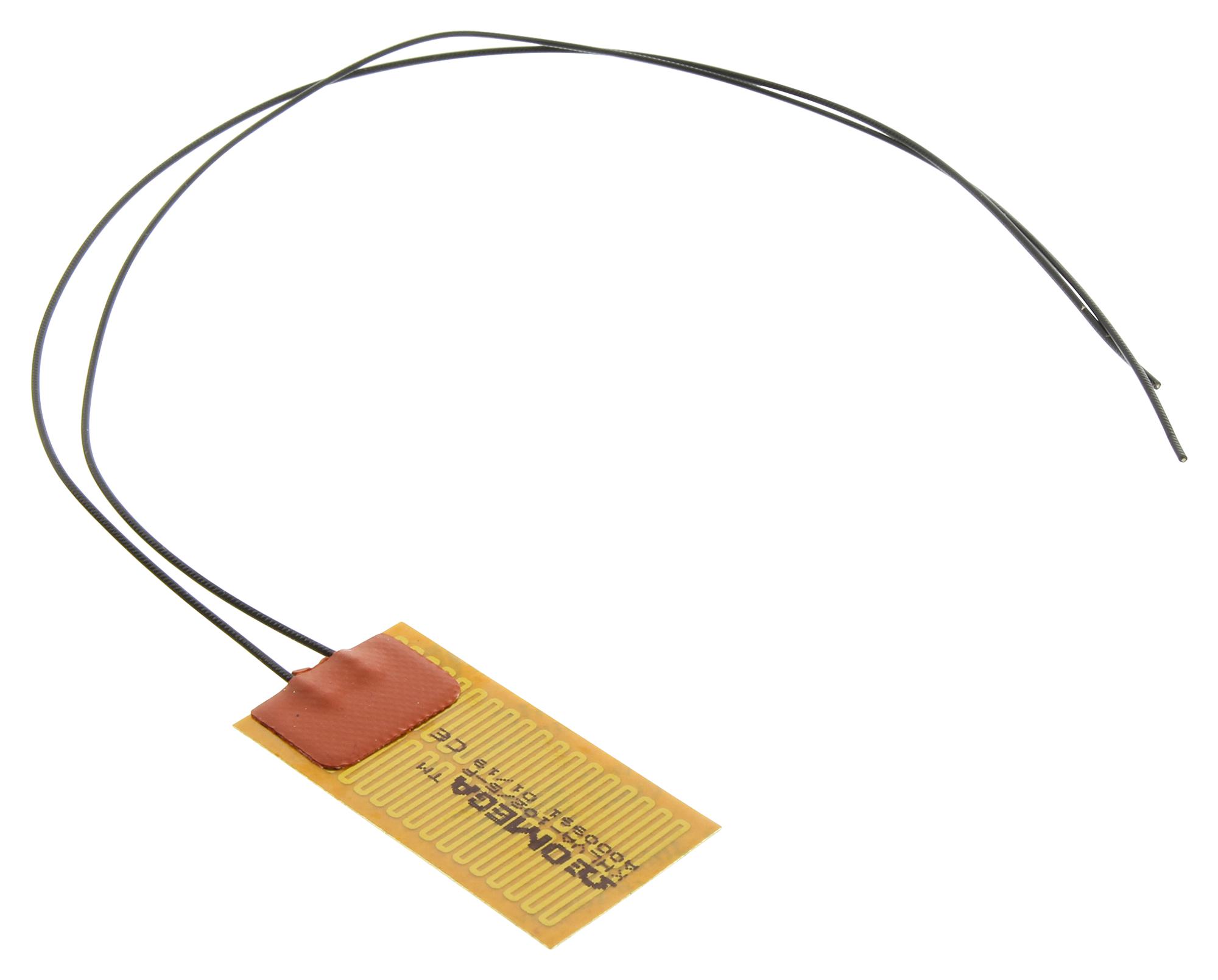

OMEGA KHLVA1025P Polyimide Heater
This high-quality polyimide film insulated heater is designed for industrial applications requiring precise temperature control up to 150°C. Featuring etched foil technology, maximum thickness of 0.010 inches, and various wattage options at 2.5, 5, or 10 W/in?, it offers excellent chemical resistance and flexibility. Available in multiple shapes and sizes, with optional pressure-sensitive adhesive for easy installation, these heaters are ideal for chemical resistant, space-efficient, and reliable heating solutions in demanding environments.
OMEGA KHLVA1025P Polyimide Heater Specifications:
- Material: Polyimide film with Inconel 600 resistive foil element
- Maximum Thickness: 0.010 inches
- Operating Temperature: -57°C to 150°C without PSA, -40°C to 149°C with PSA
- Dielectric Strength: 1250 Vac for 1 second
- Wattage options: 2.5, 5, or 10 W/in?
- Bending Radius: 0.032 inches
- Construction: Flexible, etched foil design, resistant to chemicals
- Voltage Ratings: 115V, 230V, 28V, or custom configurations
- Wiring: UL 1180, stranded, AWG 22, PTFE insulated
- Thickness: Standard options 0.010 inches or 0.060 inches
- Available in various shapes and sizes with optional pressure-sensitive adhesive
- Includes operator's manual and suitable for space-constrained applications
Buy the Omega KHLVA1025 P – Reliable Polyimide Flexible Heaters for Industrial Applications
Enhance your industrial heating solutions with Omega's Polyimide Heater offering up to 150°C operating temperature. Crafted from durable polyimide film and Inconel foil, this versatile heater features etched foil technology and optional pressure-sensitive adhesive, making it easy to install in space-limited areas. Available in multiple shapes, sizes, and wattage options including 2.5, 5, and 10 W/in?, it ensures precise temperature control and chemical resistance. Reliable, flexible, and built for demanding environments, order online now for quick delivery.
Buy Omega KHLVA1025 P now and experience unmatched reliability and performance with high resistance to chemicals and flexible installation options.
Frequently Asked Questions
Where can I buy OMEGA KHLVA1025P?
You can click on the BUY or RFQ button to purchase KHLVA1025P from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part KHLVA1025P?
You can download the KHLVA1025P datasheet or visit the OMEGA website for support.
Who is the manufacturer of KHLVA1025P?
OMEGA
