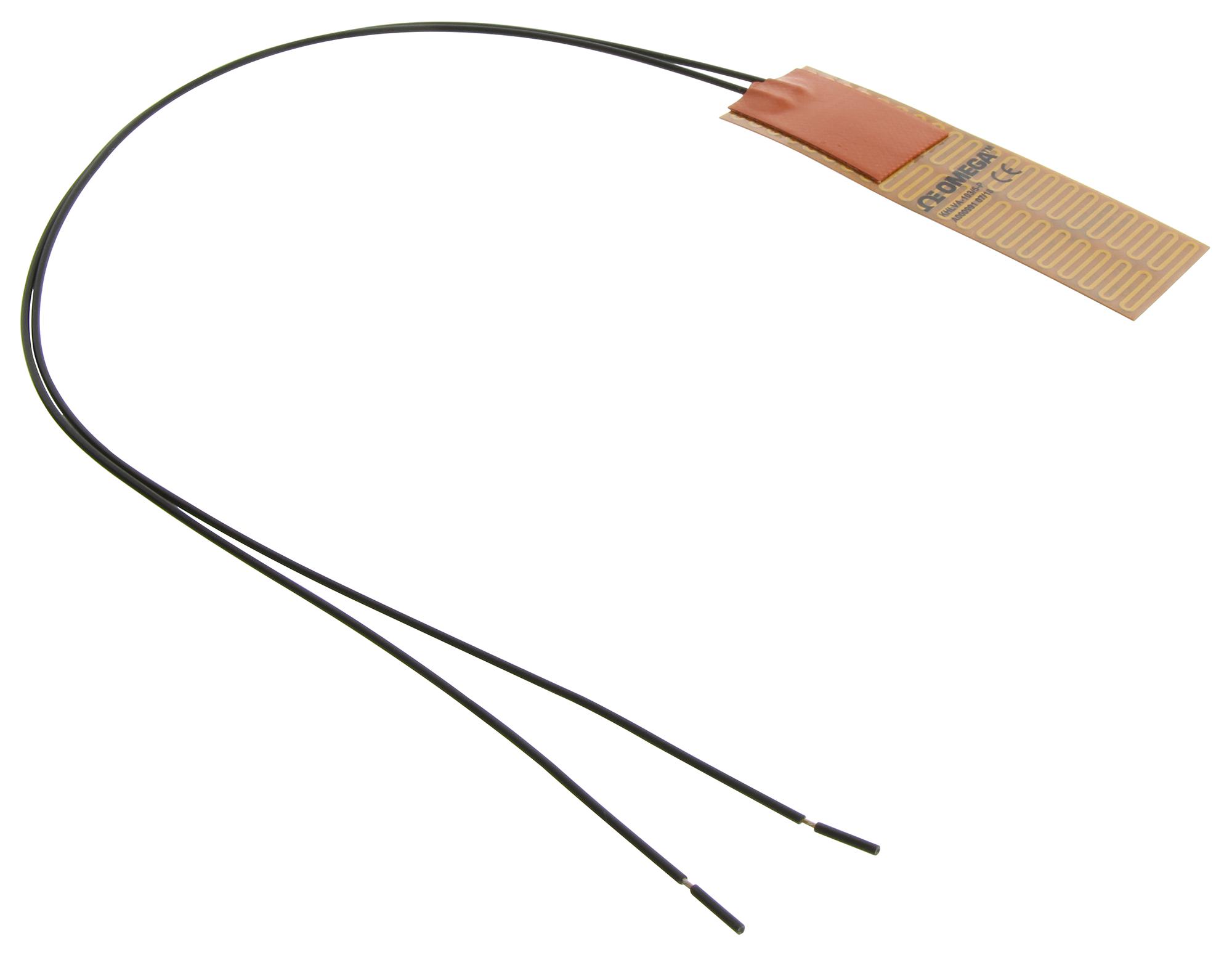

OMEGA KHLVA1035P Polyimide Heater
The KHLVA-1035P is a flexible polyimide film insulated heater with etched foil design, operating up to 150°C (302°F). It’s available in various sizes, wattages (2.5, 5, or 10 W/in), and comes with optional pressure-sensitive adhesive. Its dimensions vary with models, typically features a maximum thickness of 0.010 inches, dielectric strength of 1250 Vac, and a minimum bending radius of 0.032 inches. Suitable for applications requiring chemical resistance, flexibility, and precise temperature control, it’s ideal for industrial and laboratory heating needs.
OMEGA KHLVA1035P Polyimide Heater Specifications:
- Material: Polyimide film with etched foil resistive element
- Maximum Temperature: 150°C (302°F)
- Operating Temperature (with PSA): -40°C to 149°C (-40°F to 300°F)
- Maximum Thickness: 0.010 inches
- Dielectric Strength: 1250 Vac for 1 second
- Minimum Bending Radius: 0.032 inches
- Wattage options: 2.5, 5, or 10 W/in
- Wire: Stranded UL 1180, PTFE insulated, AWG 22
- Seal: Optional pressure-sensitive adhesive (PSA)
- Dimensions: Varies by model, typically length and width in inches or centimeters
- Application Environment: Chemical resistant, flexible, suitable for precision heating
- Construction: Inconel 600 resistive foil encased in polyimide
- Operating Temp (without PSA): -57°C to 150°C
Buy the Buy Omega Polyimide Heater Part Number KHLVA-1035P Online
Purchase the Omega Polyimide Heater KHLVA-1035P online today to benefit from a high-quality, flexible, and chemically resistant heating element. Designed with etched foil technology, it offers excellent temperature control up to 150°C and comes in various sizes to fit diverse applications. Its durable polyimide construction combined with optional pressure-sensitive adhesive ensures easy installation in industrial, laboratory, or precision heating environments. Reliable, efficient, and customizable, it's the optimal choice for your heating needs. Shop now for fast delivery and expert support.
Order your Omega Series KHLVA-1035P flexible polyimide heater today and ensure your industrial or laboratory projects are equipped with reliable heating solutions.
Frequently Asked Questions
Where can I buy OMEGA KHLVA1035P?
You can click on the BUY or RFQ button to purchase KHLVA1035P from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part KHLVA1035P?
You can download the KHLVA1035P datasheet or visit the OMEGA website for support.
Who is the manufacturer of KHLVA1035P?
OMEGA
