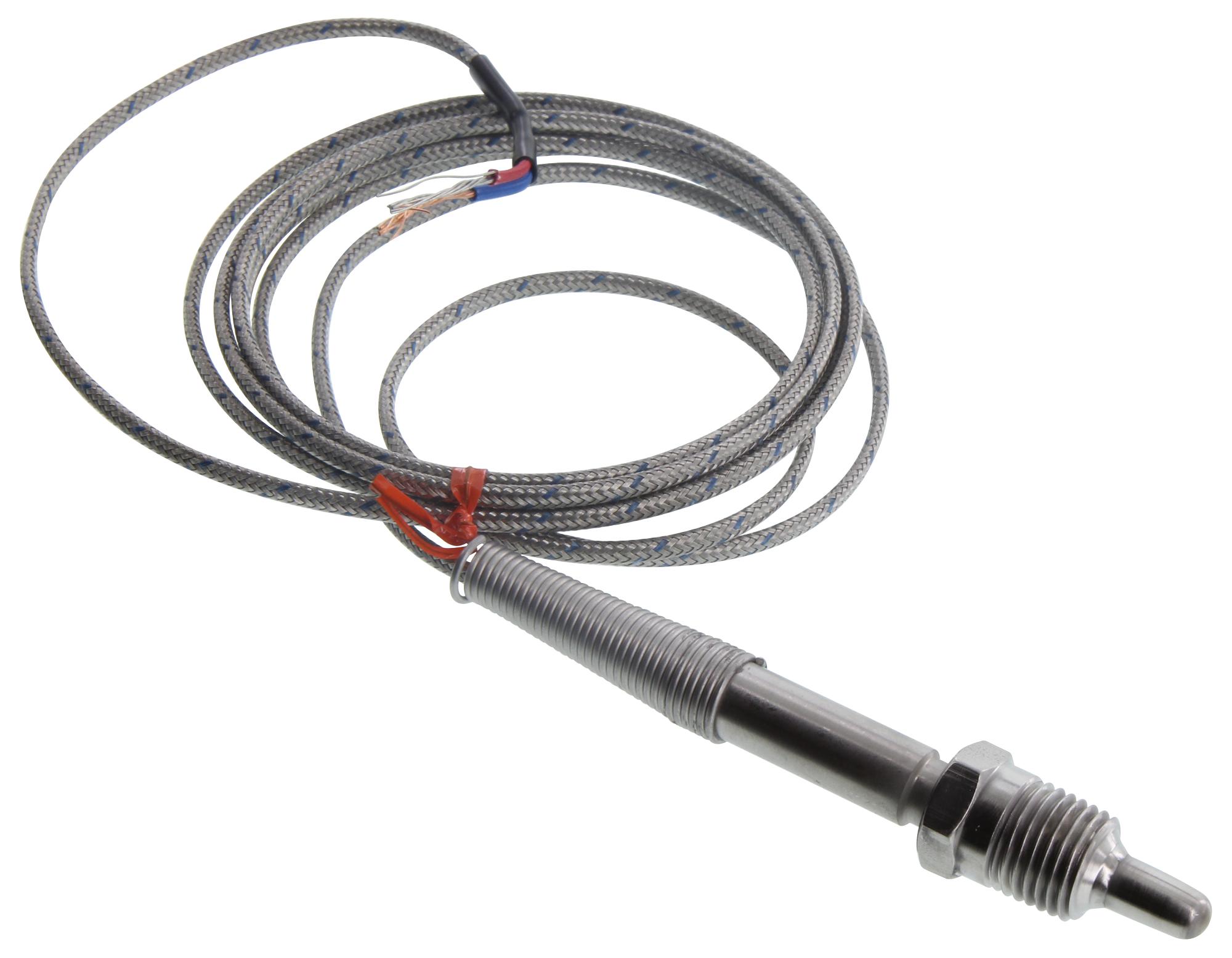

OMEGA TCTNPTU72 Pipe Plug Thermocouple
The Rugged Pipe Plug Thermocouple Probe features a durable 304 stainless steel design with strain relief spring, suitable for vessel applications, pressurized chambers, and pipelines. It supports single and dual elements, with options for grounded, ungrounded, or exposed junctions. The probe withstands pressures up to 2500 psi and operates within a temperature range up to 650°C (1200°F). Its stainless steel braid over fiberglass lead wire resists abrasion and cuts, ensuring flexibility and durability in harsh environments. Custom designs with different NPT threads and tip sizes are available, as well as flush tip options for specific measurements.
OMEGA TCTNPTU72 Pipe Plug Thermocouple Specifications:
- Material: 304 Stainless Steel
- Mounting Thread: NPT (1/8, 1/4, or dual 1/4 NPT options)
- Lead Wire: 4-20 AWG stranded, fiberglass overbraid
- Pressure Rating: Up to 2500 psi at ambient temperature
- Temperature Range: -55°C to 650°C (1200°F)
- Transition Joint Temperature: up to 480°C (900°F)
- Junction Types: Grounded, Ungrounded, Exposed
- Probe Tip Diameter: 0.455 inch (11.58 mm)
- Probe Length: Customizable, example 72 inches
- Transition Joint: Stainless steel, strain relief spring
- Connector: SMPW standard, optional J, K, T, E thermocouple types
- Design: Single and dual element options, custom thread and tip sizes available
- Protection: Stainless steel overbraid resists abrasion and cuts, maintains flexibility
Buy the Omega Series TC NPT Thermocouple: TCTNPTU72
Order the durable Omega Pipe Plug Thermocouple today online. Designed for high-pressure, harsh environments with stainless steel overbraid and customizable options, it offers reliable temperature measurement up to 650°C. Easy to install with NPT threads, this probe features strain relief and versatile junction types for vessel, pipeline, or gas stream applications. Choose from single or dual elements, grounded, ungrounded, or exposed junctions. Experience precision, durability, and easy ordering now—perfect for your industrial temperature monitoring needs.
Get Omega TCTNPTU72 today—engineered for precision temperature monitoring in high-pressure environments with rugged stainless steel construction.
Frequently Asked Questions
Where can I buy OMEGA TCTNPTU72?
You can click on the BUY or RFQ button to purchase TCTNPTU72 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part TCTNPTU72?
You can download the TCTNPTU72 datasheet or visit the OMEGA website for support.
Who is the manufacturer of TCTNPTU72?
OMEGA
