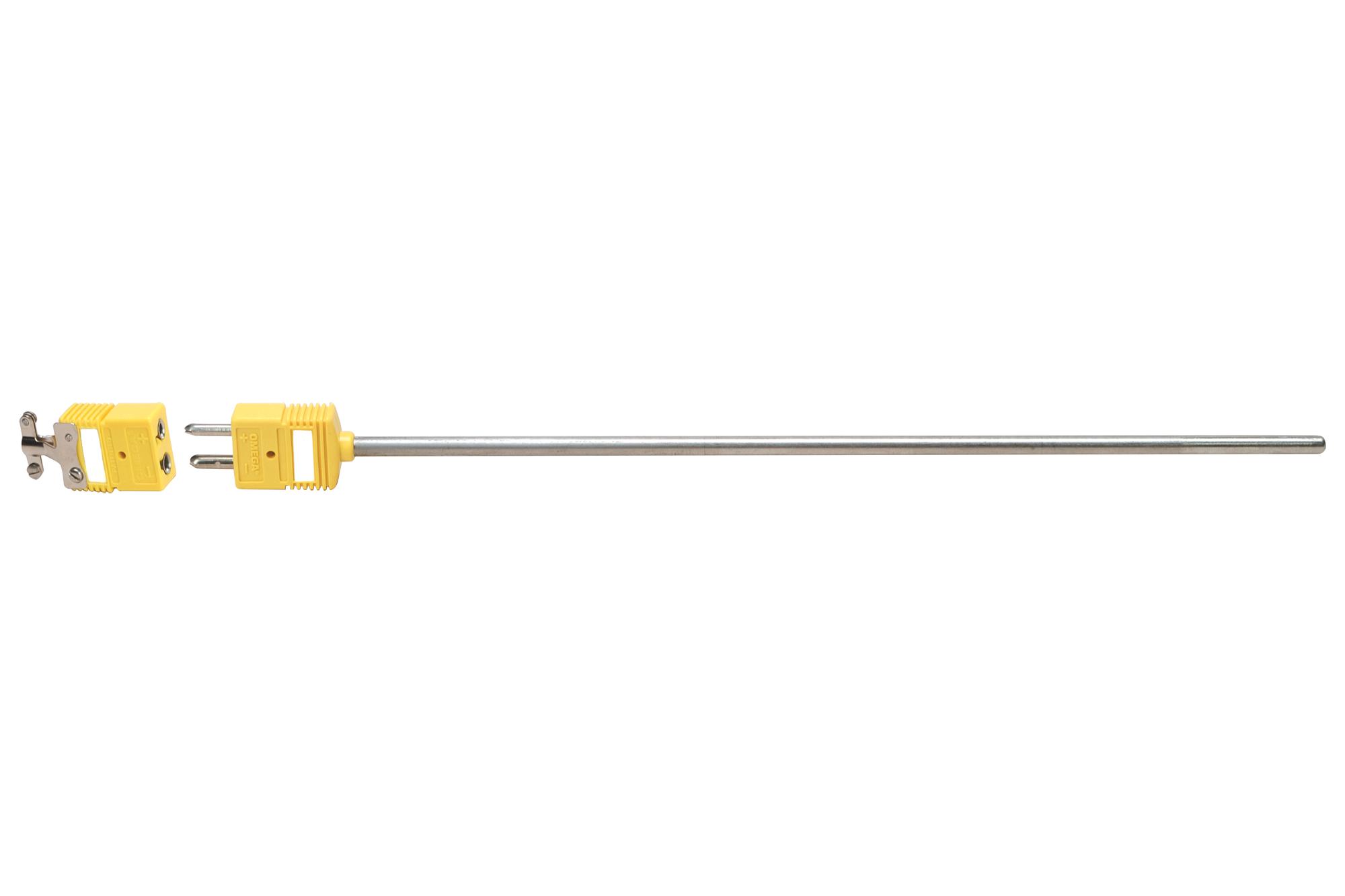

OMEGA KMQXL062U12 Thermocouple Probe
The KMQXL062U12 is a high-performance, miniature sheathed thermocouple probe designed for precise temperature measurements up to 1338°C (2400°F). Featuring Super OMEGACLAD XL sheath technology, it offers excellent long-term stability, low drift, and exceptional resistance to carburization, oxidation, and chlorination. Suitable for demanding industrial environments, this type K thermocouple ensures reliable, accurate readings over extended periods, with quick-connect compatibility and options for grounded, exposed, or ungrounded junctions. Ideal for high-temperature process monitoring and control applications.
OMEGA KMQXL062U12 Thermocouple Probe Specifications:
- Junction Type: U (Ungrounded)
- Sheath Material: Super OMEGACLAD XL
- Thermocouple Type: K
- Maximum Temperature: 1338°C (2400°F)
- Probe Diameter: 0.062 inches
- Length: 12 inches (305 mm)
- Response Time: Typical 0.55 seconds (ungrounded)
- Drift: Less than 2.8°C (37°F) in 25 weeks
- Durability: Withstands 815°C (1500°F) for 3 years
- Resistance: Carburization, oxidation, chlorination
- Compatibility: Quick-connect, transition junction options available
- Application: Industrial process temperature monitoring, high-temperature environments
Buy the Buy Omega Thermocouple Part Number KMQXL062U12 Online
Order the Omega KMQXL062U12 thermocouple probe online today and ensure precise temperature measurement with robust, long-lasting performance. Designed with advanced Super OMEGACLAD XL sheath technology, this miniature Type K thermocouple offers exceptional stability, low drift, and durability in demanding high-temperature environments up to 1338°C (2400°F). Its compact size and quick-connect feature make installation easy, improving efficiency while reducing maintenance costs. Perfect for process control, industrial manufacturing, and critical temperature monitoring applications, this probe delivers consistent, accurate readings for extended operation life.
Buy Omega KMQXL062U12 now and experience unmatched reliability and performance in high-temperature industrial monitoring.
Frequently Asked Questions
Where can I buy OMEGA KMQXL062U12?
You can click on the BUY or RFQ button to purchase KMQXL062U12 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part KMQXL062U12?
You can download the KMQXL062U12 datasheet or visit the OMEGA website for support.
Who is the manufacturer of KMQXL062U12?
OMEGA
