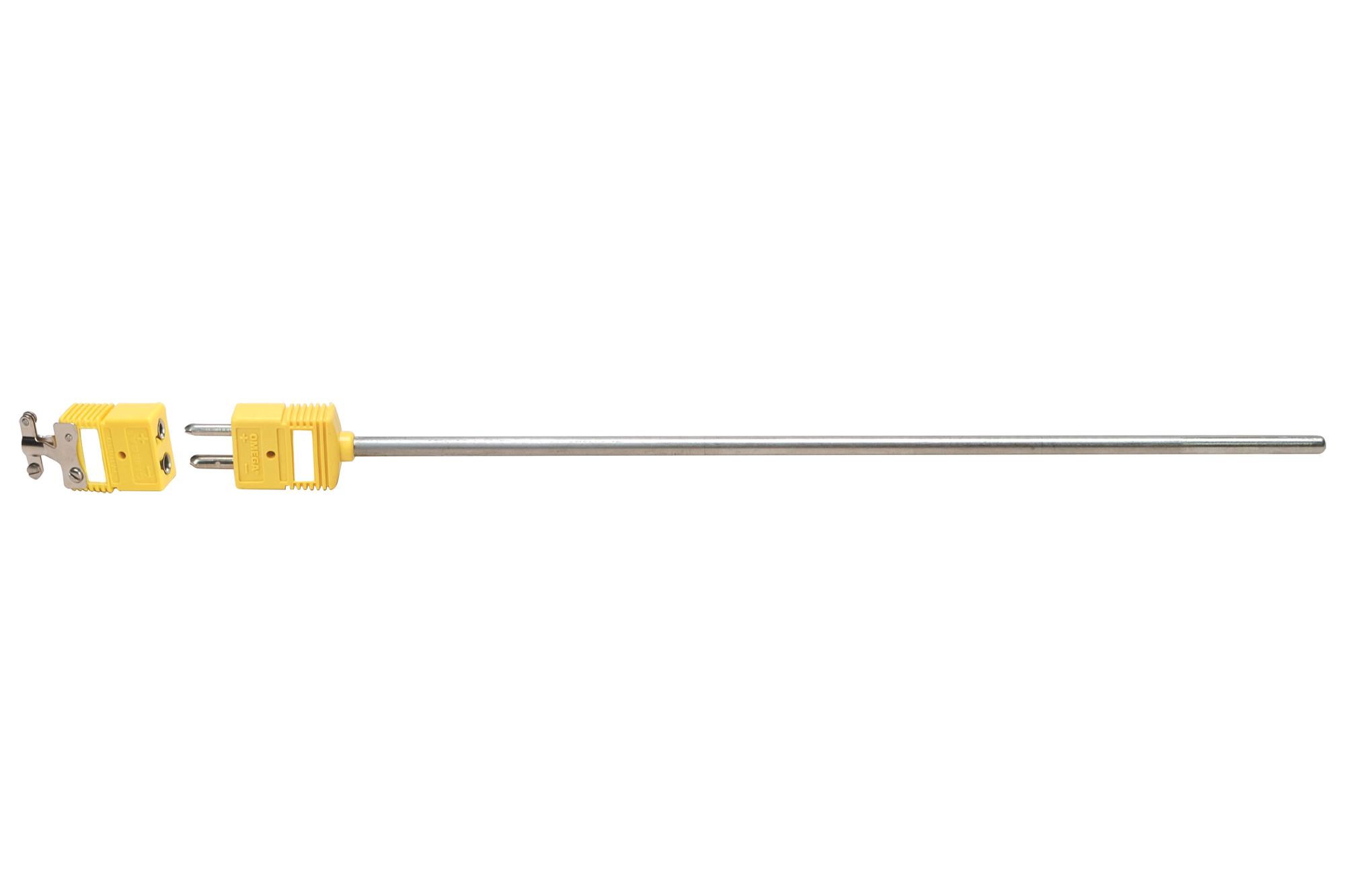

OMEGA KMQXL062U24 Thermocouple Probe
The KMQXL062U24 is a high-performance thermocouple probe designed for extreme temperature environments. Utilizing advanced mineral insulated technology, it features a small 0.062-inch diameter sheath, allowing rapid response times and excellent stability at temperatures up to 1338°C (2400°F). This probe offers low drift, reliable long-term accuracy, and exceptional durability, resisting carburization, oxidation, and chlorination. Suitable for industrial applications requiring precise temperature monitoring in harsh environments, it includes a universal connector and cable clamp for easy installation and maintenance.
OMEGA KMQXL062U24 Thermocouple Probe Specifications:
- Sheath Diameter: 0.062 inches (1.57 mm)
- Maximum Temperature: 1338°C (2400°F)
- Response Time: Approx. 0.4 seconds
- Material: Mineral insulated sheath with stainless steel transition joint
- Junction Type: Ungrounded (U)
- Junction Length: 24 inches (610 mm)
- Connector: Universal connector with cable clamp included
- Temperature Drift: Less than 2.8°C (37°F) in 25 weeks
- Resistance: Resistant to carburization, oxidation, and chlorination
- Calibration: NIST-traceable calibration options available
- Applicable Standards: Suitable for industrial temperature measurement applications
Buy the Omega Series Thermocouple: KMQXL062U24
Order the Omega KMQXL062U24 thermocouple probe online today to ensure reliable high-temperature monitoring. Designed for harsh industrial environments, it offers fast response times, long-term stability, and resistance to extreme conditions. Easily installed with a universal connector and cable clamp, this probe maintains accuracy up to 1338°C (2400°F). Perfect for demanding applications requiring precise temperature measurement and durability. Invest in proven performance and upgrade your thermal monitoring system today for continuous, accurate data collection.
Buy Omega KMQXL062U24 thermocouple probe now and experience unmatched durability, rapid response, and precise temperature monitoring in tough industrial environments.
Frequently Asked Questions
Where can I buy OMEGA KMQXL062U24?
You can click on the BUY or RFQ button to purchase KMQXL062U24 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part KMQXL062U24?
You can download the KMQXL062U24 datasheet or visit the OMEGA website for support.
Who is the manufacturer of KMQXL062U24?
OMEGA
