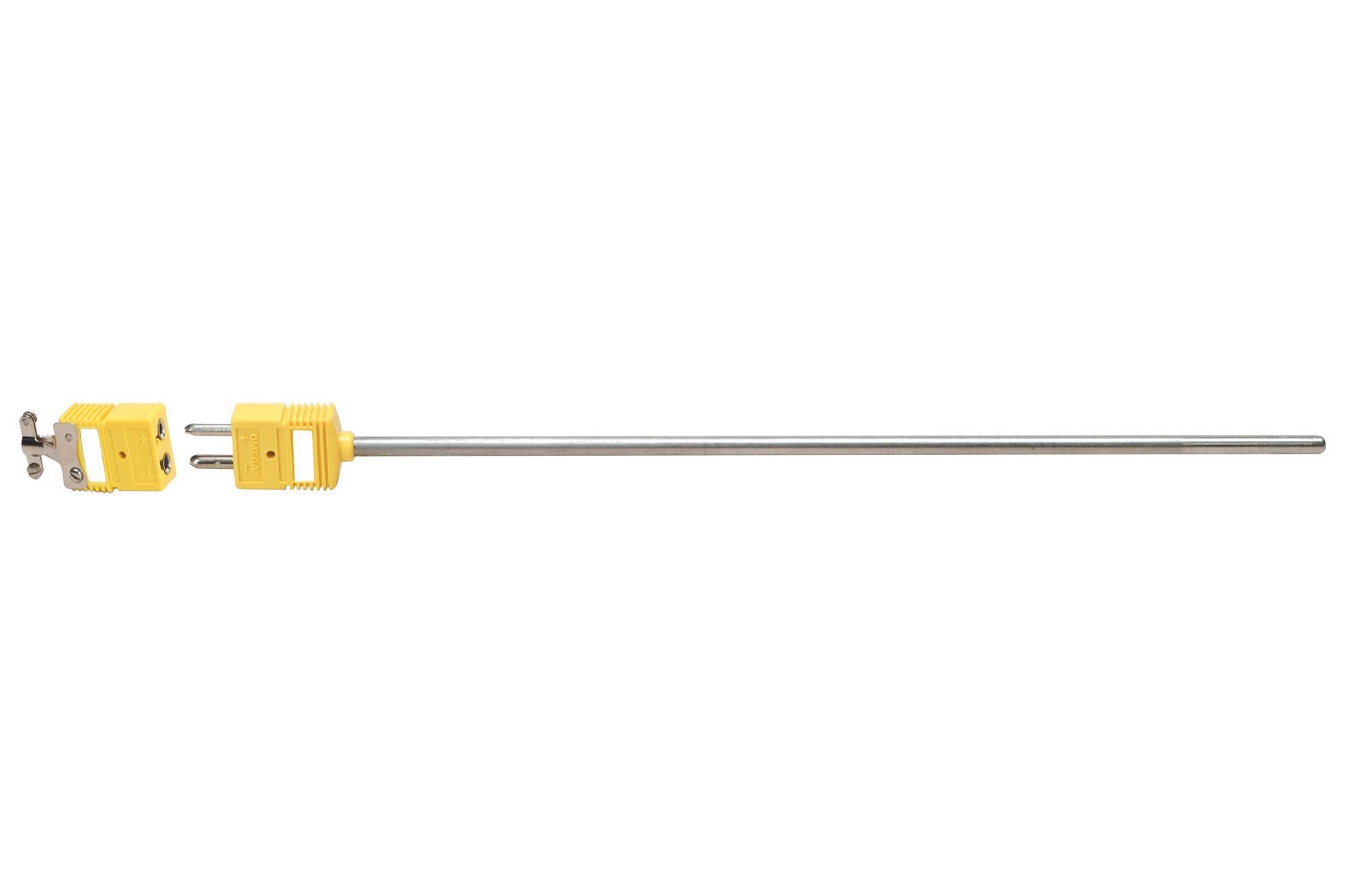

OMEGA KMQXL062U6 Thermocouple Probe
The KMQXL062U6 is a high-performance thermocouple probe designed with super stable mineral insulated technology. It operates reliably at temperatures up to 1338°C (2400°F), offering excellent long-term stability and minimal drift over extended periods. The probe features a compact 0.062 inch diameter sheath, making it ideal for precise temperature monitoring in challenging environments. Its rugged construction resists carburization, oxidation, and chlorination, ensuring durability. Suitable for industrial applications requiring accurate, long-lasting temperature measurement with quick response times and extended probe life under demanding conditions.
OMEGA KMQXL062U6 Thermocouple Probe Specifications:
- Sheath Diameter: 0.062 inches (1.6 mm)
- Maximum Temperature: 1338°C (2400°F)
- Junction Type: Optional (Grounded, Exposed, Ungrounded, Surface)
- Junction Material: CHROMEGA®-ALOMEGA®
- Sheath Material: XL Sheath
- Length Options: 150 mm, 300 mm, 450 mm, 600 mm
- Response Time: Approximately 0.3 seconds (ungrounded water)
- Leakproof, mineral insulated construction
- Temperature Drift: Less than 2.8°C (37°F) in 25 weeks
- Durability: Resistance to carburization, oxidation, chlorination
- Probe Style: Standard or miniature size, with quick-connect or transition junction options
- Application: Suitable for high-temperature industrial monitoring, process control, and research
- Certifications: UL recognized, CSA certified
Buy the Omega Series XL Sheath Thermocouple Probe: KMQXL062U6
Order the Omega KMQXL062U6 thermocouple probe online today for reliable temperature measurement at temperatures up to 1338°C (2400°F). Designed with super stable mineral insulated technology, it features a compact 0.062 inch diameter sheath that fits various industrial applications. Its rugged construction offers resistance to carburization, oxidation, and chlorination, ensuring it performs effectively in tough environments. With quick response times, minimal drift, and an extended lifespan, this probe is ideal for process control, research, and high-precision temperature monitoring where durability and accuracy are essential.
Get Omega KMQXL062U6 today—built for precision and long-lasting durability in demanding high-temperature environments.
Frequently Asked Questions
Where can I buy OMEGA KMQXL062U6?
You can click on the BUY or RFQ button to purchase KMQXL062U6 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part KMQXL062U6?
You can download the KMQXL062U6 datasheet or visit the OMEGA website for support.
Who is the manufacturer of KMQXL062U6?
OMEGA
