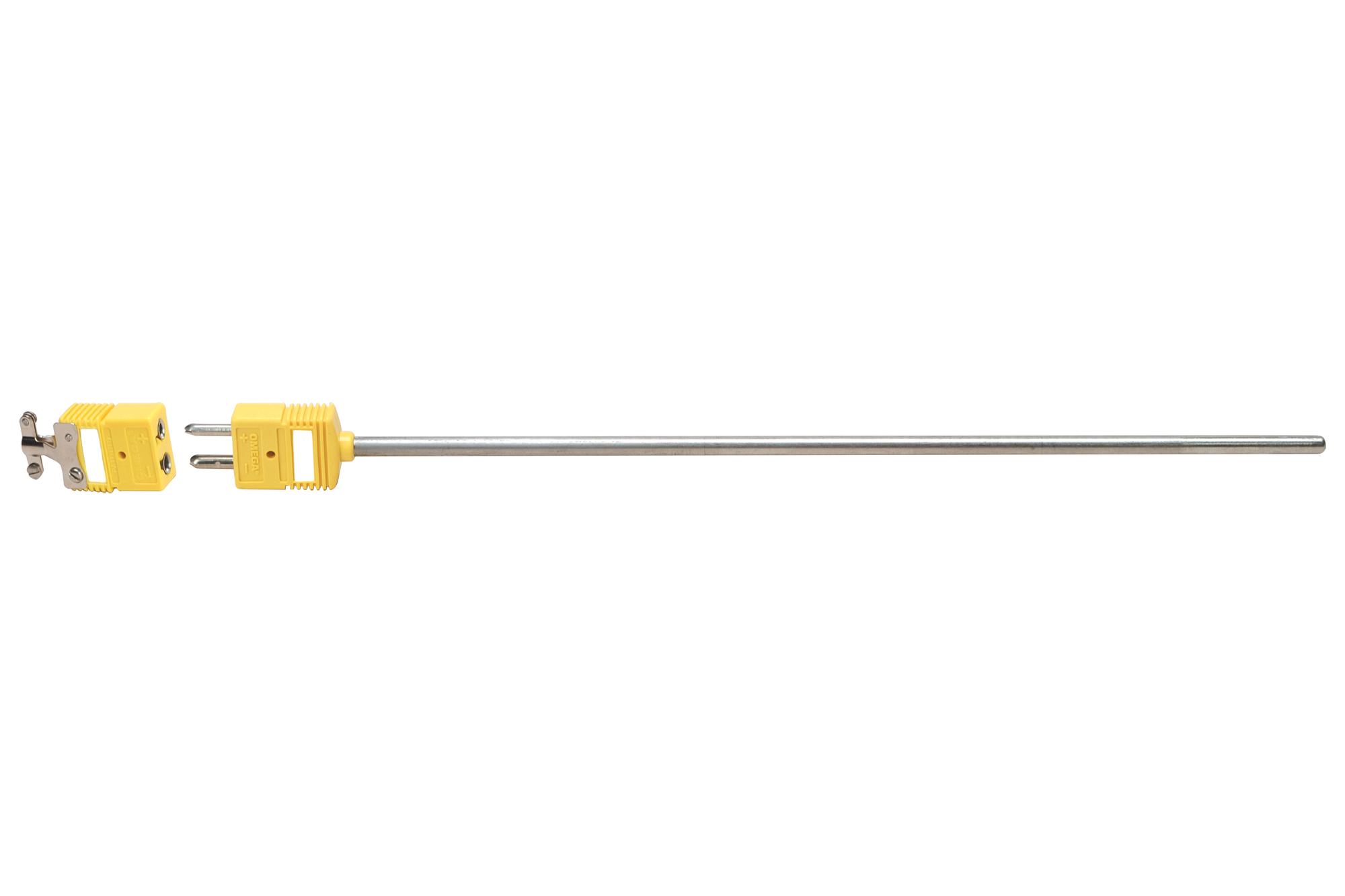

OMEGA KMQXL125G12 Thermocouple Probe
The KMQXL125G12 is a high-performance, miniature Type K thermocouple probe featuring Super OMEGACLAD XL sheath, designed for accurate temperature measurement up to 1338°C (2400°F). It offers excellent long-term stability, low drift, and superior resistance to carburization, oxidation, and chlorination in tough environments. Ideal for industrial applications requiring small diameter probes with quick-connect features, it includes a universal connector and cable clamp for ease of installation. Suitable for continuous high-temperature operations, it ensures reliable readings over extended periods with minimal maintenance.
OMEGA KMQXL125G12 Thermocouple Probe Specifications:
- Sheath Material: Super OMEGACLAD XL
- Type: K Thermocouple
- Maximum Temperature: 1338°C (2400°F)
- Junction Type: Ungrounded
- Diameter: 12.7 mm (0.5 inch)
- Length: 150 mm, 300 mm, 450 mm, 600 mm options available
- Response Time: Approx. 0.55 sec at 1000°C
- Signal Drift: Less than 2.8°C (37°F) in 25 weeks
- Operating Environment: Resistant to carburization, oxidation, chlorination
- Connector: Universal, includes cable clamp
- Application: Industrial high-temperature measurements
- Durability: Long life, low maintenance, stable readings over extended use
Buy the Omega Series Super OMEGACLAD XL: KMQXL125G12
Order the Omega KMQXL125G12 thermocouple probe online today to ensure precise temperature monitoring in harsh environments. This high-performance Type K probe features Super OMEGACLAD XL sheath that resists carburization, oxidation, and chlorination at temperatures up to 1338°C (2400°F). It provides low drift, excellent long-term stability, and quick-connect capability for easy installation. Ideal for continuous operation in demanding industrial settings, it offers exceptional durability and minimal maintenance costs, making it the perfect choice for high-temperature measurement needs.
Buy Omega KMQXL125G12 now and experience unmatched reliability and performance in high-temperature industrial applications.
Frequently Asked Questions
Where can I buy OMEGA KMQXL125G12?
You can click on the BUY or RFQ button to purchase KMQXL125G12 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part KMQXL125G12?
You can download the KMQXL125G12 datasheet or visit the OMEGA website for support.
Who is the manufacturer of KMQXL125G12?
OMEGA
