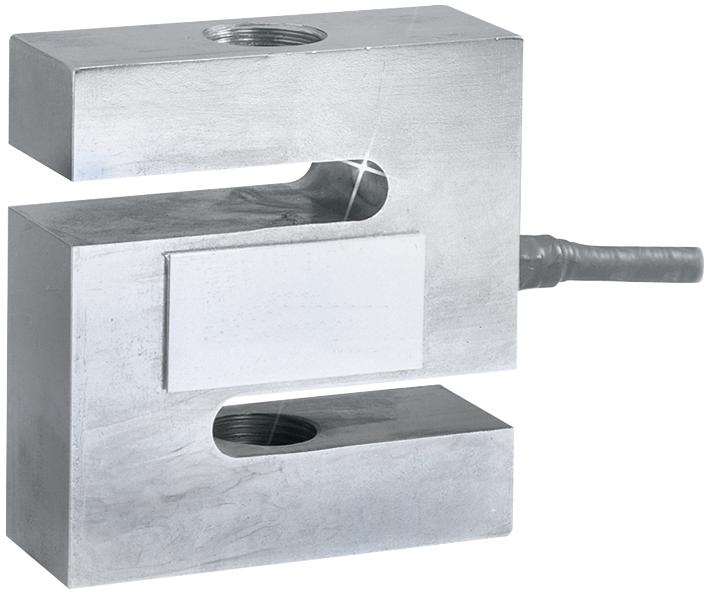

OMEGA LC10120K Stainless Steel Load Cell
The stainless steel load cell series offers high accuracy and economical pricing, suitable for harsh industrial environments. They support tension and compression measurements from 0-25 Ib to 0-40,000 Ib, and 0-10 kgf to 10,000 kgf, ensuring reliability for various load applications. Equipped with 5-point calibration, sealed construction, and compatible accessories, these load cells feature standard and metric models with options for load buttons and rod ends. Their robust design includes stainless steel construction, minimal thermal effects, and overload safety, making them ideal for demanding industrial weighing and force measurement tasks.
OMEGA LC10120K Stainless Steel Load Cell Specifications:
- Construction: 17-4 PH stainless steel
- Capacity: 0-25 Ib to 0-40,000 Ib, 0-10 kgf to 10,000 kgf
- Excitation: 10 Vdc, 15 Vdc maximum
- Output: 3 mV/V +0.0075 mV/V
- Sealing: IP65, resistant to harsh environments
- Thermal Effects: Zero: 0.002% FSO/°C, Span: 0.002% FSO/°C
- Operating Temp Range: -40°F to 200°F (-40°C to 93°C)
- Compensated Temp Range: 17°C to 71°C (60°F to 160°F)
- Overload Safety: 150% of capacity, Ultimate Overload: 300%
- Input Resistance: 350 ±10 Ω
- Output Resistance: 350 ±10 Ω
- Full Scale Deflection: 0.010 to 0.020 inches
- Cable Length: 9 m (30 ft) for <100 kgf, 4.5 m (15 ft) for >1500 kgf capacities
- Dimensions vary by model; see manufacturer's datasheet for detailed sizes
- Compatible with matching connectors and accessories
Buy the Buy Omega Stainless Steel Load Cell Part Number LC10120K Online
Purchase the Omega stainless steel load cell LC10120K online now to benefit from superior accuracy, robust construction, and versatile measurement options. Designed for harsh industrial environments, this load cell provides reliable tension and compression measurements with minimal thermal effects. Its sealed IP65 rating ensures resistance to dust and water, making it ideal for demanding applications. Easy to integrate with compatible accessories like load buttons and rod ends, this product guarantees precise data, durability, and straightforward installation—delivering excellent value for industrial force measurement requirements.
Buy Omega LC10120K stainless steel load cell now and ensure high precision and durability for your industrial weighing needs.
Frequently Asked Questions
Where can I buy OMEGA LC10120K?
You can click on the BUY or RFQ button to purchase LC10120K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC10120K?
You can download the LC10120K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC10120K?
OMEGA
