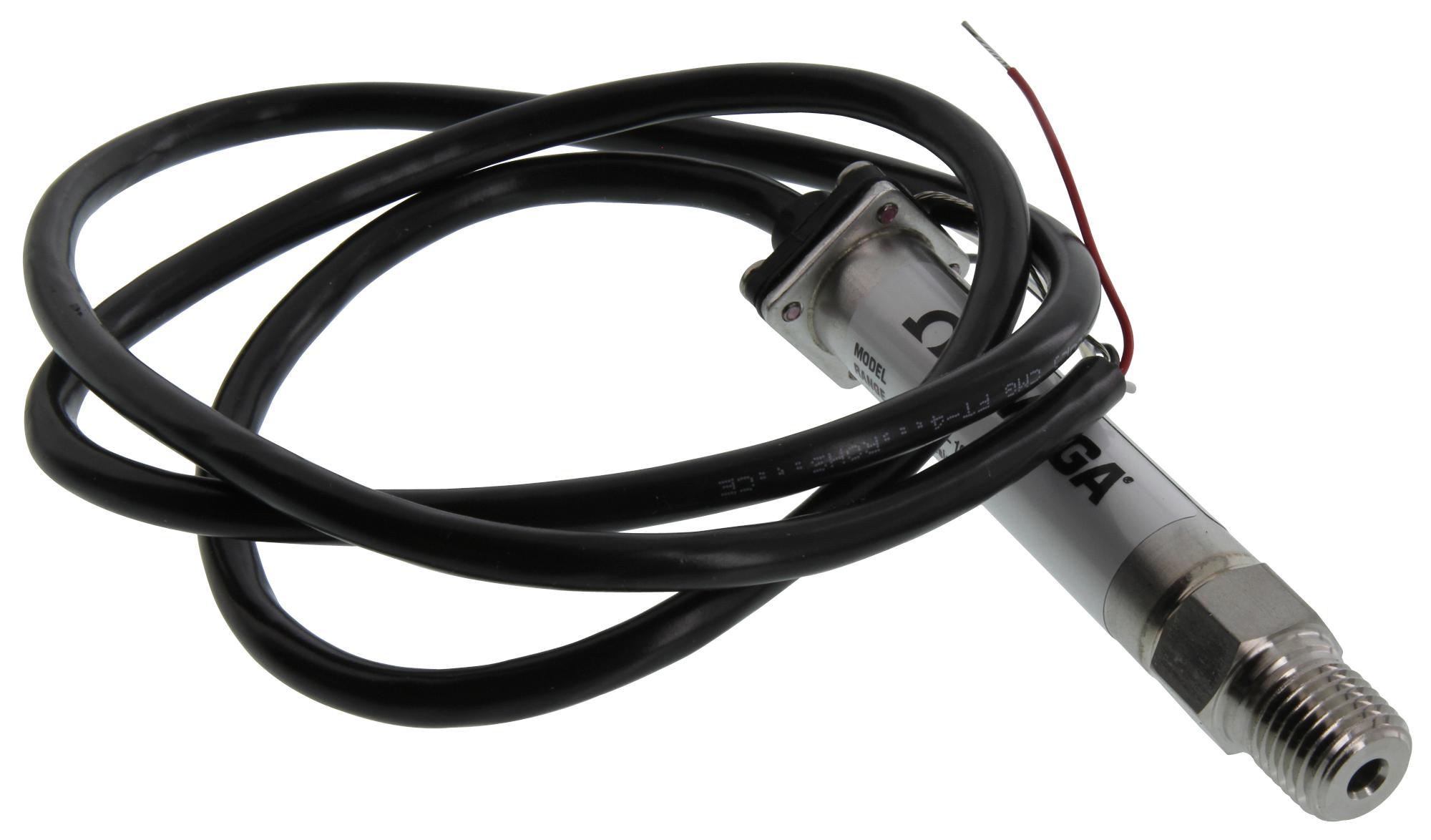

OMEGA PX605100GI pressure transducer
The PX605100GI is a high-accuracy thin-film pressure transducer designed for measuring vacuum to 20,000 psi. Made with rugged stainless steel, it offers excellent long-term stability and reliability. Features include a 1 to 5 Vdc output, optical zero and span adjustments, and a sealed construction suitable for liquid, gas, or vacuum applications. It has a temperature range from -55°F to 195°F, with minimal thermal zero and span effects. Ideal for industrial and laboratory pressure measurements requiring durable, precise sensing with quick 5 ms response time.
OMEGA PX605100GI pressure transducer Specifications:
- Excitation: 10 to 36 Vdc unregulated
- Output: 1 to 5 Vdc (3 wire)
- Supply Current: <3.0 mA
- Insulation Resistance: 100 MQ @ 50V
- Accuracy: +0.4% BFSL, ±0.2% full scale, ±0.05% full scale, ±1.0%/year
- Operating Temperature: -55°F to 195°F
- Compensated Temperature: -20°C to 82°C
- Thermal Zero Effect: +0.07% full scale/°C
- Thermal Span Effect: +0.07% full scale/°C
- Proof Pressure: 15 to 2000 psi, 3000 to 5000 psi, 7500 to 20000 psi
- Burst Pressure: 200% full scale for 15-500 psi, 50% for higher ranges
- Dimensions: Specific to model, rugged stainless steel case, 128 g weight
- Pressure Connection: NPT, female fittings for high-pressure ranges
- Electrical Connection: 0.9 m braided-shield PVC cable or connector
- Response Time: 5 ms
- Construction: Sealed units except for vented lower-range models
- Diaphragm Material: 17-4 PH stainless steel
- Sensor: Thin-film polysilicone diaphragm
- Compatibility: Compatible with DP3002-E, DP41-E, DP25B-E meters
Buy the Omega Series PX603 Pressure Transducer: PX605100GI
Experience precise and reliable pressure measurement with the Omega PX603 PX605100GI transducer, designed for vacuum to 20,000 psi. Its rugged stainless steel construction ensures durability and long-term stability across various environments. Featuring a 1-5 Vdc output, sealed design, and quick response time, it’s ideal for industrial, laboratory, and process control applications. Easy to install and calibrate, this transducer delivers consistent performance with minimal thermal effects, making it the perfect choice for demanding measurement tasks. Buy online now for dependable results.
Order your Omega Series PX603 PX605100GI pressure transducer today and ensure precise, reliable measurements for demanding industrial applications.
