OMEGA PRS3100AS0600D1NB9W Sanitary RTD Assembly

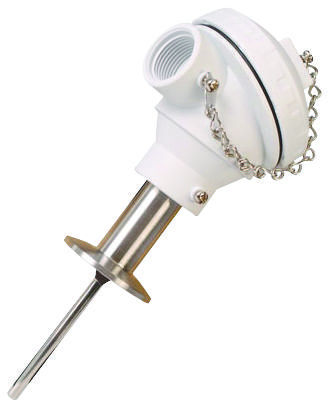

The PRS-3-100-A-S-0600-D1-NB9W is a sanitary, heavy-duty RTD assembly designed for industrial and hygienic applications. Equipped with a 4-wire Pt100 Class A element, it offers accurate temperature measurement from -50°C to 200°C. Features include a 1-inch Tri-Grip™ fitting, stepped probe with a diameter reduction for strength, and a white polypropylene protection head with screw cap, ensuring durability and protection in demanding environments. Suitable for process control, food processing, and pharmaceutical industries, it provides reliable, fast response temperature sensing with customizable options available.
OMEGA PRS3100AS0600D1NB9W Sanitary RTD Assembly Specifications:
- Probe Diameter: 1 inch stepped to 0.5 inch at tip
- Probe Lengths: 3 to 6 inches available
- Temperature Range: -50°C to 200°C (-58°F to 392°F)
- Sensor Type: 4-wire Pt100 Class A
- Fitting: 1 inch Tri-Grip™ (Tri-Clamp® compatible)
- Head Material: White polypropylene with screw cap
- Wetted Surfaces: 316L stainless steel with finish for cleanliness
- Connection: With 32-pin or better finish polypropylene head
- Options: Protective heads including large 316 SS head; probe and fitting variations
- Certifications: Suitable for industrial, sanitary, and process environments
Buy the Omega PRS-3-100-A-S-0600-D1-NB9W – Reliable Sanitary RTD for Industrial Applications
Enhance your industrial temperature measurement with the Omega PRS-3-100-A-S-0600-D1-NB9W sanitary RTD assembly. Featuring a durable 4-wire Pt100 Class A element, it ensures precise readings from -50°C to 200°C. The assembly includes a 1-inch Tri-Grip™ fitting, a stepped probe for strength and speed, and a white polypropylene protection head with screw cap for reliable operation. Available in lengths from 3 to 6 inches, customizable with options for protection heads and fittings, making it ideal for process control, food, and pharmaceutical industries. Order online now for quick delivery and superior accuracy.
Buy Omega PRS-3-100-A-S-0600-D1-NB9W now and experience unmatched reliability and performance in temperature sensing for industrial and sanitary applications.
Frequently Asked Questions
Where can I buy OMEGA PRS3100AS0600D1NB9W?
You can click on the BUY or RFQ button to purchase PRS3100AS0600D1NB9W from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PRS3100AS0600D1NB9W?
You can download the PRS3100AS0600D1NB9W datasheet or visit the OMEGA website for support.
Who is the manufacturer of PRS3100AS0600D1NB9W?
OMEGA
