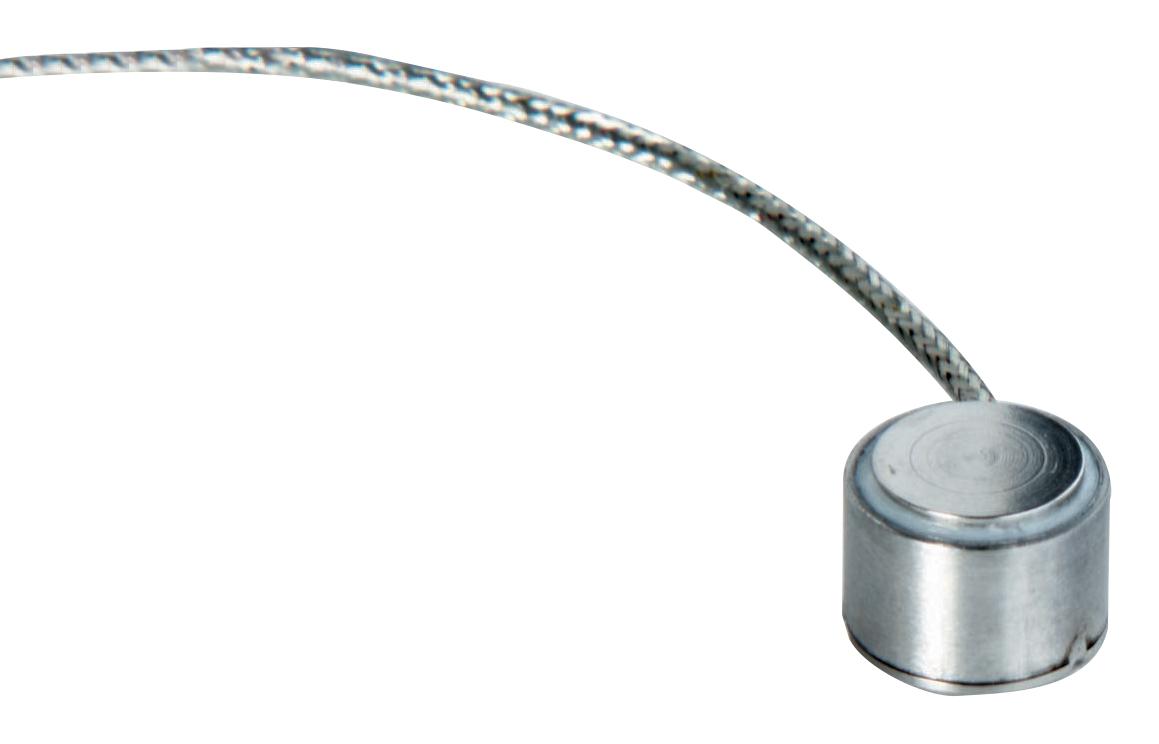

OMEGA LC3075K High-Capacity Load Cell
The LC307/LCM307 series are high-capacity miniature load cells designed for space-constrained applications requiring loads up to 100,000 pounds. Constructed entirely of stainless steel, these load cells feature high-performance strain gauges and incorporate temperature compensation via a miniature circuit board in the cable. Suitable for mounting on flat, smooth surfaces, they offer accurate, stable measurements with a rugged IP54 protection rating. Their all-metal design ensures durability and reliability in industrial weighing and force measurement systems across diverse environments, with precise output and overload protections.
OMEGA LC3075K High-Capacity Load Cell Specifications:
- Excitation: 5 Vdc
- Output: 1.5 mV/V nominal
- Accuracy: 0.75% FS BFSL
- Zero Balance: +2% FSO
- Operating Temp Range: -54 to 121°C
- Compensated Temp Range: 16 to 71°C
- Thermal Effects: Span +0.018% rdg/°C, Zero +0.018% FSO/°C
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Bridge Resistance: 350 Ω min
- Full Scale Deflection: 0.001 to 0.003 inches
- Electrical Connection: 4-conductor cable, 1.5 m
- Protection Class: IP54
Buy the Brand LC307 – Reliable Load Cell for Industrial Applications
Purchase the high-capacity load cell from Brand LC307 series today online to ensure your weighing systems are accurate, durable, and space-efficient. These rugged stainless steel load cells are perfect for demanding industrial environments requiring capacities up to 100,000 pounds. They feature temperature compensation, high overload protection, and IP54 enclosure. Easy to install on flat surfaces, they deliver precise measurements with a stable output. Improve your process reliability by ordering these reliable force sensors digitally, ensuring quick delivery and technical support for your industrial weighing needs.
Order your Brand LC307 series high-capacity load cell today and enhance your industrial measurement systems with durable, high-accuracy force sensing.
