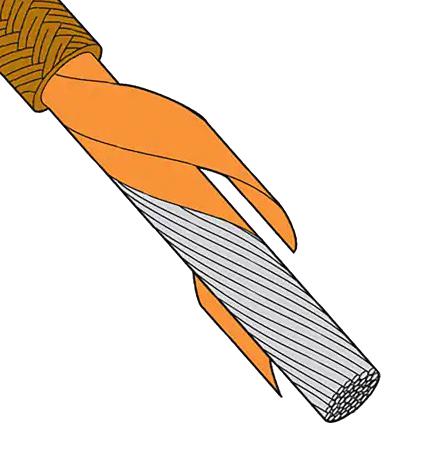

OMEGA HTMG1CU322SC50 High-Temperature Insulated Hook-up Wire
High-temperature hook-up wire designed for industrial and appliance applications, capable of withstanding up to 450°C (842°F). Constructed with stranded 27% nickel-coated copper conductors insulated with mica tape and glass braid overbraid, providing excellent thermal resistance and durability. Suitable for use in heating elements, furnaces, kilns, and heat-treating equipment. Available in various gauges, lengths, and voltages, certified by CSA, UL, and NRTL, ensuring compliance with safety standards. The wire has a natural tan color and is sold by the foot for versatile installation.
OMEGA HTMG1CU322SC50 High-Temperature Insulated Hook-up Wire Specifications:
- Conductor Material: Nickel-coated copper, stranded 27%
- Temperature Rating: Up to 450°C (842°F)
- Insulation: Mica tape with overbraid
- Conductor Gauge: 8 to 22 AWG
- Voltage Rating: 300V and 600V options
- Outer Diameter: 2.0 mm (0.08 inch) to 6.1 mm (0.26 inch) depending on gauge
- Weight: 2.5 kg/300 m to 34.2 kg/300 m depending on gauge
- Color: Natural (tan)
- Certification: CSA, UL Listed, NRTL
- sold by the foot, available in lengths from 50 to 499 feet
- Suitable for high-temperature industrial heating applications, heat treating furnaces, kilns, and heat elements
- Flexible stranded construction ensures durability and reliable performance in demanding environments
- High temperature insulation minimizes heat loss and prevents insulation degradation
Buy the Omega Series HTMG High-Temperature Heater Hook-Up Wire: HTMG-1CU-322S/C
Discover the reliable and high-performance Omega Series High-Temperature Hook-Up Wire, capable of withstanding temperatures up to 450°C. Crafted with durable mica tape insulation and nickel-coated copper conductors, it is ideal for industrial heating applications such as furnaces, kilns, and heat elements. Available in various gauges and lengths, certified by CSA, UL, and NRTL standards, ensuring safety and compliance. Purchase online today and equip your projects with the best high-temperature wiring solution for longevity and efficiency.
Order your Omega Series HTMG high-temperature heater hook-up wire today and ensure reliable performance in challenging thermal environments.
