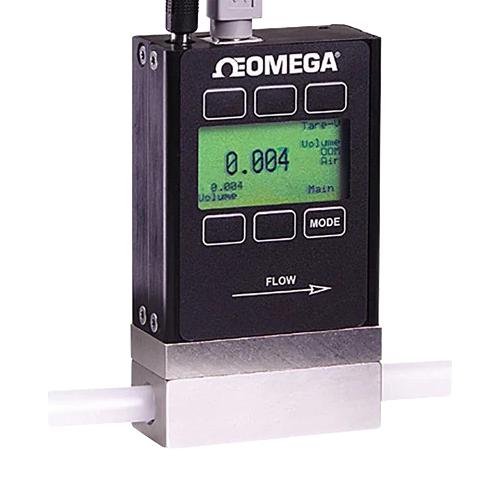

OMEGA FMA1608AVOL Gas Flow Meter
The Omega FMA-1600A series mass and volumetric flow meters utilize laminar flow principles to measure gas flow accurately. Incorporating differential pressure sensors, temperature, and pressure sensors, they correct readings to standard conditions. Supporting flow rates up to 20 SLM, they feature no need for straight pipe runs or warm-up time, making installation simple. Connectivity options include RS232, with calibration for over 130 gases, including pure and mixed types. Compact and portable versions with an integrated 18-hour battery are available. These flow meters are ideal for precise gas flow measurements in various industrial applications, equipped with durable wetted parts and robust design for reliable operation.
OMEGA FMA1608AVOL Gas Flow Meter Specifications:
- Accuracy: +0.8% of reading + 0.2% FS
- Repeatability: +0.2%
- Turndown Ratio: 200:1
- Response Time: 10 ms typical, adjustable via RS232
- Output: 0 to 5 V standard, optional 4 to 20 mA
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Max Pressure: 145 psig
- Flow Rate Range: 0 to 20 SLM (support for higher ranges with options)
- Supply Voltage: 7 to 30 Vdc
- Humidity Range: 0 to 100% non-condensing
- Wetted Parts: Stainless steel, FKM, silicone, glass reinforced PPS, brass, aluminum
- Connections: 8-pin mini DIN, 1/8-inch FNPT
- Includes: NIST certificate, operator’s manual, power supply
- Cable: 1.8m (6') with options for extended lengths and adaptors
Buy the Omega Series FMA-1600A Gas Flow Meter: FMA1608AVOL
Enhance your gas measurement accuracy with the Omega FMA-1600A series flow meters. Designed for clean gases, they provide precise mass and volumetric flow readings up to 20 SLM. Easy to install with no straight pipe requirements or warm-up time, these meters feature RS232 connectivity, extensive calibration options, and portable versions with an integrated battery. Ideal for laboratory, process, or industrial uses, they combine durability with high performance, ensuring your projects maintain optimal flow control. Shop online today for reliable, accurate gas measurement solutions.
Order your Omega Series FMA-1600A flow meter today and ensure precise, reliable gas flow measurements for your industrial applications.
