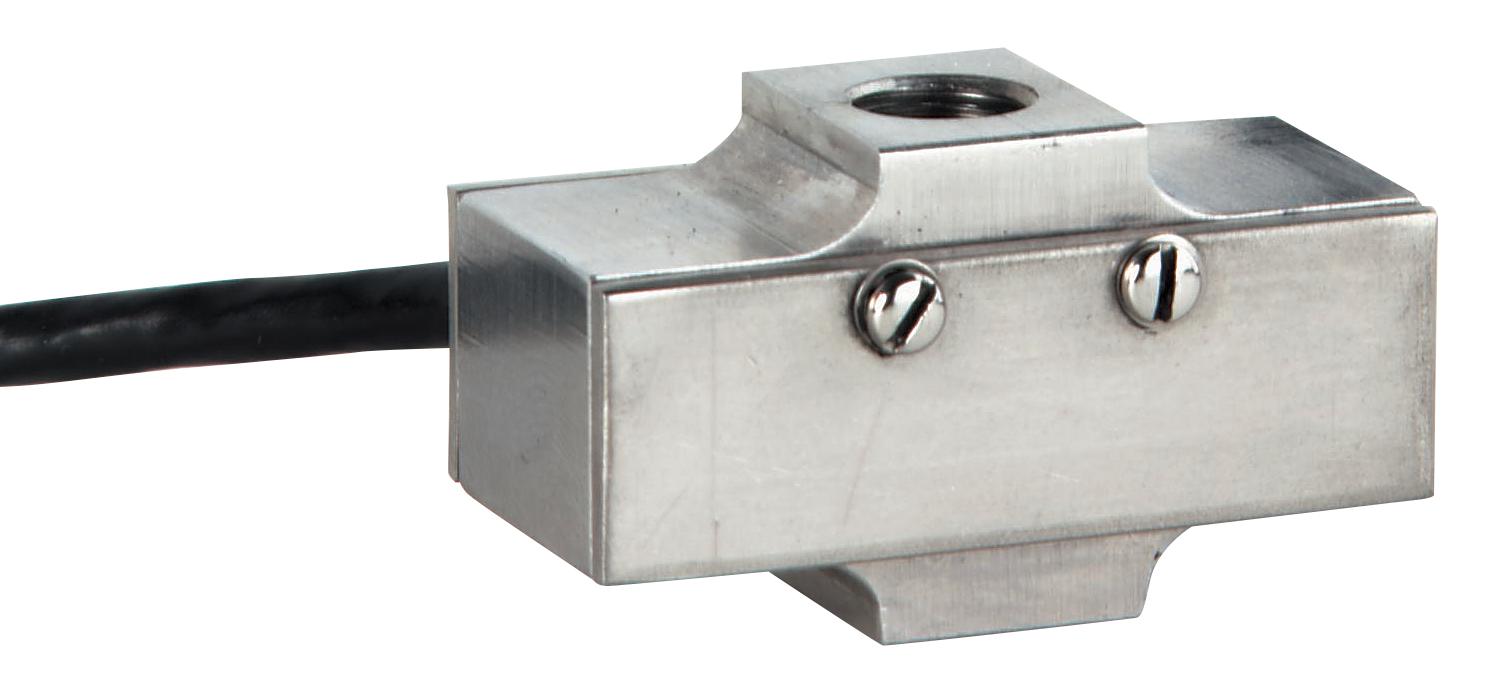

OMEGA LC703200 Tension Load Cell
The LC703/LCM703 Series are high-accuracy, low-profile tension and compression load cells suited for industrial applications such as robotics, weighing systems, and process control. Crafted from stainless steel and aluminum, they feature rugged, compact designs with a low profile of 19 mm to 25 mm, ensuring precise force measurement up to 1000 lb or 500 kgf. These load cells operate with 10 Vdc excitation, offer a 2 mV/V output, and include a 5-point NIST-traceable calibration, making them ideal for automation, industrial weighing, and tension measurement tasks.
OMEGA LC703200 Tension Load Cell Specifications:
- Excitation: 10 Vdc (15V max)
- Output: 2 mV/V nominal
- Calibration: 5-point, 0%, 50%, 100%, 50%, 0%
- Dimensions: 38 mm (1.50 inches) height, length varies by model
- Material: 17-4 PH stainless steel (for >100 lb) or Aluminum (<100 lb)
- Temperature Range: -16°C to 71°C (60°F to 160°F)
- Hysteresis: 16-71°C (60-160°F)
- Full Scale Deflection: 0.003 inches
- Protection Class: IP54
- Resistance: 360 Ω minimum, Output Resistance: 350 Ω ±10 Ω
- Maximum Overload: 150% of capacity, Ultimate Overload: 300% of capacity
- Cable Length: 3.6 meters (12 ft), 4-conductor PVC cable
Buy the Brand Series Tension Links: LC703200
Discover the precise and durable tension load cell from Brand Series, perfect for industrial weighing, robotics, and process control. Featuring rugged stainless steel and aluminum construction, this compact device provides high accuracy up to 1000 lb or 500 kgf. Equipped with a 5-point NIST calibration, 2 mV/V output, and IP54 protection, it offers reliable operation in demanding environments. Easy to integrate with standard meters like DPIS and compatible with accessories, this load cell ensures superior performance for your automation and measurement needs. Buy online now for fast delivery and consistent quality.
Get Brand LC703200 today—designed for precise force measurement and long-lasting industrial durability.
