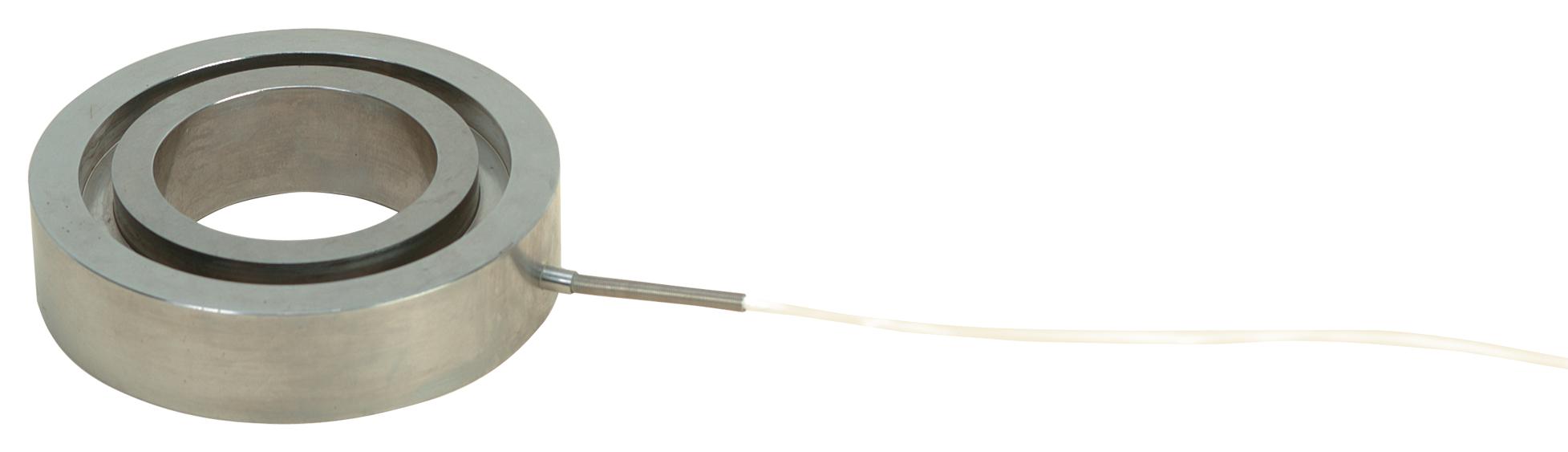

OMEGA LC8400213200K Large Through-Hole Load Cell
The large-through-hole load cells series are constructed from rugged stainless steel, designed to measure large forces with high precision. They feature a space-saving design with capacities ranging from 1K to 100K pounds, suitable for applications like loading large bolts or suspended loads. These load cells operate over a wide temperature range of -54°C to 121°C and provide reliable performance in harsh industrial environments. Their output is 2 mV/V nominal, with an input of 10 Vdc, and come with a 5-point NIST-traceable calibration for accurate measurements.
OMEGA LC8400213200K Large Through-Hole Load Cell Specifications:
- Output: 2 mV/V nominal
- Input: 10 Vdc (15 Vdc max)
- Accuracy Class: +0.5% linearity, hysteresis, and repeatability
- Zero Balance: +2.0% FSO
- Operating Temp Range: -54°C to 121°C
- Compensated Temp Range: 16°C to 71°C
- Zero Thermal Effects: +0.009% FSO/°C
- Span Thermal Effects: +0.018% rdg/°C
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Input Resistance: ≥360 Ω
- Output Resistance: 350 ±5 Ω
- Construction Material: 17-4 PH stainless steel
- Cable: 1.5 m (5 ft) 4-conductor shielded
- Dimensions: OD 4.00" (102 mm) for typical models, ID varies from 2.00" to 3.13"
Buy the BrandName LC8400 – Reliable Large ID Through-Hole Load Cell for Industrial Applications
Purchase the BrandName LC8400 large through-hole load cell today for accurate and reliable force measurement in demanding industrial settings. Crafted from corrosion-resistant stainless steel, these load cells offer high capacity, from 1K to 100K pounds, and feature a rugged design ensuring long-lasting performance. Perfect for suspended loads and large bolt applications, they include a NIST-traceable calibration for precision. Order online now to benefit from exceptional durability and performance tailored for engineering, manufacturing, and industrial automation needs.
Buy BrandName LC8400 load cell now and experience durable, high-accuracy force measurement for tough industrial environments.
