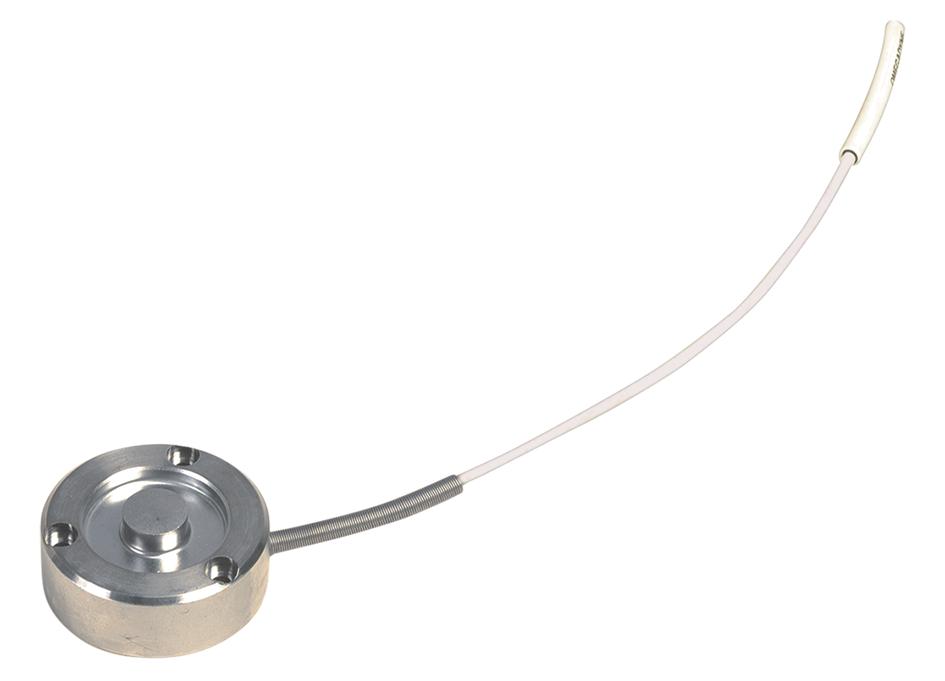

OMEGA LCGB2K Miniature Compression Load Cell
The LCGB-2K from Omega is a miniature, low-profile compression load cell designed for high accuracy and long-term stability. Constructed from stainless steel, it is suitable for demanding industrial environments. The load cell features a flat mounting surface with cap screw attachments and an integral load button for even force distribution. It has a capacity range from 0 to 2000 pounds, operates on 10V DC excitation with a nominal output of 2 mV/V, and offers excellent linearity, hysteresis, and repeatability specifications. The device functions effectively within a temperature range of -54°C to 121°C, with a compensated range of 16°C to 71°C. It can tolerate overloads up to 150% of its capacity and has a USB resistance of at least 350 ohms. Protected to IP54 standards, it includes a 5-foot, 4-conductor cable with strain relief and is compatible with DPiS, DP41-S, and DP25B-S measurement devices. The package contains the load cell, a 5-point NIST-traceable calibration, and 59K ohm shunt data.
OMEGA LCGB2K Miniature Compression Load Cell Specifications:
- Capacity: 0-2000 lb (0-907 kg)
- Material: Stainless steel
- Construction: Low-profile, flat mounting surface with load button
- Excitation: 10 V DC
- Output: 2 mV/V nominal
- Calibration: 5-point NIST-traceable, 0-50% to 100% load
- Temperature Range: -54°C to 121°C (-65°F to 250°F)
- Compensated Temperature Range: 16°C to 71°C (60°F to 160°F)
- Overload Capacity: 150% of capacity
- Ultimate Overload: 300% of capacity
- Bridge Resistance: ≥350 ohms
- Electrical Connection: 5' (1.5 m), 4-conductor cable with strain relief
- Protection Rating: IP54
- Thermal Effects: Span +0.018% rdg/°C, Zero +0.009% FSO/°C
- Deflection: 0.08 mm (0.003")
- Dimensions: Standard size; mounting hole size varies with capacity
- Compatibility: DPiS, DP41-S, DP25B-S measurement systems
Buy the Omega LCGB-2K – Reliable Compression Load Cell for Industrial Applications
Purchase the Omega LCGB-2K miniature compression load cell online today and benefit from high accuracy, robust stainless steel construction, comprehensive calibration, and compatibility with advanced measurement systems. Ideal for industrial applications requiring precise force measurement, this load cell offers IP54 protection, excellent temperature tolerance, and overload capacity. Secure your reliable, long-term solution now and ensure optimal performance in harsh environments with quick online ordering. Elevate your industrial weighing with this dependable and calibrated load cell.
Buy Omega LCGB-2K now and experience unmatched reliability, high accuracy, and durable performance for demanding industrial weighing tasks.
