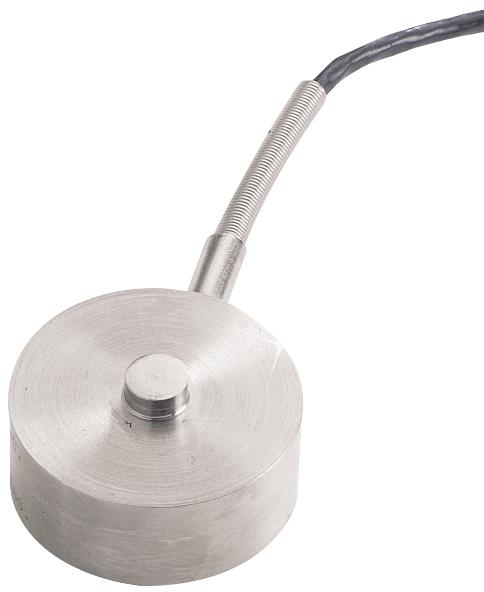

OMEGA LCGD250 Miniature compression load cell
The LCGD-250 from Omega is a miniature, low-profile compression load cell designed for precise force measurement in industrial environments. Made of stainless steel, it offers a capacity of 0 to 250 pounds, with excitation voltage of 10V DC and a nominal output of 2mV/V. It features high linearity (±0.25% FSO), hysteresis (±0.20% FSO), and repeatability (±0.10% FSO). Suitable for mounting on flat surfaces, it includes an integral load button, deflects 0.076mm (0.003 inches), and is IP65 rated. Operating temperature ranges from -54°C to 121°C, with overload safety at 150% of capacity. It connects via a 1.5m shielded cable, compatible with measurement systems like DPiS, DP41-S, and DP25B-S, and includes a 5-point NIST calibration and 59K ohm shunt data.
OMEGA LCGD250 Miniature compression load cell Specifications:
- Capacity: 0-250 lb
- Material: Stainless steel
- Excitation: 10 VDC
- Output: 2 mV/V nominal
- Linearity: ±0.25% FSO
- Hysteresis: ±0.20% FSO
- Repeatability: ±0.10% FSO
- Zero Balance: ±2% FSO
- Deflection: 0.076 mm (0.003 inches)
- Operating Temp Range: -54°C to 121°C
- Compensated Temp Range: 16°C to 71°C
- Overload Capacity: 150% safe, 300% ultimate
- Bridge Resistance: ≥350 ohms
- Electrical Connection: 1.5 m shielded cable
- Protection Class: IP65
- Mounting: Flat surface with integral load button
- Includes: Calibration, shunt data
Buy the Omega Series LCGD Load Cell: 250 lb Capacity
Order Omega LCGD-250 load cell online today to ensure high accuracy and durability for your industrial force measurement needs. This stainless steel device provides reliable performance under severe conditions, with excellent linearity and repeatability. Its low-profile design allows easy mounting on flat surfaces, and it features a robust IP65 protection rating. Includes calibration, a shielded cable, and full compatibility with measurement systems like DPiS, DP41-S, and DP25B-S. Perfect for demanding industrial environments requiring precise force measurement.
Buy Omega LCGD-250 load cell now and experience unmatched reliability and performance in precise force measurement applications.
Frequently Asked Questions
Where can I buy OMEGA LCGD250?
You can click on the BUY or RFQ button to purchase LCGD250 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LCGD250?
You can download the LCGD250 datasheet or visit the OMEGA website for support.
Who is the manufacturer of LCGD250?
OMEGA
