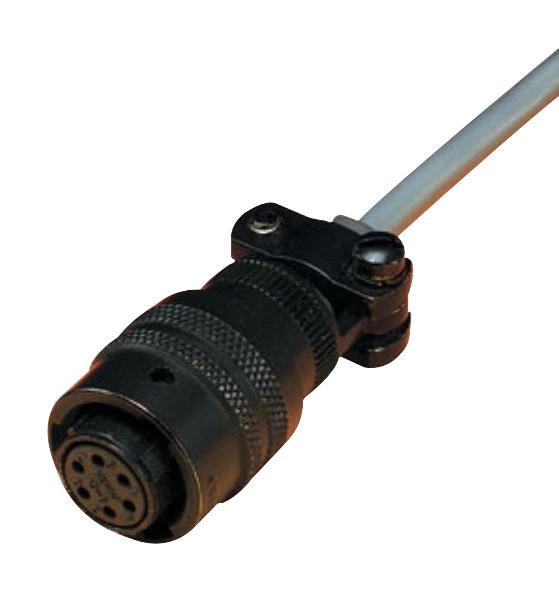

OMEGA PCS06E106S Pressure Transducer Connector
The PT Series connectors by Omega provide durable, pressure-compatible solutions for industrial pressure transducer connections. Featuring aluminum shells with high-grade plating, these connectors support temperatures up to 125°C (257°F) and are suitable for environmental resilience, with options for seismic, high-temperature, or sealed applications. The strain-relief cable clamp, soldered high-conductivity gold-plated copper contacts, and rugged construction ensure reliable signal and power connections in demanding industrial environments. Compatibility with multi-conductor cables and a rated voltage drop of 55 mV at 7.5 A make these connectors ideal for industrial instrumentation and control systems.
OMEGA PCS06E106S Pressure Transducer Connector Specifications:
- Insulation Resistance @ 25°C: 5000 MOQ min
- Voltage Drop: 55 mV max at 7.5 A with #20 contact and wire
- Shell Material: Aluminum alloy with cadmium plate and chromate or zinc coating
- Operating Temperature Range: -55°C to 125°C (-67°F to 257°F)
- Pressure Resistance: 30 psi (2 bar) at -55°C
- Number of Contacts: 4 or 6 depending on model
- Cable Size Compatibility: #20 AWG wire
- Environmental Protection: Suitable for indoor and protected outdoor use
- Durability: 500 coupling/uncoupling cycles
- Pin/Sockets: Male and female configurations, RoHS compliant
Buy the Omega PT Series – Reliable Connectors for Industrial Applications
Discover Omega PT Series pressure transducer connectors designed for industrial use, offering high durability, environmental resistance, and reliable signal connections. Featuring rugged aluminum shells with high-conductivity gold contacts, these connectors support temperatures up to 125°C and are equipped with strain-relief cable clamps for secure installation. Their corrosion-resistant coatings and multiple configurations make them ideal for demanding control and instrumentation applications in harsh environments. Purchase online now to ensure reliable, long-lasting performance for your industrial pressure measurement needs.
Get Omega PT Series connectors today—built for pressure transducer connections with high reliability and long-lasting durability.
Frequently Asked Questions
Where can I buy OMEGA PCS06E106S?
You can click on the BUY or RFQ button to purchase PCS06E106S from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PCS06E106S?
You can download the PCS06E106S datasheet or visit the OMEGA website for support.
Who is the manufacturer of PCS06E106S?
OMEGA
