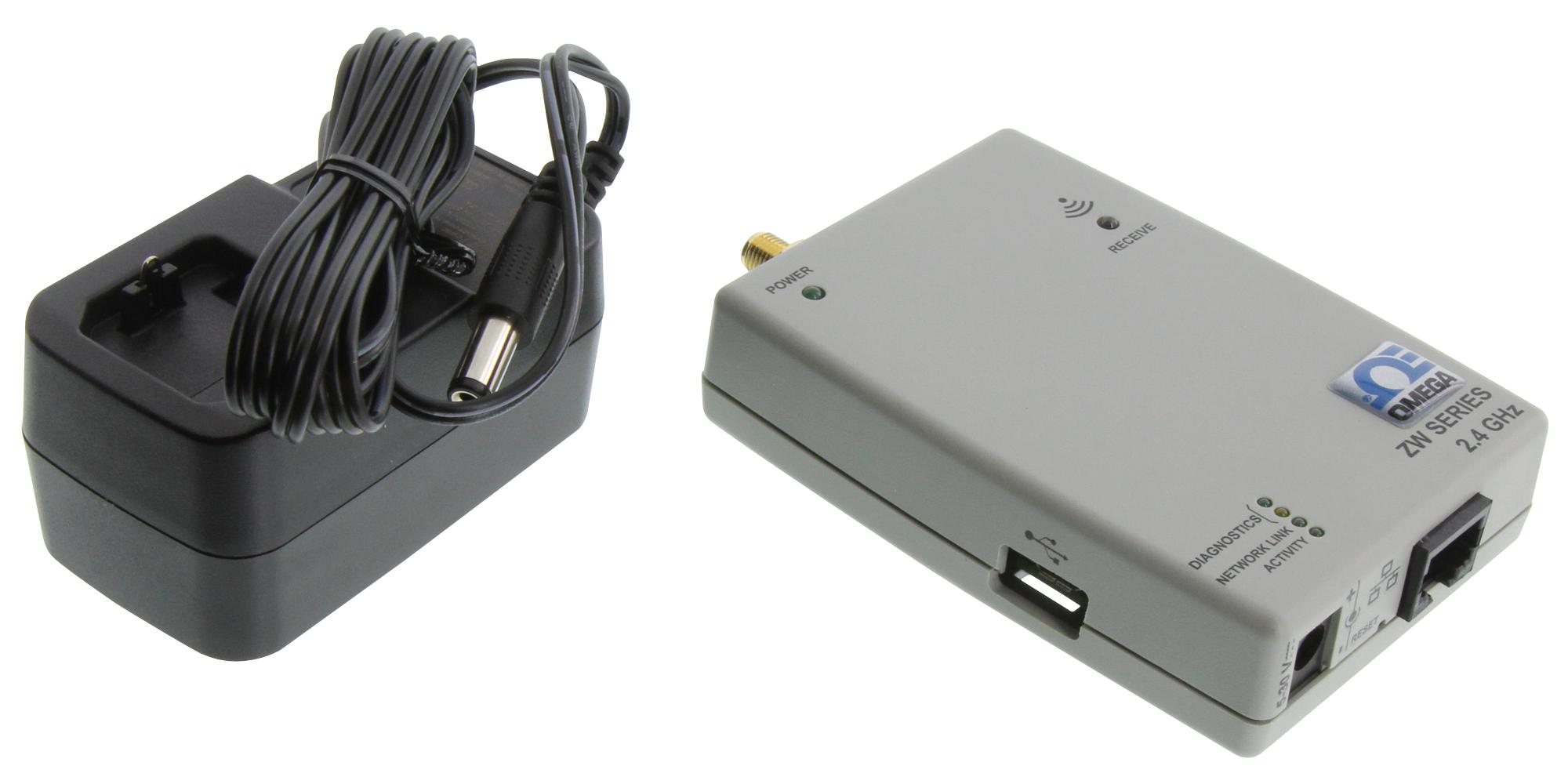

OMEGA ZWREC Wireless Receiver
The ZW-REC wireless receiver offers high-performance, long-range web-based monitoring of IEEE 802.15.4, 2.4 GHz wireless transmitters up to 1000 meters. It supports sensors such as ZW-ED, ZED-P, and UW Series, connecting via Ethernet for real-time data display and recording without extra software. Equipped with a built-in web server with SSL encryption, it can monitor temperature, humidity, barometric pressure, and infrared sensors. Supports up to 128 end devices, firmware updates, and email alarms for comprehensive data management in industrial environments.
OMEGA ZWREC Wireless Receiver Specifications:
- Wireless Communication: IEEE 802.15.4, DSSS
- Frequency: 2.4 GHz (2400 to 2483.5 MHz), 16 channels
- Network Topology: Star topology
- Transmit Power: 9.5dBm
- Receiver Sensitivity: -96dBm
- Range: Up to 1000 m (3280') without obstructions or interference
- Ethernet: RJ45, 10/100 Base-T
- USB: Micro-USB 2.0 Type B
- LED Indicators for power, diagnostics, network/link/activity
- Encryption: Up to 2048 bit
- Supported End Devices: Up to 128 for ZW series, 32 for Z series, 127 for UW series
- Input Voltage: 5 to 30 Vdc
- Input Power: 0.8 W maximum
- Power Adapter: 9 Vdc @ 0.5A, 100-240 V~, 50/60 Hz
- Operating Temperature: 0 to 40°C
- Environmental Range: 0 to 70°C, 90% RH non-condensing
- Certifications: EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU
- Agency Approval: ECCN 5A992
- Software Compatibility: OMEGA® Dashboard
Buy the Omega ZW-REC – Reliable Wireless Receiver for Industrial Applications
Enhance your industrial data collection with the Omega ZW-REC wireless receiver. Featuring long-range connectivity up to 1000 meters, it supports up to 128 sensors, ensuring comprehensive monitoring of temperature, humidity, and pressure. Equipped with SSL encryption and web-based access, it enables secure, real-time data visualization and recording through your browser or the OMEGA Dashboard. Its robust design includes Ethernet and USB ports, firmware updates, and email alarms, making it an ideal solution for demanding industrial environments requiring reliable wireless control and data acquisition.
Get Omega ZW-REC today—designed for reliable long-range wireless monitoring and industrial data management.
Frequently Asked Questions
Where can I buy OMEGA ZWREC?
You can click on the BUY or RFQ button to purchase ZWREC from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part ZWREC?
You can download the ZWREC datasheet or visit the OMEGA website for support.
Who is the manufacturer of ZWREC?
OMEGA
