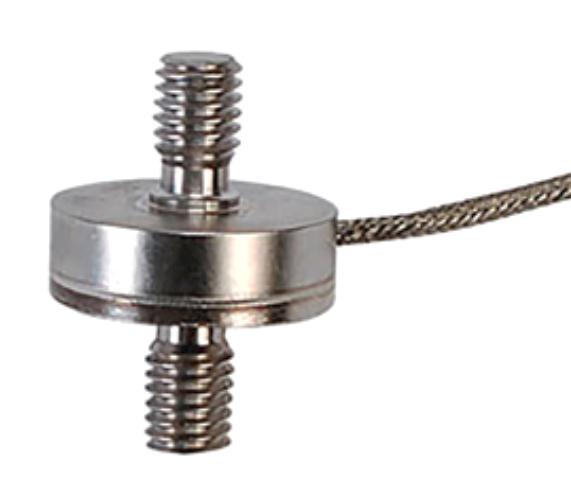

OMEGA LCM201100N Subminiature Load Cell
Omega’s LC201/LCM201 Series are high-precision, subminiature load cells designed for industrial automation and robotics. With a 19 mm diameter stainless steel construction, these miniature sensors provide excellent accuracy, long-term reliability, and easy installation via dual mounting studs. They are calibrated in tension with a 5-point calibration curve and feature a protectively IP54 rated enclosure. Suitable for demanding environments, these load cells operate over temperatures from -54°C to 121°C, with a safe overload capacity of 150%, making them ideal for precise force measurement in tight spaces.
OMEGA LCM201100N Subminiature Load Cell Specifications:
- Diameter: 19 mm (0.75 inches)
- Material: Stainless steel
- Excitation: 10 Vdc, 15 Vdc max
- Output: 2 mV/V nominal
- Accuracy: +1.0% FSO (linearity, hysteresis, repeatability)
- Calibration: 5-point in tension
- Zero Balance: +2% FSO
- Operating Temp Range: -54°C to 121°C
- Compensated Temp Range: 16°C to 71°C
- Protection Class: IP54
- Zero Thermal Effects: 0.018% FSO/°C
- Span Thermal Effects: 0.018% FSO/°C
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Input Resistance: >360 Ω
- Output Resistance: 350 Ω ±10 Ω
- Electrical Cable: 1.5 meters, 4-conductor shielded with compensation board
- Dimensions: Lc201 series - 14.28 UNF, typical; LOM201 series - MG x 1.00, typical
Buy the Buy Omega Subminiature Load Cell Part Number LCM201100N Online
Order the Omega LCM201100N subminiature load cell online today for precise, reliable force measurement in tight spaces. Ideal for robotics and automation applications, this stainless steel sensor offers high accuracy, easy mounting with dual studs, and ensures durability with an IP54 protection rating. Its extensive temperature range and calibration features make it perfect for demanding environments. Take advantage of fast shipping and excellent customer support by purchasing this high-quality subminiature load cell directly online, ensuring your projects stay on track with dependable performance.
Buy Omega LCM201100N now and experience unmatched reliability and performance in compact force measurement solutions for industrial automation.
