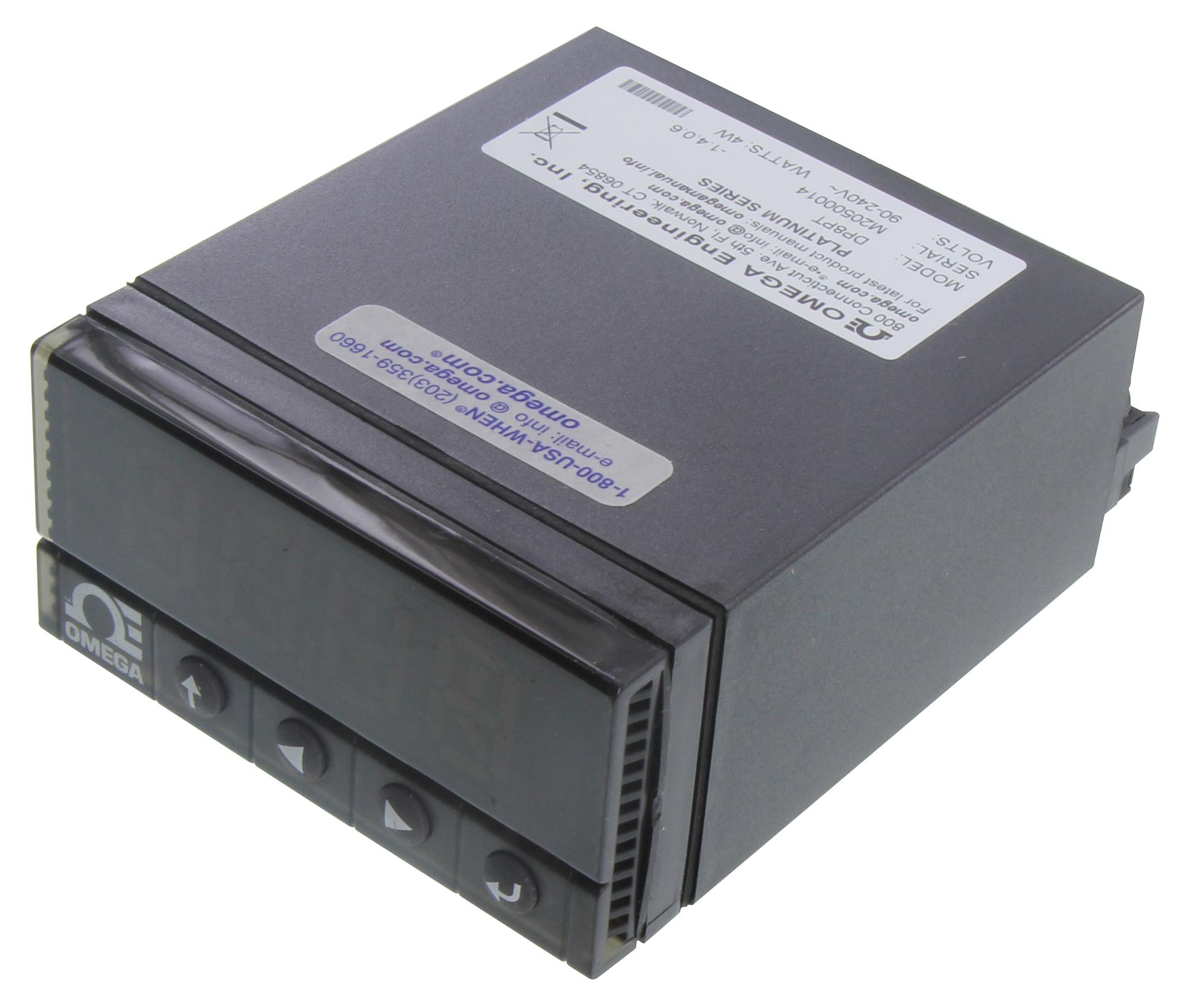

OMEGA DP8PT Digital Panel Meter
The PLATINUM Series digital panel meters are high-performance, versatile measurement devices designed for industrial process control. They support multiple input types including thermocouples, RTDs, thermistors, voltage, current, and strain, with firmware automatic configuration. Features include a 3-color LED display, multiple communication interfaces (USB, Ethernet, Serial), and optional alarms with relays. Housing options are NEMA 4 (IP65) or NEMA 1, suitable for demanding environments. These meters are ideal for precise temperature, voltage, current, and process measurements in industrial applications, offering user-friendly setup and extensive configurability.
OMEGA DP8PT Digital Panel Meter Specifications:
- Input Types: Thermocouple, RTD, thermistor, analog voltage, analog current, strain
- Current Input: 4 to 20 mA, 0 to 24 mA scalable
- Voltage Input: -100 to 100 mV, -1 to 1V, -10 to 10 Vde scalable
- Thermocouple Input (ITS 90): K, J, T, E, R, S, B, C, N
- RTD Input (ITS 90): 100/500/1000 Ω Pt sensors, 2-, 3- or 4-wire; 0.00385, 0.00392, or 0.003916 curves
- Thermistor Input: 2252 Q, 5K Q, 10K Q
- Display: 4-digit, 9 segment LED with 3-color programmable display
- Resolution: 0.1°C temperature; 10 LV process
- Communication: USB, optional Ethernet (TCP/IP), Serial (RS232/RS485) with MODBUS®
- Power Supply: 90-240 Vac, optional 12-36 Vdc low voltage
- Environmental: 0 to 50°C, 90% RH non-condensing
- Dimensions: DP8Pt: 48x96x127mm, DP16Pt: 48x48x127mm, DP32Pt: 48x96x25.4mm
- Panel Cutout: DP8Pt: 45x92 mm, DP16Pt: 45 mm square, DP32Pt: 22.5x45 mm
- Ingress Protection: NEMA 4 (IP65) or NEMA 1
- Certifications: UL, cUL, CE
- Alarm Outputs: Optional relays, programmable for high/low/band triggers
- Additional Features: Firmware auto-configuration, built-in excitation, remote latch reset, wide input compatibility
Buy the Omega DP8PT – Reliable Temperature and Process Measurement for Industrial Applications
Experience precise and versatile industrial measuring with the Omega Digital Panel Meter. Easy to install and configure, it supports multiple input types and communication options, including USB, Ethernet, and Serial. Its large color LED display and programmable alarms make it ideal for temperature, voltage, current, and process measurements. Built for demanding environments, the durable NEMA 4/IP65 or NEMA 1 housing ensures longevity. Upgrade your process control today with this reliable, user-friendly digital measurement solution designed to meet industrial standards.
Order your Omega Series DP8PT digital panel meter today and enhance your industrial process control with dependable measurement accuracy.
Frequently Asked Questions
Where can I buy OMEGA DP8PT?
You can click on the BUY or RFQ button to purchase DP8PT from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DP8PT?
You can download the DP8PT datasheet or visit the OMEGA website for support.
Who is the manufacturer of DP8PT?
OMEGA
