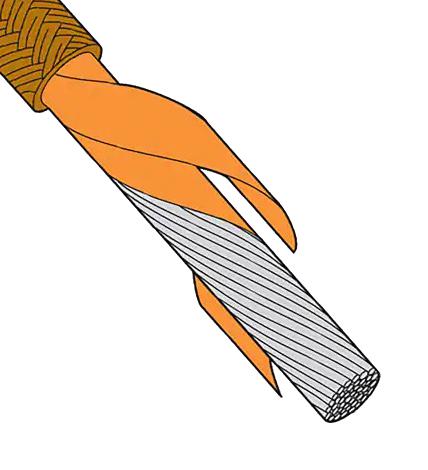

OMEGA HTMG1CU316SC250 High-Temperature Heater Wire
The HTMG Series high-temperature heater hook-up wire features stranded 27% nickel-coated copper conductors rated for up to 450°C (842°F). Designed for industrial and commercial heating applications, including furnaces, kilns, and heat treating equipment, the wire is insulated with treated glass braid and mica tapes for superior thermal stability and insulation. Available in multiple gauges and lengths, all models are CSA certified, UL listed, and suited for demanding environments requiring reliable electrical performance at high temperatures. Ideal for appliance wiring, industrial heating, and heat treatment facilities.
OMEGA HTMG1CU316SC250 High-Temperature Heater Wire Specifications:
- Conductor Material: Nickel-coated copper
- Conductor Type: Stranded 27%
- Temperature Rating: 450°C (842°F)
- Insulation: Treated glass braid and mica tapes
- Standards: CSA Certified, UL Listed, NRTL
- Gauges: 8, 10, 12, 14, 16, 18, 20, 22 AWG
- Voltage Rating: 300V and 600V options
- Nominal Outer Diameter: Ranges from 2.0 mm (0.08 inch) to 6.1 mm (0.26 inch)
- Weight: 2.5 kg/300 m (5.5 Ib/1000') to 34.2 kg/300 m (75.5 Ib/1000') depending on gauge
- Cable Length: Sold by the foot, with typical spool lengths from 50 to 499 ft
- Color: Natural (tan)
Buy the Omega Series HTMG High-Temperature Heater Wire: HTMG1CU316SC250
Order Omega high-temperature heater wire online today and enjoy fast delivery, proven durability, and reliable electrical performance at elevated temperatures up to 450°C. Perfect for industrial heat treatment, kilns, furnaces, and appliance wiring, this wire features stranded nickel-coated copper conductors with mica insulation for maximum thermal stability. Available in numerous gauges and lengths to meet your project needs, our CSA and UL certified wire guarantees safety and compliance. Enhance your heating systems with quality hook-up wire designed for demanding industrial environments.
Buy Omega HTMG high-temperature heater wire now and ensure reliable performance at operating temperatures up to 450°C for industrial heating and heat treating applications.
Frequently Asked Questions
Where can I buy OMEGA HTMG1CU316SC250?
You can click on the BUY or RFQ button to purchase HTMG1CU316SC250 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part HTMG1CU316SC250?
You can download the HTMG1CU316SC250 datasheet or visit the OMEGA website for support.
Who is the manufacturer of HTMG1CU316SC250?
OMEGA
