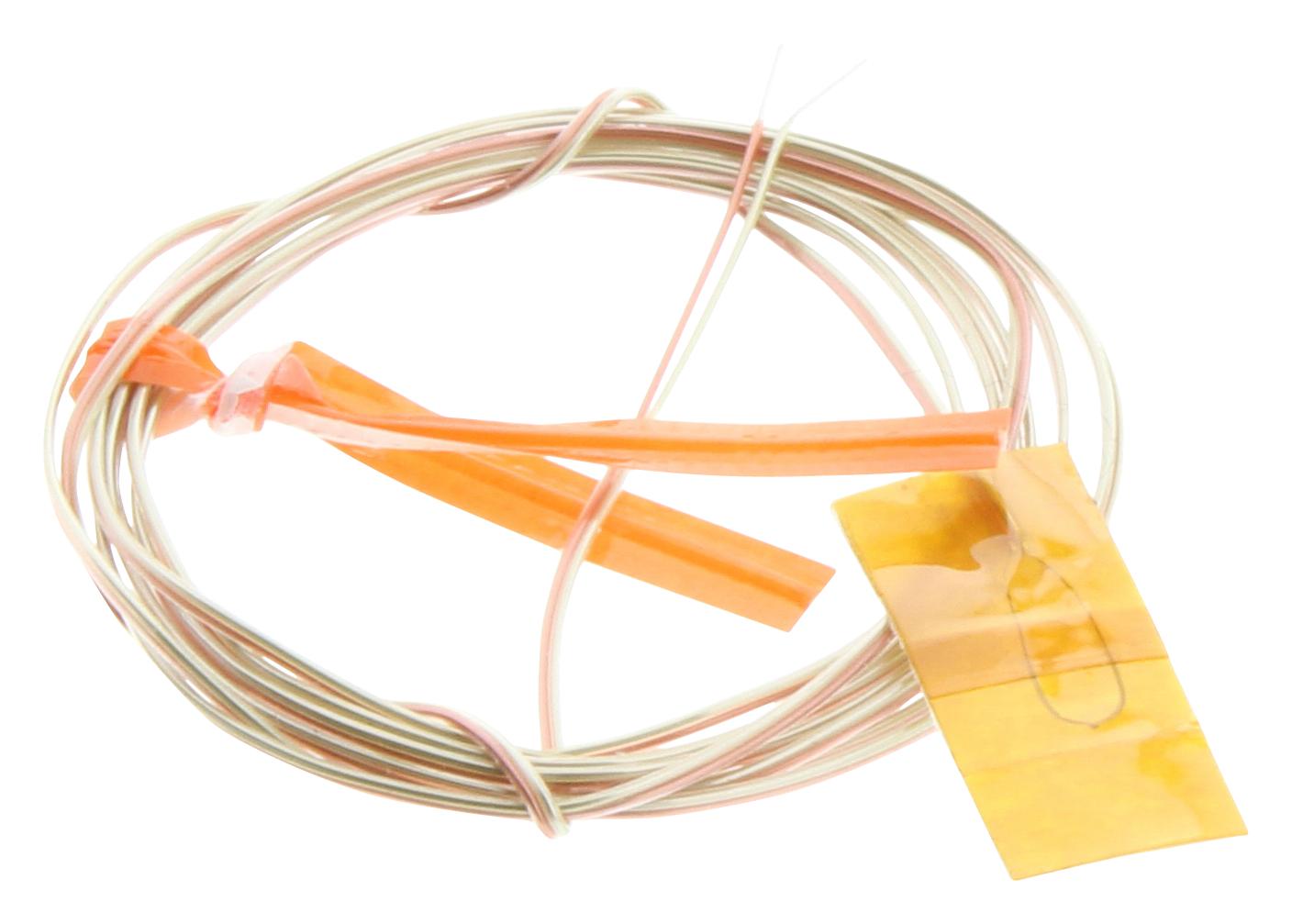

OMEGA SA3K Surface Thermocouples
The SA3 Series Fast Response Surface Thermocouples are designed with a polyimide carrier and self-adhesive backing for quick installation and precise temperature measurement. Suitable for outdoor and wet environments, they offer reliable performance with minimal impact from sunlight, chemicals, or oils. Available in Type J, K, T, and E thermocouples, with ANSI or IEC color codes, these thermocouples feature a low-mass junction for rapid response, and come with either stripped #30 AWG solid leads or miniature color-coded connectors. Their durable construction ensures accuracy in a temperature range of -40 to 260°C, making them ideal for industrial, scientific, and environmental applications.
OMEGA SA3K Surface Thermocouples Specifications:
- Thermocouple Types: J, K, T, E (ANSI or IEC color codes)
- Temperature Range: -40 to 260°C (-40 to 500°F)
- Sensor Temperature Range: -17 to 260°C (0 to 500°F)
- Connector Temperature Range: -29 to 180°C (-20 to 356°F)
- Insulation Resistance: Minimum 100 MQ at 100 Vdc
- Construction: Polyimide tape base with silicone adhesive, glass-filled nylon connector (when specified), PFA insulated 30 AWG cable
- Accuracy: Special limits of error
- Mounting: Self-adhesive backing with chemical and oil resistance
- Leads: Stripped #30 AWG solid or miniature color-coded connector
- Dimensions: Approximate length variations between 1m, 2m, and 3m, with specific sizes provided
- Application: Suitable for outdoor, wet, sunlight, and chemical environments with fast response times
Buy the Buy Brand Thermocouples Part Number SA3K Online
Order Brand SA3K surface thermocouples online for fast, reliable temperature measurement in challenging environments. Featuring a self-adhesive polyimide carrier, these thermocouples deliver quick response times, chemical and oil resistance, and accurate readings from -40 to 260°C. With options in Type J, K, T, and E, and available with stripped leads or miniature connectors, they are ideal for industrial, scientific, and outdoor applications requiring durable and precise temperature sensing.
Get Brand SA3K thermocouples today—built for rapid response, chemical resistance, and durable outdoor performance.
Frequently Asked Questions
Where can I buy OMEGA SA3K?
You can click on the BUY or RFQ button to purchase SA3K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SA3K?
You can download the SA3K datasheet or visit the OMEGA website for support.
Who is the manufacturer of SA3K?
OMEGA
