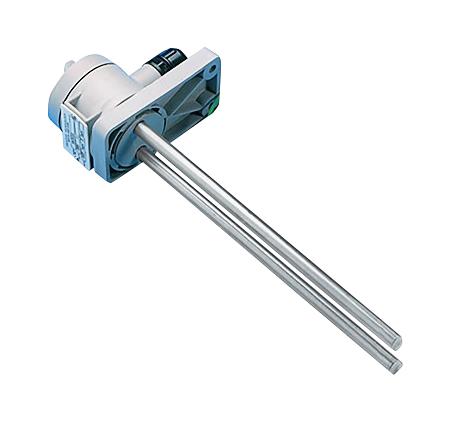

OMEGA VP107120V Immersion Heater
The VP Series and VPT Series are self-regulating immersion heaters designed for small tanks and vessels, suitable for use with oils, fluids, and corrosive environments. Available with stainless steel or PFA-covered sheaths, these heaters feature solid state heating elements that ensure temperatures up to 100°C (212°F). They are lightweight, rapidly heating, and include accessories such as PVDF screw plug adapters and polypropylene mounting flanges for easy installation. Ideal for space-constrained applications, they provide uniform heating with auto-stabilized temperatures, preventing hot spots and overheating.
OMEGA VP107120V Immersion Heater Specifications:
- Wattage: VP-107, VPT-107: 100 W; VP-311, VPT-311: 300 W
- Voltage: 120 or 240 Vac
- Power Leads: VP-107, VPT-107: 1.2 m (4') cord; VP-311, VPT-311: 0.9 m (3') conduit
- Sheath Length: VP-107, VPT-107: 179 mm (7 inches); VP-311, VPT-311: 279 mm (11 inches)
- Heated Length: last 76 mm (3 inches) for VP-107 series; last 152 mm (6 inches) for VP-311 series
- Diameter: VP Series: 11 mm (0.43 inches); VPT Series: 13 mm (0.51 inches)
- Shipping Weight: Approx. 453 g (1 lb)
Buy the Omega Series VP Immersion Heater: VP107120V
Purchase the Omega Series VP immersion heater today for dependable, auto-stabilized heating up to 100°C. Designed for small tanks and corrosive applications, these lightweight and rapid-heating units feature stainless steel or PFA coverings. They include a 3-wire grounded connection, flexible power cords, and mounting accessories for easy installation. Ideal for fluids, oils, and plating cells, the heaters ensure uniform temperature control, prevent hot spots, and offer versatile options for temperature regulation in confined spaces. Shop online now for fast delivery.
Buy Omega Series VP immersion heater with stainless steel or PFA sheaths now and enjoy reliable, uniform heating in small tanks and corrosive environments.
Frequently Asked Questions
Where can I buy OMEGA VP107120V?
You can click on the BUY or RFQ button to purchase VP107120V from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part VP107120V?
You can download the VP107120V datasheet or visit the OMEGA website for support.
Who is the manufacturer of VP107120V?
OMEGA
