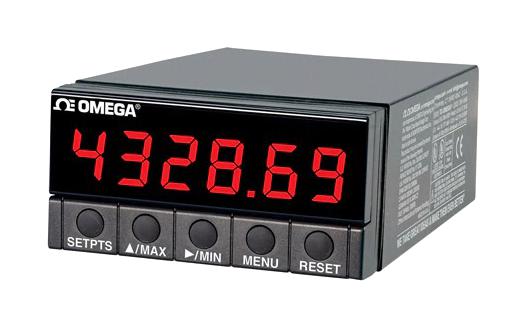

OMEGA DP41ES2A Process Indicator
The DP41ES2A is a high-performance digital panel meter suitable for industrial applications, offering multiple input options including thermocouple, RTD, voltage, and current. It features a 6-digit LED display, alarm/control capabilities, and optional communication modules like RS232/RS485 and analog outputs. The meter provides high accuracy (+0.005% rdg), fast response times, and calibration with NIST tables. Suitable for process monitoring, strain gages, and temperature measurements, it is designed for durability with NEMA 4/IP65 front panels and broad operating temperature ranges.
OMEGA DP41ES2A Process Indicator Specifications:
- Display: 6-digit, 14-segment LED, available in red or green, 13.7 mm high
- Accuracy: +0.005% reading, ±0.2°C for thermocouple/RTD
- Input Types: Thermocouple (9 types), RTD (2, 3, 4-wire), voltage, current
- Resolution: 15-bit, dual-slope conversion method
- Response Time: 1 to 99.9% step response
- Operating Environment: 0 to 50°C, 95% RH non-condensing
- Power Supply: 115V or 230V AC, 10-32 V DC options available
- Dimensions: 48 mm H x 96 mm W x 165 mm D (1.89 x 3.78 x 6.5 inches)
- Panel Cutout: 45 mm H x 92 mm W
- Outputs: 4 open-collector setpoints rated 150 mA, optional dual relays (7A/30V, 230V), optional BCD, analog, and communication modules
- Protection: NEMA 4/IP65 front panel, splashproof lens available
- Communication: RS232/RS485 optional, baud rate up to 19.2K
- Calibration: Complete NIST calibration tables for thermocouples and RTDs
- Additional Features: Min/max storage, peak/valley detection, digital tare, front-panel programming
- Mounting: Panel or surface mount with optional accessories
- Weight: 574 g (1.27 lb)
Buy the Buy Omega DP41ES2A High-Performance Process Indicator Online
Purchase the Omega DP41ES2A high-performance process indicator online today to ensure optimal accuracy for thermocouple, RTD, voltage, and current measurements. With advanced features like alarm/control, serial communication options, and high-resolution display, this durable meter is ideal for process monitoring, strain gages, and temperature sensing in industrial environments. Easy front-panel programming and calibration with NIST tables make it suitable for demanding applications, providing reliable measurement and control at competitive prices.
Order your Omega DP41ES2A high-precision process meter today and enhance your industrial measurement accuracy and control capabilities.
Frequently Asked Questions
Where can I buy OMEGA DP41ES2A?
You can click on the BUY or RFQ button to purchase DP41ES2A from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DP41ES2A?
You can download the DP41ES2A datasheet or visit the OMEGA website for support.
Who is the manufacturer of DP41ES2A?
OMEGA
