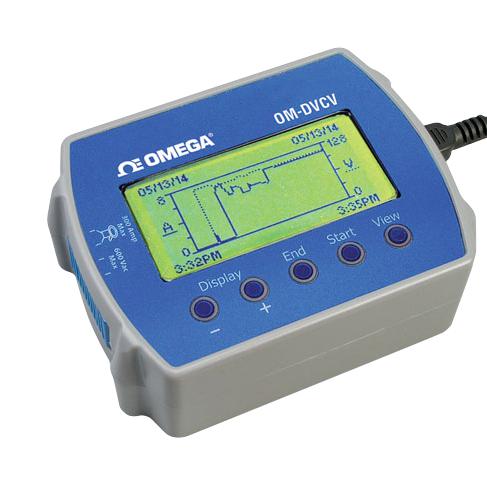

OMEGA OMDVCV AC Data Logger
The OM-DVCV is a high-precision, self-contained AC current and voltage data logger with a display, capable of measuring true RMS signals up to the 21st harmonic at 60 Hz. It records AC current up to 300A and voltage up to 600V, storing over 21,000 data points for detailed trend analysis. The device features real-time measurement display, graphical trend visualization, alarms for over and under voltage/current, and easy Windows software configuration. Ideal for MRO, industrial troubleshooting, and electrical process monitoring, it combines accuracy, robust data logging, and versatile connectivity for professional electrical diagnostics.
OMEGA OMDVCV AC Data Logger Specifications:
- Measurement Type: True RMS up to the 21st harmonic at 60 Hz
- Current Range: 1 to 300 Aac
- Current Accuracy: +1.0A
- Current Resolution: 0.2 A
- Voltage Range: 1 to 600 Vac
- Voltage Accuracy: +0.4V
- Voltage Resolution: 0.2V
- Display: Real-time current, voltage, and power (Watts) with logging summary
- Graph Display: Trends with scrolling feature
- Sample Point Capacity: 43,344 points for current or voltage only, 21,672 points for both
- Alarms: Visual over/under alarm indicators for current and voltage
- Power: Three AA batteries, approximately 1-year runtime
- Operating Temperature: -10°C to 65°C
- Storage Temperature: -20°C to 70°C
- Dimensions: 10.2 W x 7.7 H x 3.8 cm D
- Weight: 200 g
- Communication: USB interface for Windows OS
- Sampling Interval: 1 sec to 9 hours, adjustable
- Data Export: Text and Excel formats
- Includes: Probes, USB cable, software on CD, manuals, batteries
Buy the Omegad DVCV Series AC Current Voltage Data Logger: OMDVCV
Purchase the Omegad DVCV Series AC current and voltage data logger online today. This versatile device offers accurate real-time measurements, extensive data storage, and graphical trend analysis. Equipped with alarms, flexible sampling intervals, and easy Windows software, it is ideal for industrial maintenance, troubleshooting, and process monitoring. Reliable and user-friendly, the DVCV ensures precise diagnostics for electrical systems, making it the perfect choice for professionals needing dependable logged data, effective troubleshooting, and detailed analysis of AC currents and voltages in a variety of industrial settings.
Order your Omegad DVCV Series AC current and voltage data logger today and enhance your electrical troubleshooting and monitoring projects with reliable precision.
Frequently Asked Questions
Where can I buy OMEGA OMDVCV?
You can click on the BUY or RFQ button to purchase OMDVCV from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part OMDVCV?
You can download the OMDVCV datasheet or visit the OMEGA website for support.
Who is the manufacturer of OMDVCV?
OMEGA
