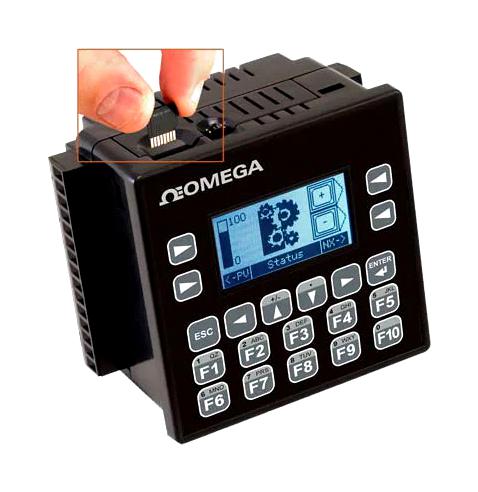

OMEGA HEXT103 Graphical Operator Control Station
The XL series operator control station combines a programmable logic controller with a graphical human-machine interface, offering compact size and versatile features. Its sunlight-readable 160 x 128 touchscreen, built-in 12 DC inputs—including four high-speed counters—12 DC outputs with PWM options, and two selectable analog inputs support diverse industrial automation tasks. Networking capabilities, removable MicroSD™ storage, and a user-friendly interface facilitate easy data management, program updates, and remote access. Powered by Cscape™ software, this robust control device is suitable for machine control, process automation, and remote telemetry applications in various industries.
OMEGA HEXT103 Graphical Operator Control Station Specifications:
- Display: 160 x 128 high-resolution LCD touchscreen, daylight readable
- Total Keys: 5 function keys and 1 system key
- Controller Memory: 256 KB application memory
- Logic Scan Rate: 1.2 mS/K
- Digital Inputs: 12, including 4 high-speed counters (HSC)
- Digital Outputs: 12 DC, 0.5 A per point, PWM capable
- Analog Inputs: 2, selectable between 0-10V and 4-20mA
- Analog Outputs: 2, selectable between 0-10V and 4-20mA
- External Storage: MicroSD™ card slot supporting up to 2 GB
- Networking: Optional Ethernet and telephone modem cards, CsCAN bus support
- Power Supply: 12-24 Vdc compatible
- Physical Dimensions: Height 95.1 mm, Width 95.1 mm, Depth 63.9 mm
- Weight: 0.354 kg
- Operating Environment: 0 to 50°C, NEMA 4X (IP66) for washdown resistance
Buy the Omega Series XL Series HMI: HEXT103
Ensure seamless control and data management with the Omega XL series operator control station. Featuring a sunlight-readable touchscreen, versatile I/O options, and removable MicroSD storage, it’s perfect for machine control, process automation, and remote telemetry. Its compact size allows easy installation in diverse environments. Supporting industry-standard Cscape™ software, it enables quick program updates and efficient operation. Whether for OEM machinery or plant-wide control, this robust device combines advanced features with affordability, delivering superior performance and flexibility in industrial automation tasks.
Buy Omega XL series HEXT103 now and experience unmatched reliability and high-performance industrial automation with integrated networking and removable storage.
Frequently Asked Questions
Where can I buy OMEGA HEXT103?
You can click on the BUY or RFQ button to purchase HEXT103 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part HEXT103?
You can download the HEXT103 datasheet or visit the OMEGA website for support.
Who is the manufacturer of HEXT103?
OMEGA
