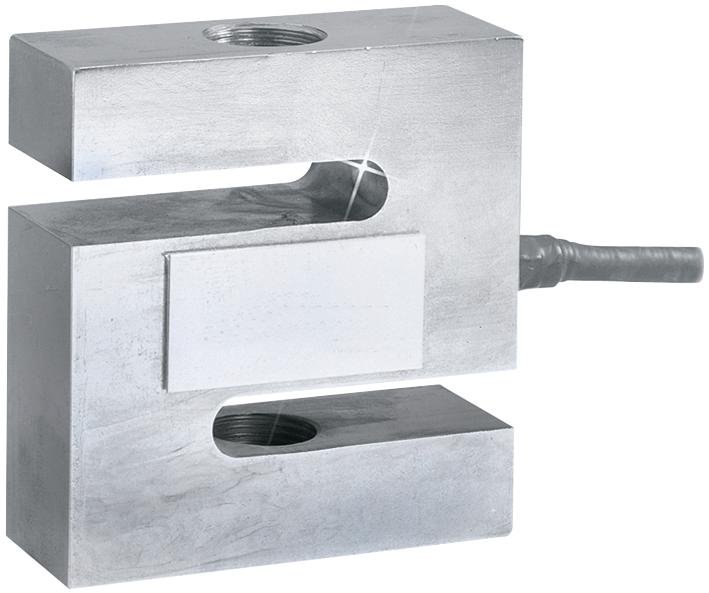

OMEGA LC10125 stainless steel load cell
The all stainless steel load cells offer high accuracy and economical pricing, designed for harsh industrial environments requiring tension and compression measurement. They feature a capacity range from 0-25 Ib to 0-40,000 Ib, with optional rod end and load button accessories. These load cells are NIST-traceable, with 0.25% interchangeability, 5-point calibration, and sealed construction for durability. They operate over -40°F to 200°F, with zero and span temperature effects at 0.002% FSO/°C, making them suitable for demanding industrial applications involving heavy loads and precise force measurement.
OMEGA LC10125 stainless steel load cell Specifications:
- Material: Stainless steel 17-4 PH
- Capacities: 0-25 Ib to 0-40,000 Ib, 0-10 kgf to 0-10,000 kgf
- Excitation Voltage: 10 Vdc, max 15 Vdc
- Output: 3 mV/V +0.0075 mV/V
- Sealing: +0.03% FSO (0.1% 40 K), +0.02% FSO (0.1% 40 K)
- Operating Temp Range: -40 to 200°F
- Compensated Temp Range: 17 to 71°C (60 to 160°F)
- Zero Temperature Effect: 0.002% FSO/°C
- Span Temperature Effect: 0.002% FSO/°C
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Dimensions: Variable, based on model, typical size for standard models around 98 mm height, 64 mm diameter
- Input Resistance: 350 ±10 Ω
- Output Resistance: 350 ±10 Ω
- Full Scale Deflection: 0.010 to 0.020 inches
- Construction: Corrosion-resistant stainless steel
- Mating Connectors: M6, M12, M16, M24 options available
Buy the Omega LC101 – Reliable Force Measurement for Industrial Applications
Promote precise force measurement with these stainless steel load cells designed for demanding industrial environments. Ranging from 25 lb to 40,000 lb, they feature sealed construction, high accuracy, and versatile accessories like load buttons and rod ends. Ideal for tension and compression, these load cells are equipped with NIST-traceable calibration and operate over wide temperature ranges. Order online today to experience reliable, long-lasting performance in heavy-duty applications, ensuring your operations remain precise and efficient.
Get Omega LC101 load cells today—built for precision, durability, and harsh industrial environments.
Frequently Asked Questions
Where can I buy OMEGA LC10125?
You can click on the BUY or RFQ button to purchase LC10125 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC10125?
You can download the LC10125 datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC10125?
OMEGA
