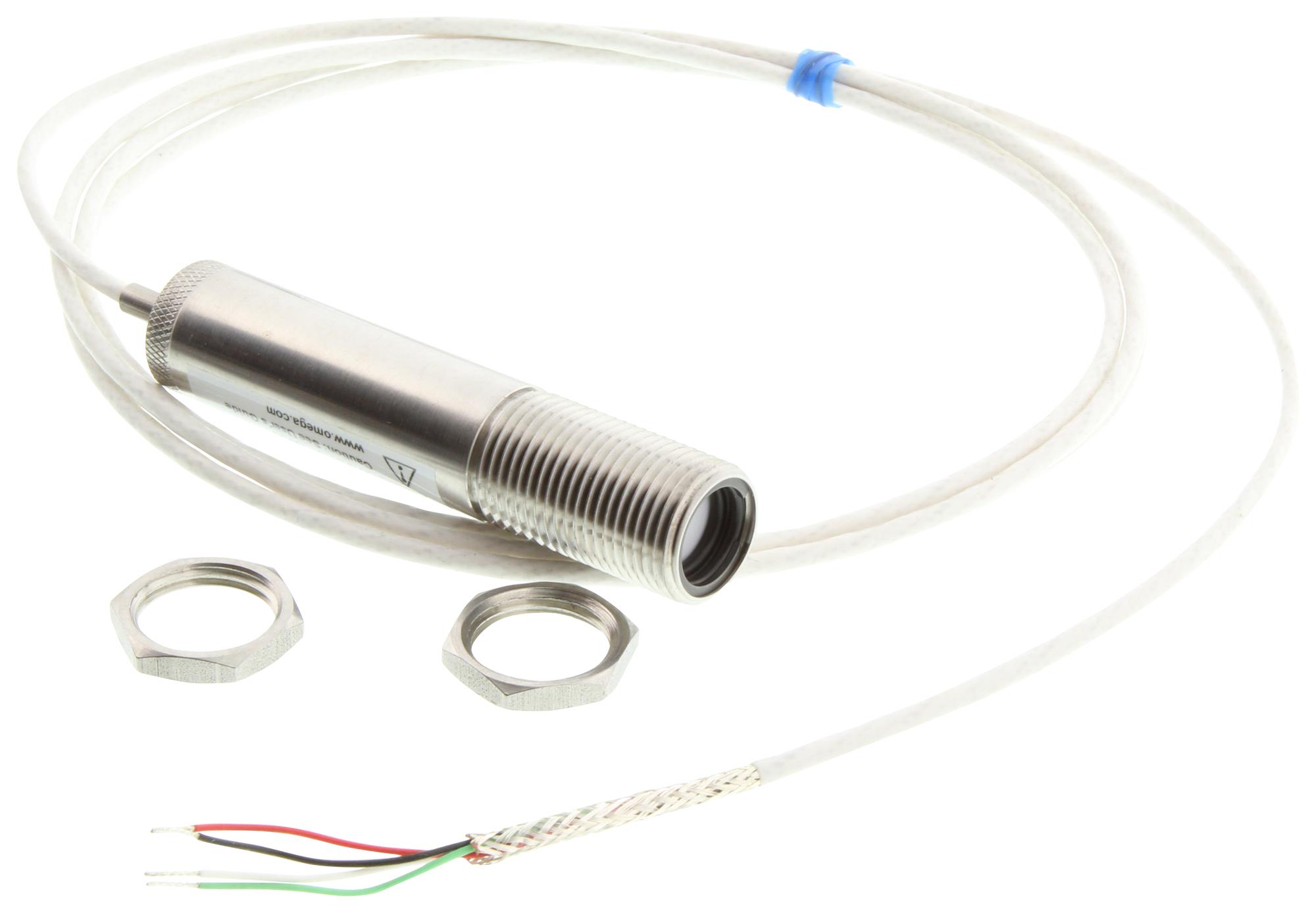

OMEGA OS136A1V2 Infrared Temperature Sensor
The OS136 infrared temperature sensor/transmitter is a compact, stainless steel device designed for fast, accurate non-contact temperature measurement in harsh environments. Featuring models with temperature ranges from -18 to 202°C or 149 to 538°C, it offers industry-standard analog outputs, fixed emissivity of 0.95, and a rugged NEMA 4 (IP66) housing. The sensor's optical field of view is 6 to 1, with a response time of 150 ms, making it ideal for confined or hard-to-reach applications. Supplied with mounting nuts, shielded cable, and manual, it is widely used in industrial thermometry.
OMEGA OS136A1V2 Infrared Temperature Sensor Specifications:
- Temperature Range: -18 to 202°C or 149 to 538°C depending on model
- Accuracy at 22°C: 3% of reading or 4.4°C (8°F) for OS136-1, 3% or 5.5°C (10°F) for OS136-2
- Repeatability: 1% of reading
- Optical Field of View: 6 to 1
- Spectral Response: 5 to 14 microns
- Response Time: 150 milliseconds
- Emissivity: Fixed at 0.95
- Output Options: 4-20 mA, 0-5 V, 0-10 V, Type K thermocouple, 10 mV/°C or °F
- Power Supply: 12-24 Vdc, 50 mA
- Housing: 19 mm OD stainless steel, rated NEMA 4 (IP66)
- Dimensions: 19 mm diameter x 89 mm length
- Operating Environment: 0-70°C (no water cooling), optional water or air cooling available
- Response Time: 150 ms
- Laser sight accessory available for alignment, wavelength 630-670 nm, max distance 9.1 m
Buy the Buy Omega Infrared Temperature Sensor Part Number OS136A1V2 Online
Purchase the Omega OS136 infrared temperature sensor online today for reliable, non-contact temperature measurements ideal in confined or demanding environments. This compact stainless steel transmitter features accurate readings from -18 to 538°C, fixed emissivity of 0.95, and multiple analog outputs including 4-20 mA, voltage, or thermocouple. Its rugged NEMA 4 (IP66) rated housing withstands harsh conditions, making it a versatile choice for industrial heating, cooling, or process monitoring. Complete with mounting nuts, shielded cable, and manual, it guarantees quick setup and dependable operation.
Order your Omega Series OS136 infrared temperature sensor with fixed 0.95 emissivity today and ensure fast, accurate temperature measurements in harsh environments.
