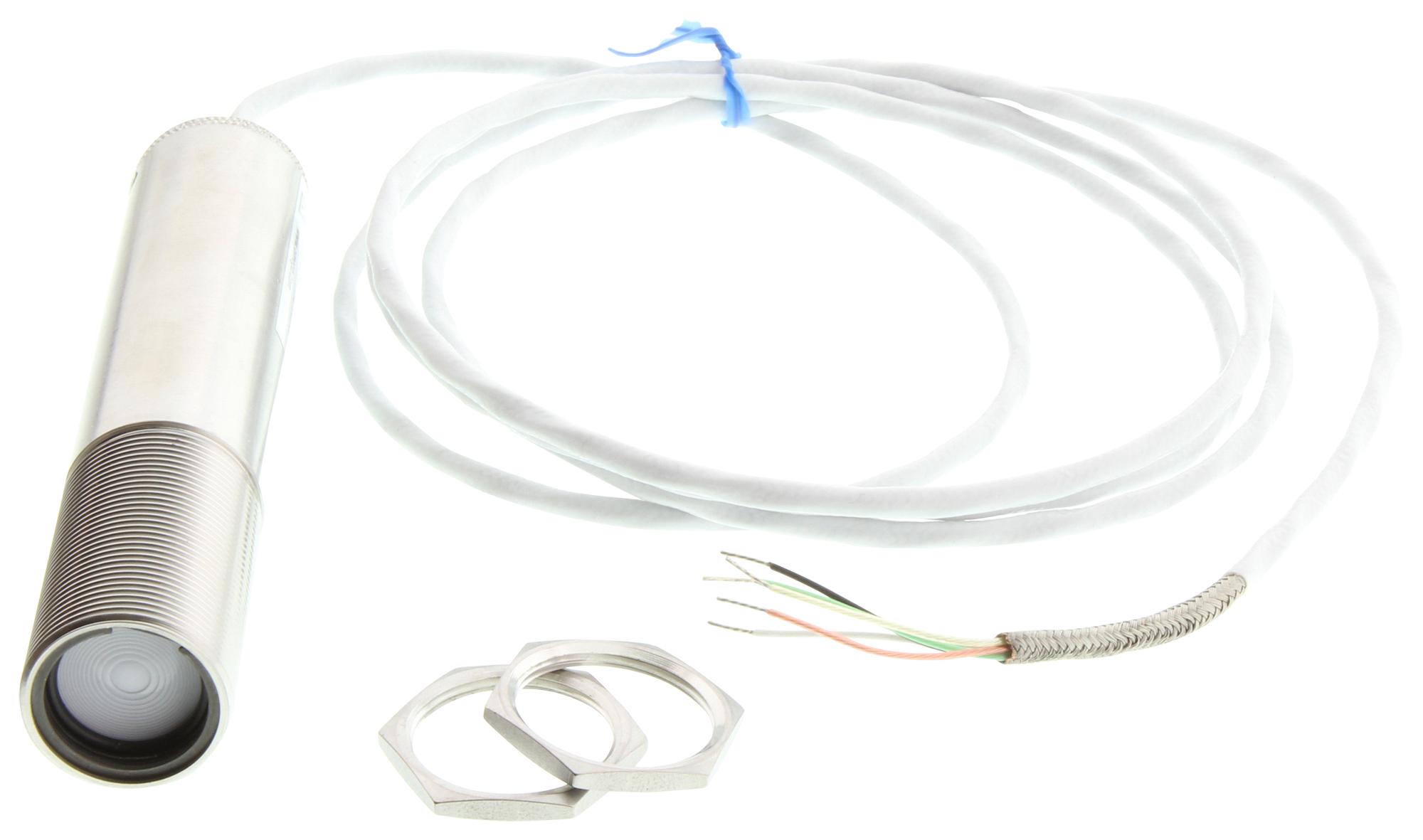

OMEGA OS137A1MA infrared temperature sensor
The compact infrared temperature sensor and transmitter model OS137A from Omega offers precise non-contact temperature measurement with adjustable emissivity, a 10:1 optical field of view, and multiple analog outputs including 4 to 20 mA and 0 to 10 Vdc. Packaged in a durable 25 mm stainless steel housing with NEMA 4 (IP65) rating, it features selectable temperature ranges up to 538°C, adjustable alarm setpoints, and a response time of 150 milliseconds. Ideal for industrial temperature monitoring, it comes with mounting accessories and a 6-foot shielded cable for easy integration.
OMEGA OS137A1MA infrared temperature sensor Specifications:
- Temperature Ranges: 0 to 100°C, -18 to 260°C, -18 to 538°C
- Accuracy: 3% of Rdg or 4.4°C (8°F) or 5.5°C (10°F) depending on range
- Repeatability: 1% rdg or 2°F (1°C)
- Field of View: 10 to 1
- Spectral Response: 5.5 to 14 microns
- Emissivity: 0.5 to 1.0, adjustable
- Response Time: 150 ms
- Outputs: 4-20 mA, 0-5 Vdc, 0-10 Vdc, 10 mV/°C, Type K thermocouple
- Power Supply: 12-24 Vdc @ 50 mA
- Operating Temperature: 0 to 70°C without cooling, 0 to 110°C with air cooling
- Housing: Stainless steel NEMA 4 (IP65)
- Dimensions: 25 mm diameter x 127 mm length
- Weight: 226 g
- Laser Sighting: Wavelength 630-670 nm, operating distance up to 9.1 m, max laser power less than 1 mW
Buy the Omega OS137A – Reliable Infrared Temperature Sensor for Industrial Applications
Purchase the Omega infrared temperature sensor OS137A online to ensure precise non-contact temperature measurement. Featuring adjustable emissivity, a durable stainless steel housing, and multiple analog and thermocouple outputs, it provides reliable performance in industrial settings. Easy to install with included mounting accessories and shielded cable, this sensor’s compact size and IP65 rating make it ideal for demanding environments. Enhance your temperature monitoring systems today with this high-performance infrared sensor for accurate, uninterrupted operation.
Order your Omega OS137A infrared transmitter with adjustable temperature range and multiple outputs today for dependable industrial temperature monitoring.
Frequently Asked Questions
Where can I buy OMEGA OS137A1MA?
You can click on the BUY or RFQ button to purchase OS137A1MA from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part OS137A1MA?
You can download the OS137A1MA datasheet or visit the OMEGA website for support.
Who is the manufacturer of OS137A1MA?
OMEGA
