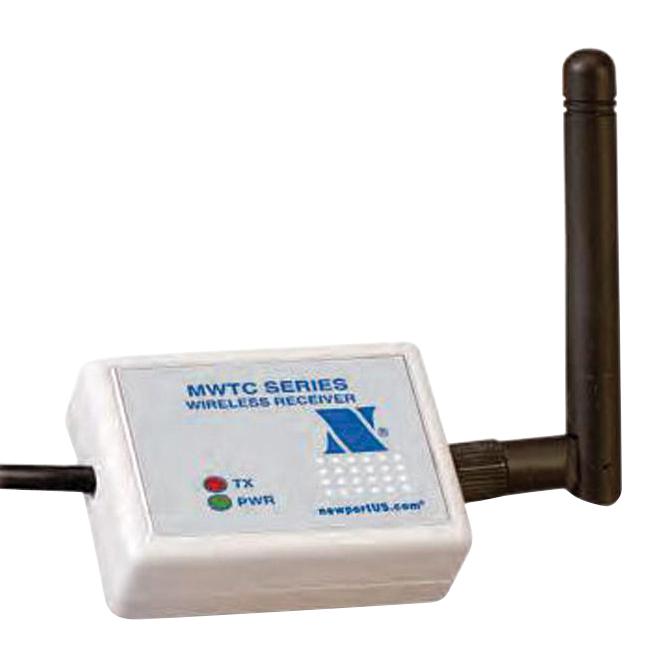

OMEGA MWTCREC1915 Wireless Thermocouple Data Logger
The MWTC wireless Smart Connector series offers a compact, battery-powered thermocouple connector capable of wireless transmission and recording of temperature data for various thermocouple types including J, K, T, E, R, S, B, C, and N. It features built-in cold junction compensation and linearization, records up to 65,400 process temperature points, and transmits data wirelessly up to 90 meters (300 feet) using ISM band frequencies. The device includes a USB interface, flexible operation modes, and supports multiple channels for efficient temperature monitoring in industrial and laboratory applications.
OMEGA MWTCREC1915 Wireless Thermocouple Data Logger Specifications:
- Thermocouple Types: J, K, T, E, R, S, B, C, N (factory set)
- Built-In Cold Junction Compensation and Linearization
- Data Points: 65,400 process temperature or 32,700 process and ambient temperature points
- Wireless Transmission Range: Up to 90 meters (300 feet) outdoors, 39 meters (130 feet) indoors
- Frequency: ISM 915 MHz in USA/Canada, 868 MHz in Europe
- RF Power Output: Less than 5 mW (7 dBm)
- Battery: AAA size, 1.5V Lithium (included), lifespan approximately 7.2 months at 1 sample/min
- Interface: USB (1 included cable), waterproof and rugged design
- Modes of Operation: Transmit, record, or transmit and record, based on software configuration
- Memory: 65,400 temperature data points or 32,700 process & ambient points
- Supported Channels: Up to 48 wireless channels transmitting to one receiver
- Accessories include: thermocouple sensor, mounting bracket, USB cable, operator's manual, and software CD
Buy the Newport Series MWTC Wireless Thermocouple Connector: MWTCREC1915
Experience seamless temperature monitoring with the Newport MWTC series wireless thermocouple connector, supporting various thermocouple types, large data storage, and reliable wireless transmission up to 90 meters. Ideal for industrial environments, it offers flexible operating modes, easy PC connectivity via USB, and long-lasting battery life, simplifying temperature data logging and analysis for technicians and engineers. Upgrade your temperature measurement system today with this versatile and durable wireless solution, available now online for quick delivery.
Buy Newport MWTCREC1915 wireless thermocouple connector now and enhance your temperature data logging with reliable wireless transmission and large storage capacity.
Frequently Asked Questions
Where can I buy OMEGA MWTCREC1915?
You can click on the BUY or RFQ button to purchase MWTCREC1915 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part MWTCREC1915?
You can download the MWTCREC1915 datasheet or visit the OMEGA website for support.
Who is the manufacturer of MWTCREC1915?
OMEGA
