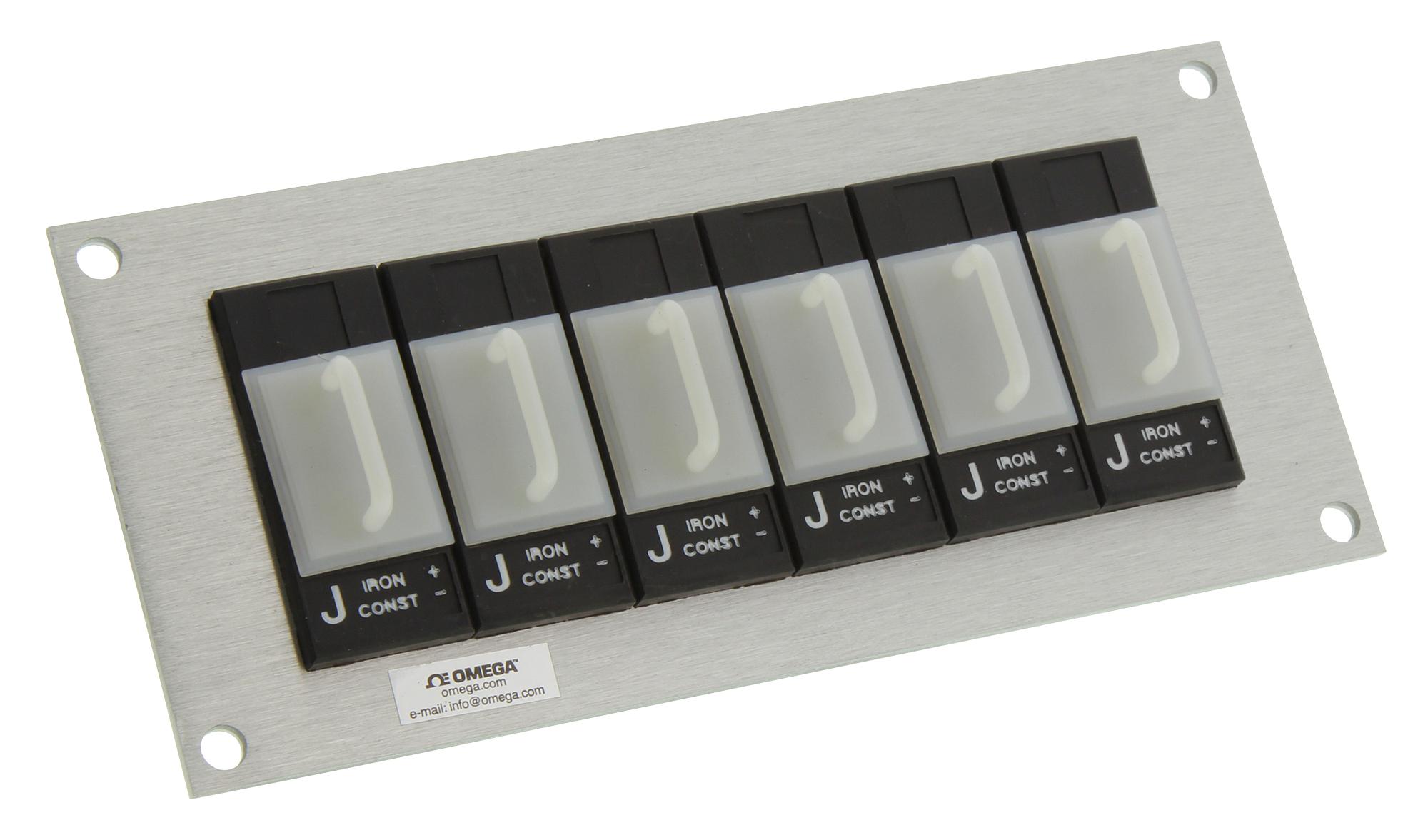

OMEGA SJP106J Thermocouple Connector Panel
Omega's SJP Series universal female connector panels are rugged, aluminum, snap-in assemblies designed for thermocouple connections. They feature color-coded, easy-to-install jacks with metal collet-type terminals accepting wires up to 14 AWG. Made from durable anodized aluminum with a brushed finish, these panels withstand temperatures up to 205°C (401°F) and resist corrosion. They are suitable for various thermocouple calibrations, with customizable configurations available, including color-coded panels. Perfect for precise, reliable thermocouple measurement and industrial testing applications.
OMEGA SJP106J Thermocouple Connector Panel Specifications:
- Material: Anodized aluminum with brushed finish
- Panel Thickness: 2.3 mm (0.09")
- Connector Type: Fully assembled snap-in female jacks
- Terminal Type: Collet-style, spring-loaded, accepting wires up to 14 AWG
- Maximum Service Temperature: 205°C (401°F)
- Hole Spacing: 4.8 mm (0.19") on both sides
- Panel Size: Customizable, standard includes rectangular cutouts
- Calibration Types: J, K, T, E, R, S, N, U
- Color coding: Available upon request, ANSI thermocouple calibration
- Mounting: Fits in a rectangular cutout with #8 screw holes
Buy the Buy Omega SJP Series Part Number SJP106J Online
Purchase Omega SJP Series thermocouple connector panels online for reliable, high-temperature thermocouple connections. Crafted from durable anodized aluminum with color-coded, snap-in jacks, these panels accept wires up to 14 AWG. They withstand temperatures up to 205°C, resist corrosion, and are easy to install. Suitable for various calibrations, including J, K, T, E, R, S, N, and U types, they provide accurate thermocouple measurement in industrial environments. Order now for quick delivery and professional-grade testing solutions.
Get Omega SJP106J today—built for precision and long-lasting durability, featuring high-impact plastic connectors and corrosion-resistant anodized aluminum panels.
Frequently Asked Questions
Where can I buy OMEGA SJP106J?
You can click on the BUY or RFQ button to purchase SJP106J from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SJP106J?
You can download the SJP106J datasheet or visit the OMEGA website for support.
Who is the manufacturer of SJP106J?
OMEGA
