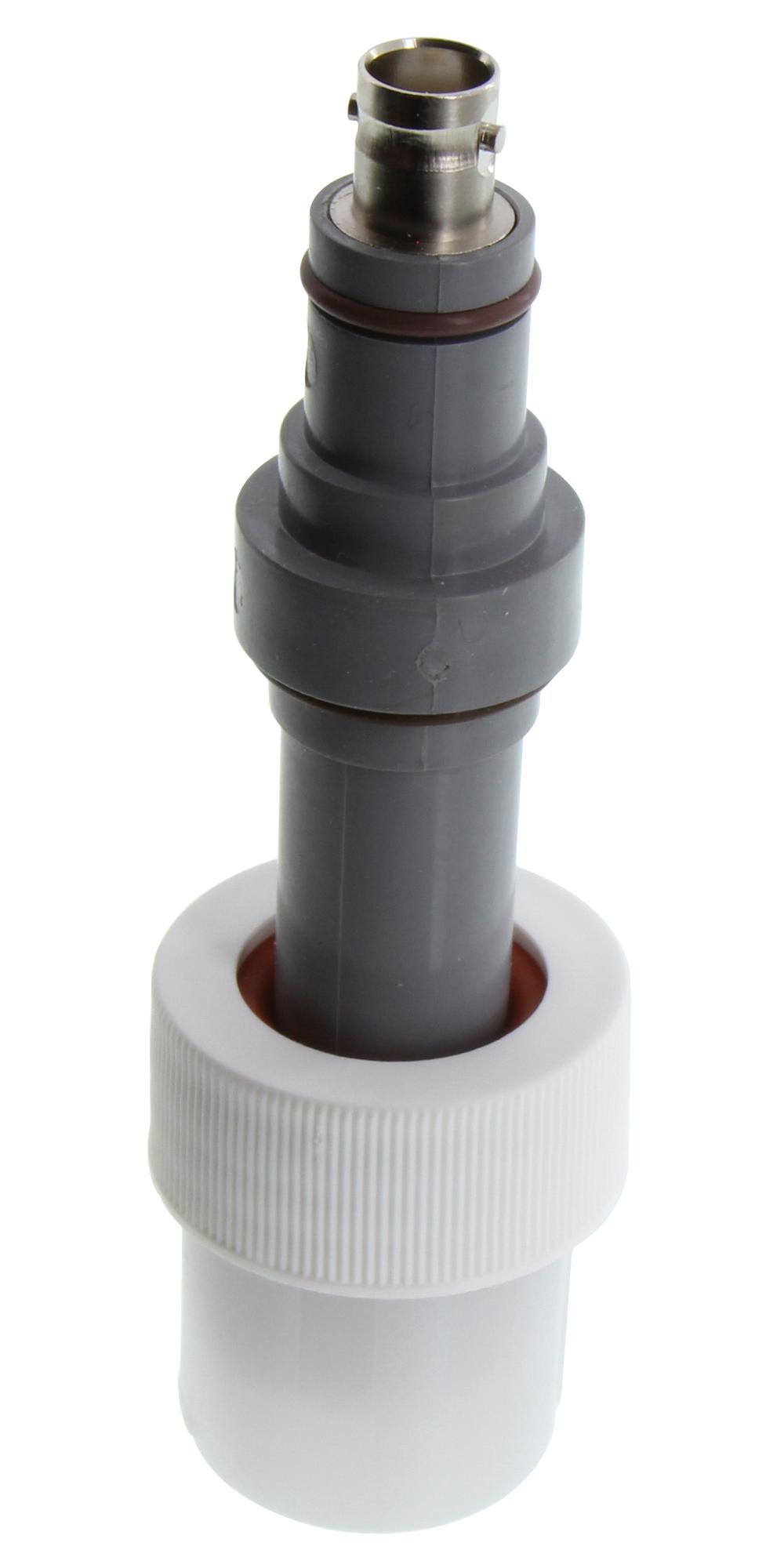

OMEGA PHE5460 Inline pH Electrode
The PHE-5460 in-line pH electrode features a flat, self-cleaning surface with an abrasion-free design, ideal for 3/4-inch CPVC pipes. Constructed from CPVC with high-temperature Acrylamide gel, it withstands temperatures up to 87°C (190°F). Suitable for turbulent flow conditions, it effectively measures pH in applications involving oily waste fluids, lime slurries, and emulsions, ensuring quick response and accurate readings. The electrode accepts a cable assembly with a gland mounted in a 3/4-inch NPT tee, making it suitable for flow shut-off maintenance and replacing threaded electrodes in industrial processes.
OMEGA PHE5460 Inline pH Electrode Specifications:
- Material: CPVC
- Maximum Temperature: 87°C (190°F)
- Operating Pressure: up to 6.89 bar (100 psig)
- Measurement Range: pH 0 to 14
- Construction: In-line flat surface with self-cleaning design
- Fitting: Gland-mounted in 3/4-inch NPT tee
- Cable Assembly: 3 meters (10 feet) with BNC connector
- Additional Options: HF fluoride resistant, Low conductivity, Ground loop
- Suitable for turbulent flow applications, oil waste fluids, lime slurries, emulsions
- Designed to replace threaded electrodes for flow shut-off maintenance
Buy the Buy Omega PHE-5460 Part Number PHE5460 Online
Purchase the Omega PHE-5460 inline pH electrode online today to experience quick response times, high precision in industrial environments, and durable construction suitable for high-temperature processes. Its CPVC design with self-cleaning surface ensures minimal maintenance and accurate readings in turbulent flow conditions. Ideal for applications involving oily waste fluids, lime slurries, and emulsions, this electrode offers exceptional performance and reliability. Order now to improve your process control with ease and confidence from a trusted supplier.
Order your Omega PHE-5460 inline pH electrode today and ensure reliable, high-accuracy pH measurement in high-temperature pipe applications.
