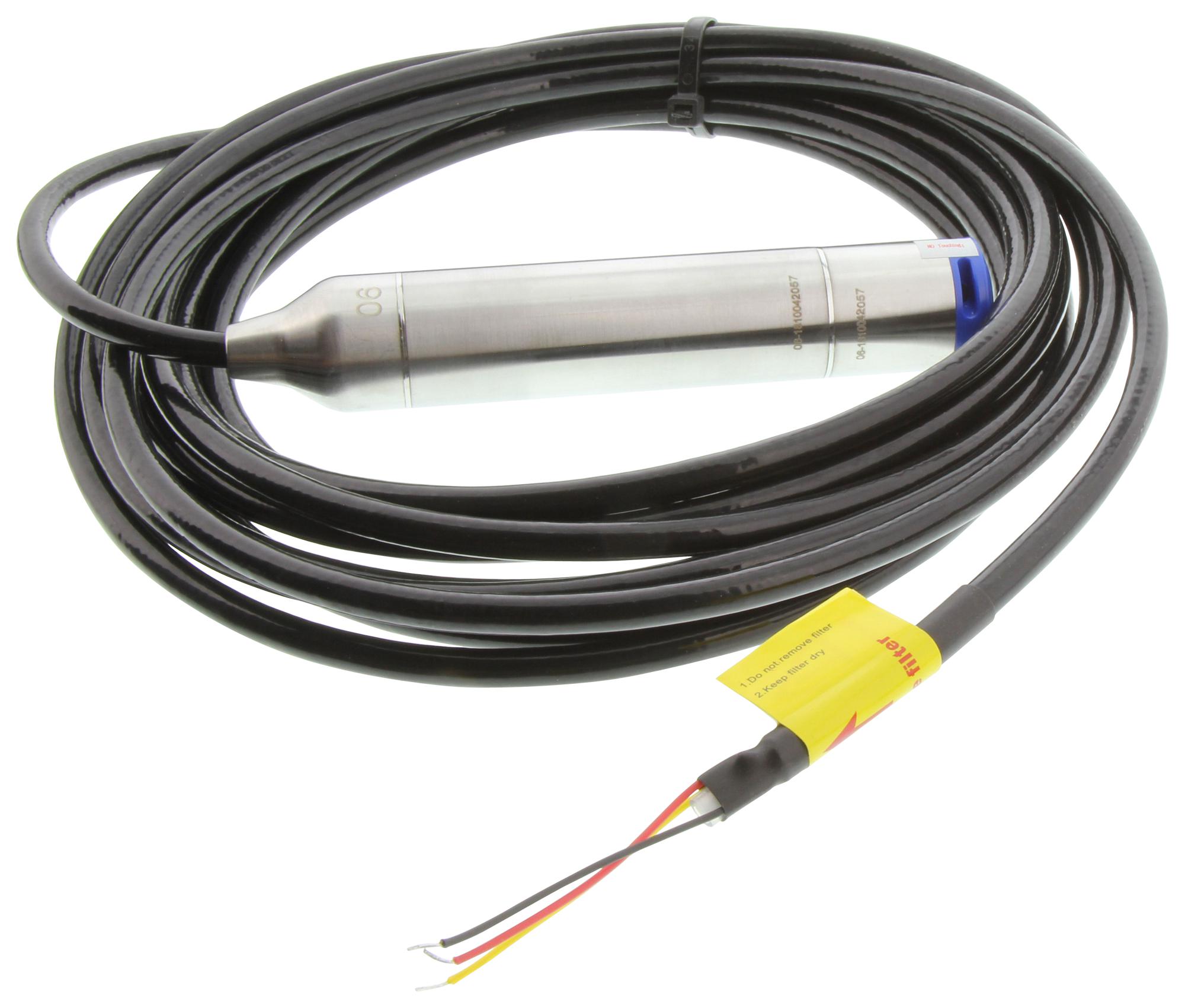

OMEGA PX633A2250GI Submersible Pressure Transmitter
The PX633 high-accuracy submersible level transmitter is designed for demanding hydrostatic and pressure measurement applications. Featuring advanced microprocessor technology, it offers linearity and temperature error compensation for precise readings. Its rugged stainless steel body with a dual seal and full potting ensures long-term reliability in harsh environments. The transmitter includes transient voltage protection and an innovative cable seal system that maintains water-tight integrity. With various pressure ranges up to 300 psi and accuracy options from 0.1% to 0.5% of full scale, it is ideal for submersion in turbulent media, making it suitable for high-demand level monitoring.
OMEGA PX633A2250GI Submersible Pressure Transmitter Specifications:
- Accuracy: 0.01% FS NLHR (PX633A1), 0.25% FS NLHR (PX633A2), 0.50% FS NLHR (PX633A5)
- Long Term Stability: +0.2% FS/year
- Operating Temperature: -10°C to 70°C (14°F to 158°F)
- Storage Temperature: -30°C to 80°C (-22°F to 176°F)
- Supply Voltage: 10.5 to 55 VDC
- Output Signal: 4 to 20mA DC
- Maximum Current: 20.8mA
- Protection Class: IP68
- Electrical Connection: PUR cable, outer diameter 7.5+0.2mm
- Fill Fluid: Silicon oil
- Sensor Seal: O-ring, FMK
- Material: 316 stainless steel (diaphragm, side cover)
- Vibration Resistance: IEC61298-3/GB/T 18271.3; 20g (5-2000Hz, max +3mm)
Buy the Buy Omega PX633A2250GI Pressure Transmitter Part Number PX633A2250GI Online
Purchase the Omega PX633A2250GI submersible pressure transmitter online today to experience high precision, robust construction, and dependable long-term performance. Its advanced microprocessor technology ensures linearity and temperature compensation, providing accurate measurements in submerged or turbulent media. Designed with a rugged stainless steel body, full potting, dual seal, and transient voltage protection, this device is perfect for demanding applications. Whether monitoring water levels or industrial fluids, buying online guarantees fast delivery and access to technical support for reliable, high-quality level measurement solutions.
Buy Omega PX633A2250GI high-accuracy submersible pressure transmitter now and ensure reliable, precise level measurement in demanding environments.
