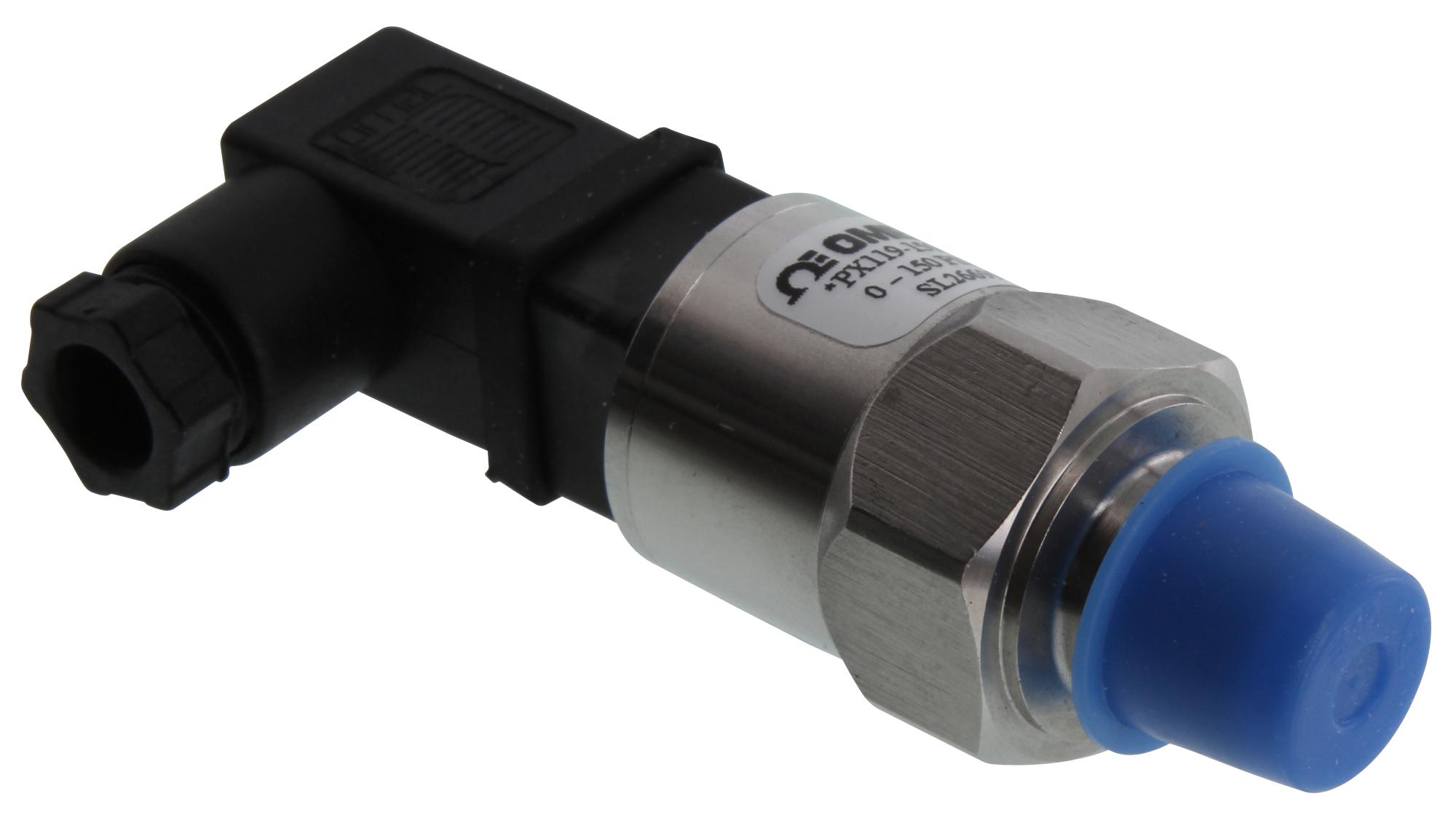

OMEGA PX1195KGI Pressure Transmitter
The PX119 series pressure transmitters are compact, rugged, and highly accurate devices suitable for material handling, industrial, and mobile applications. Constructed from a single piece of stainless steel, they feature a piezoresistive ceramic sensor with ASIC signal conditioning, ensuring excellent thermal compensation and reliability. Offering measurement ranges from 15 to 5000 psi (345 bar), they provide 4 to 20 mA output, IP65 ingress protection, and are designed for space-constrained environments. These transmitters deliver long-term stability, low drift, and dependable performance across diverse operating temperatures.
OMEGA PX1195KGI Pressure Transmitter Specifications:
- Measurement Range: 15 to 5000 psi (345 bar)
- Output: 4 to 20 mA
- Construction: All stainless steel body, machined from a single piece
- Sensor Type: Piezoresistive ceramic sensor with ASIC signal conditioning
- Ingress Protection: IP65
- Response Time: 1 ms
- Temperature Range: -40 to 135°C (-40 to 257°F)
- Vibration Resistance: Yes, suitable for mobile applications
- Proof Accuracy: 0.50% BFSL
- Long Term Drift: <0.3% FS at 25°C (77°F)
- Dimensions: Approximately 23.5 mm diameter, 30 mm length
- Electrical Connection: Mini DIN, DIN 43650
- Process Connection: Male NPT
- Weight: 70 g (0.15 lb)
Buy the Omega Series PX119 Pressure Transmitter: 15 to 5000 psi
Enhance your industrial measurement systems with the rugged and compact Omega PX119 pressure transmitter. Designed for accuracy and durability, it offers measurement ranges from 15 to 5000 psi, built with all stainless steel construction for reliable performance. The device features 4-20 mA output, IP65 protection, and quick response time, making it suitable for harsh environments in mobile, material handling, and industrial applications. Purchase online today to ensure precise pressure monitoring with long-lasting reliability.
Get Omega PX119 pressure transmitter today—built for precision, rugged durability, and ideal for space-constrained industrial environments.
