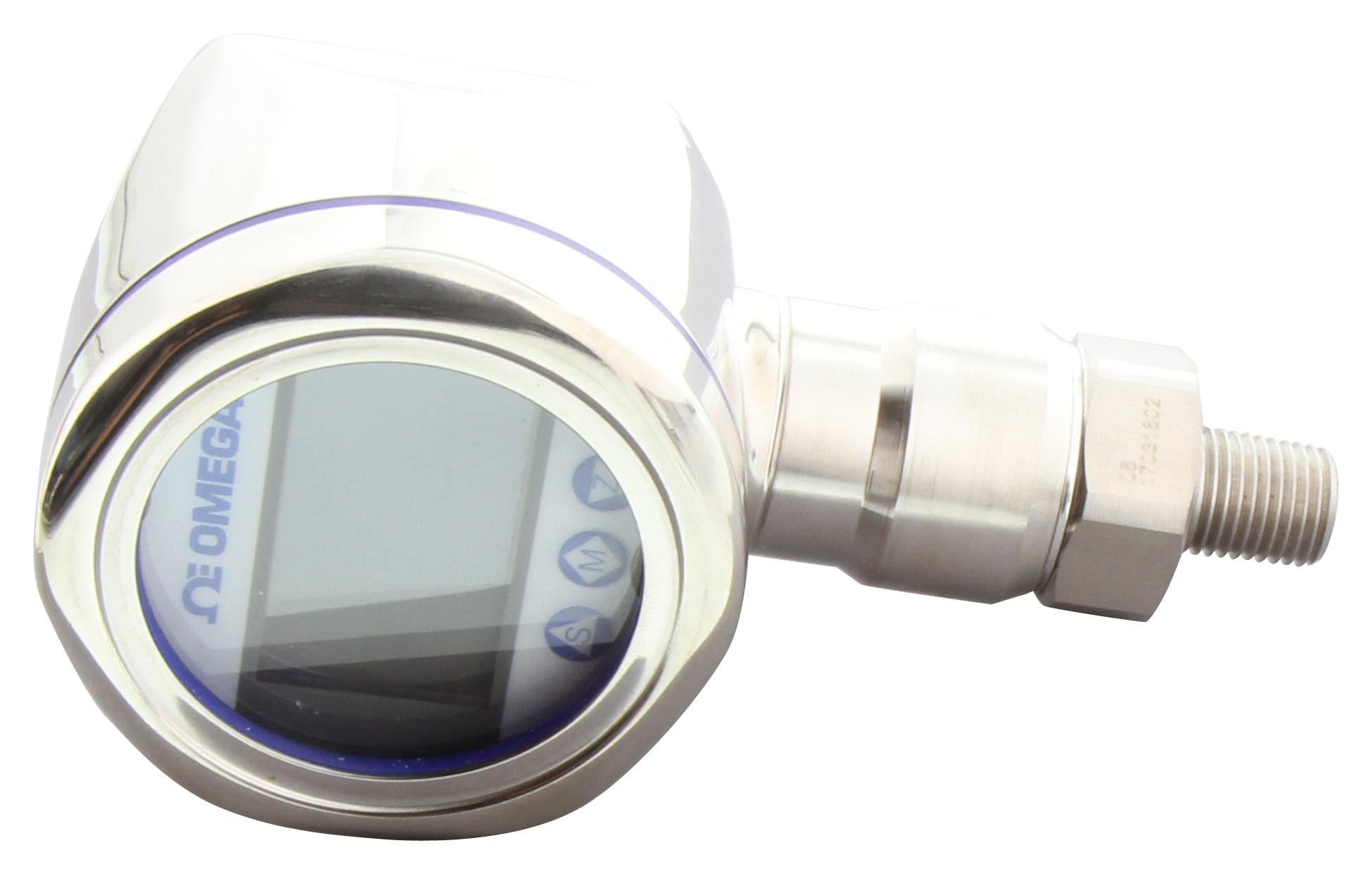

OMEGA PX3005005AI Pressure Transmitter
The OMEGA PX3005 is a compact, high-accuracy, rangeable pressure transmitter suitable for industrial process automation, hydraulic systems, pumps, and tank level monitoring. Equipped with proven MEMs piezoresistive sensors and a rugged 316 stainless-steel enclosure rated IP67, it delivers reliable, precise measurements with a ±0.2% URL accuracy. The device features a 5-digit backlit LCD for clear process variable display, configurable measurement units, and adjustable zero/span from -100% to 100% FS. Its durable design withstands washdown environments, making it ideal for demanding industrial applications.
OMEGA PX3005005AI Pressure Transmitter Specifications:
- Accuracy: ±0.2% URL
- Environmental Rating: IP67
- Wetted Parts: 316 stainless steel
- Display: 5-digit backlit LCD
- Power Supply: 10.5 to 55VDC
- Power Consumption: 500mW (20.8mA at 24VDC)
- Operating Temperature: -20 to 70°C
- Storage Temperature: -40 to 85°C
- Media Temperature: -40 to 120°C
- Electrical Connection: 4 pin M12
- Output Signal: 4-20mA two-wire
- Process Connection: 1/4"-18NPT (M) stainless steel
- Environmental Rating: IP67
- Vibration Resistance: 20g (5-2000Hz) <0.1% URL
- Mounting Position: Any, with calibration correction
- Measurement Range: 0 to 15,000 psi depending on model
Buy the Buy OMEGA Pressure Transmitter PX3005 Part Number PX3005005AI Online
Order the OMEGA PX3005 pressure transmitter online today to enhance your industrial measurement systems. Featuring rugged stainless steel construction, IP67 protection, and high accuracy, this device is designed for demanding environments. Its configurable ranges and display options make it versatile for hydraulic, process control, and tank level applications. With a compact size and reliable performance, the PX3005 ensures precise pressure monitoring, quick setup, and long-term stability. Purchase now for professional-grade measurement with easy online convenience.
Get OMEGA PX3005 pressure transmitter today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy OMEGA PX3005005AI?
You can click on the BUY or RFQ button to purchase PX3005005AI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX3005005AI?
You can download the PX3005005AI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX3005005AI?
OMEGA
